Quick Release Coupling - Push Connect: Connect

  1. To connect.
    • Support the male stub.
    • Push the connector fitting onto the stub until an audible click can be heard.
    • Check the connection by a gentle tug test.

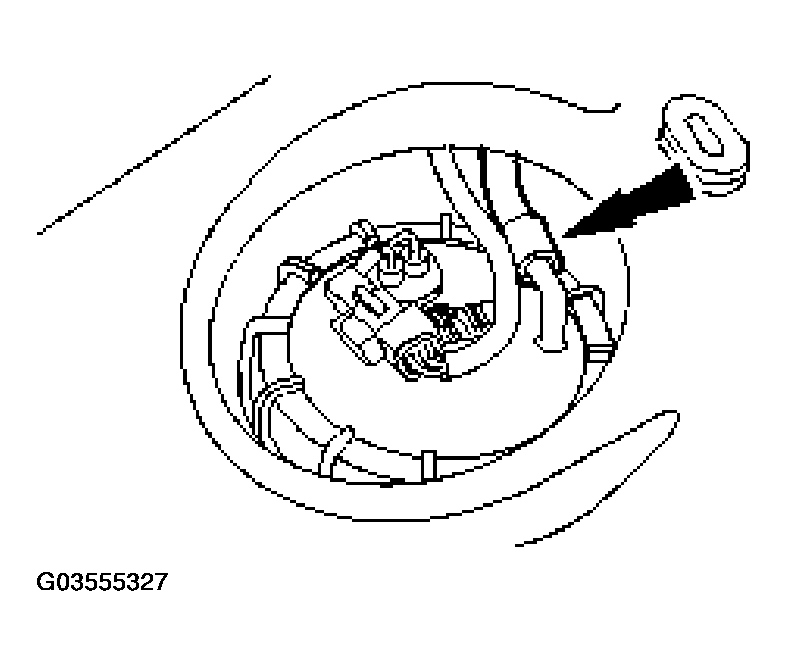

      Fig 1: Locating Push Connect Fitting
      G03555327Courtesy of JAGUAR CARS, INC.
