Speed Control Sensor: Removal

Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
Remove the radiator splash shield. For additional information, refer to RADIATOR SPLASH SHIELD .
Disconnect the speed control sensor electrical connector.

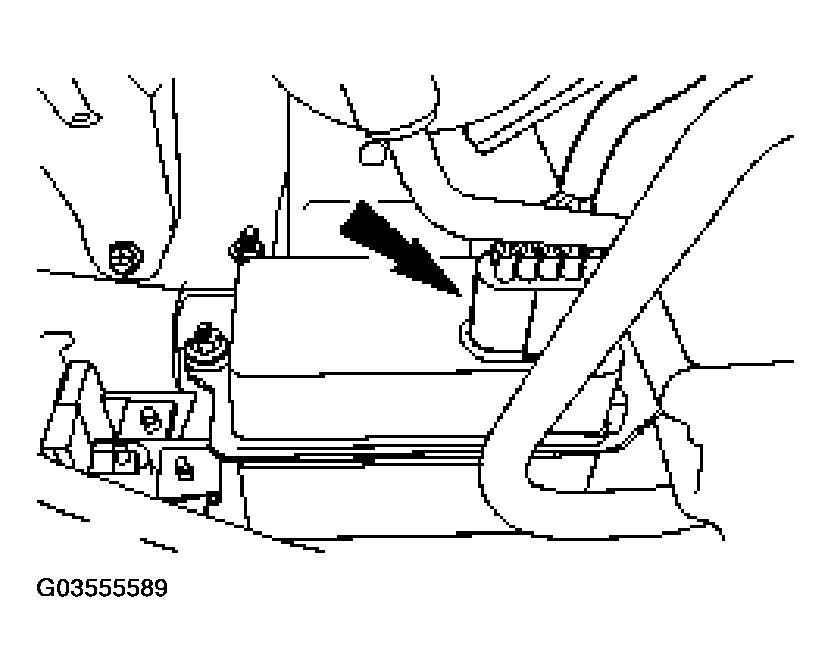

Fig 1: Disconnecting Speed Control Sensor Electrical Connector
Courtesy of JAGUAR CARS, INC.

Vehicles built up to VIN:H18680

Remove the left-hand front bumper access cover.

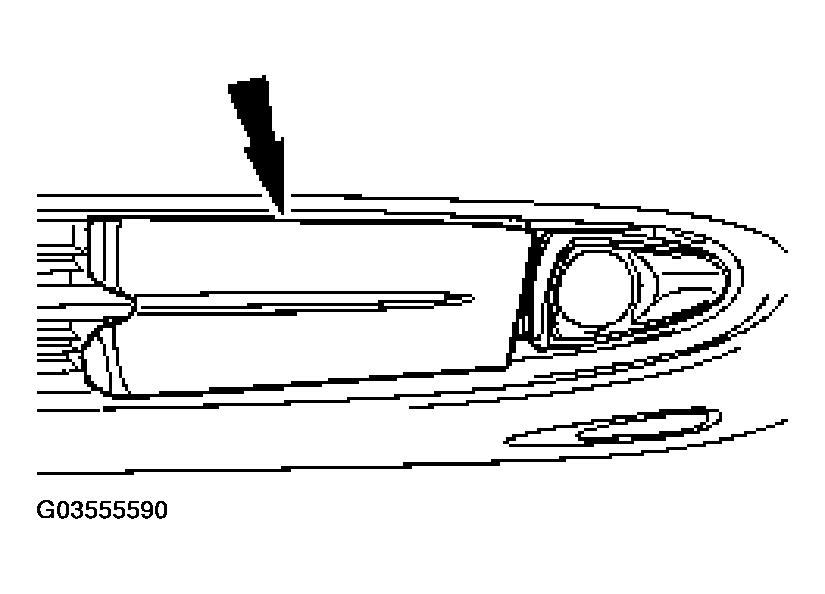

Fig 2: Removing Left-Hand Front Bumper Access Cover
Courtesy of JAGUAR CARS, INC.

All vehicles

Remove the speed control sensor.
- Remove the bolts.

  Fig 3: Removing Speed Control Sensor
  Courtesy of JAGUAR CARS, INC.
Remove the speed control sensor retaining bracket.
Remove the nuts.

Fig 4: Removing Speed Control Sensor Retaining Bracket
Courtesy of JAGUAR CARS, INC.
