Speed Control Module Alignment - VIN Range: G00442->H18679

Special Service Tools

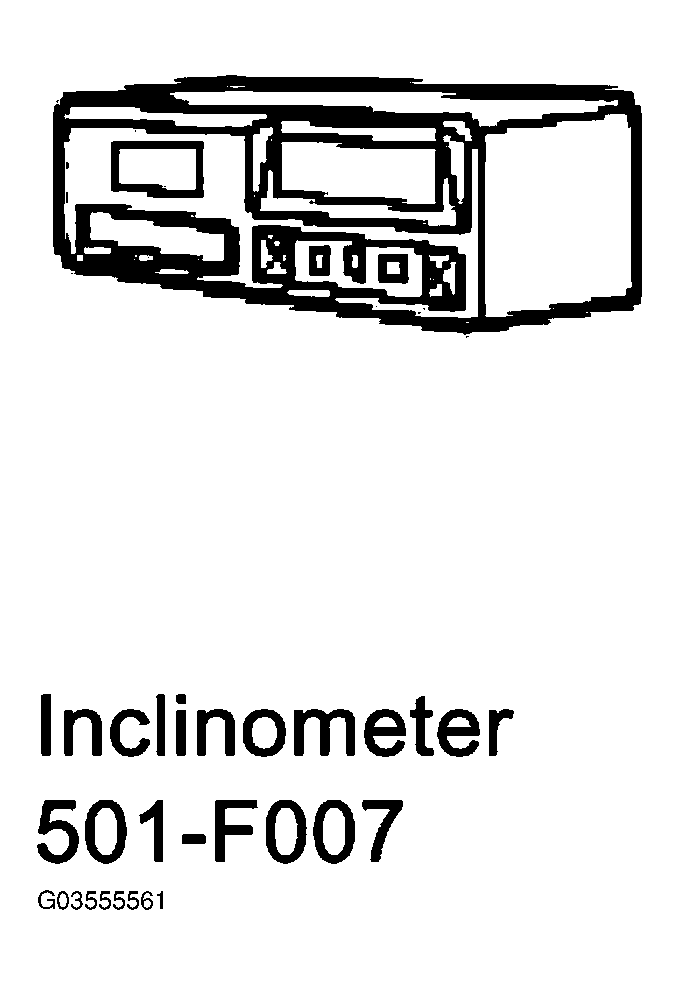

Fig 1: Identifying Special Service Tools

Courtesy of JAGUAR CARS, INC.

NOTE: Make sure the vehicle is positioned on level ground such as the headlamp alignment area.
1. Level the vehicle ride height. For additional information, refer to the Jaguar approved diagnostic system.
2. Remove the left-hand front bumper access cover.

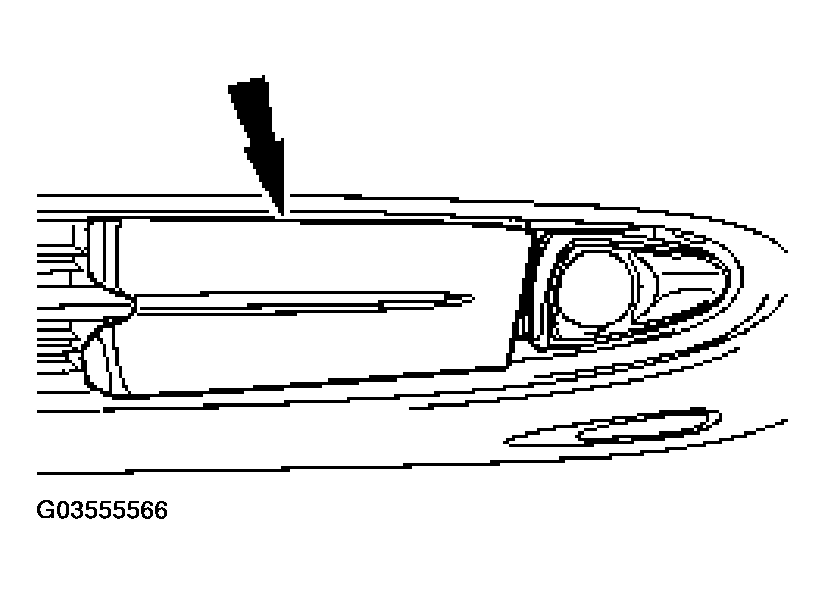

   Fig 2: Removing Left-Hand Front Bumper Access Cover

   Courtesy of JAGUAR CARS, INC.
3. Using the special tool, check the speed control module vertical levelling.

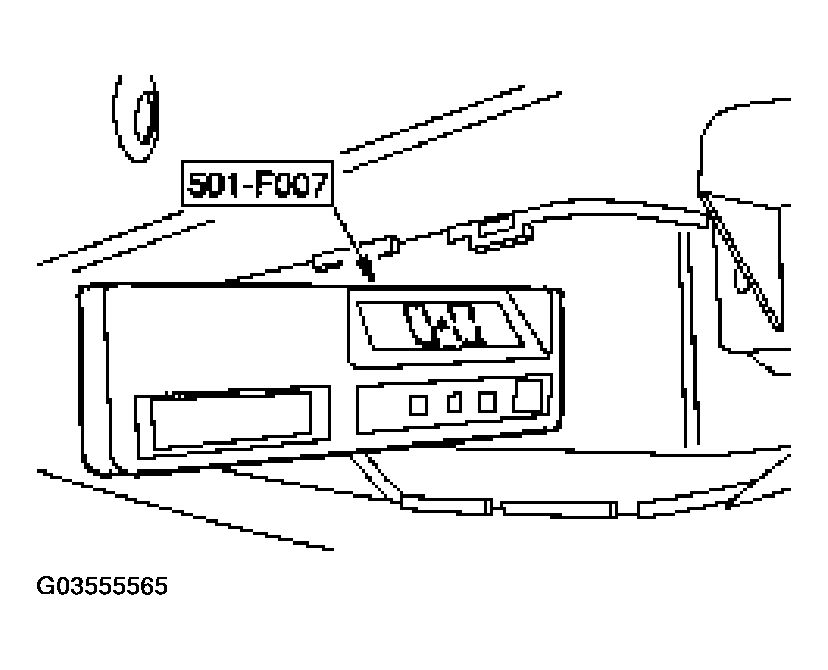

   Fig 3: Checking Speed Control Module Vertical Levelling

   Courtesy of JAGUAR CARS, INC.
4. Level the speed control module.
   • Rotate the speed control module levelling bolt to achieve a reading of zero degrees +/-0.75°.

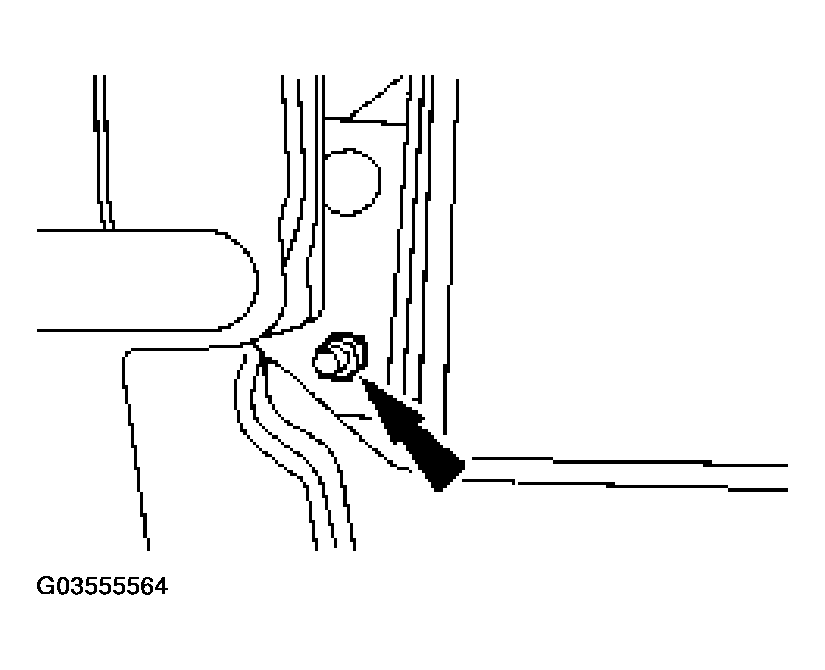

     Fig 4: Identifying Speed Control Module Levelling Bolt

     Courtesy of JAGUAR CARS, INC.
5. Using the special tool, check the speed control module vertical levelling.
   Fig 5: Checking Speed Control Module Vertical Levelling

   Courtesy of JAGUAR CARS, INC.
6. Install the left-hand front bumper access cover.
   Fig 6: Installing Left-Hand Front Bumper Access Cover

   Courtesy of JAGUAR CARS, INC.
7. Carry out the speed control module calibration procedure. For further information, refer to the Jaguar approved diagnostic system.
