Speed Control Module: Removal

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Make sure the audio unit keycode is available before disconnecting the battery ground cable.

Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
Remove the driver side instrument panel lower trim.

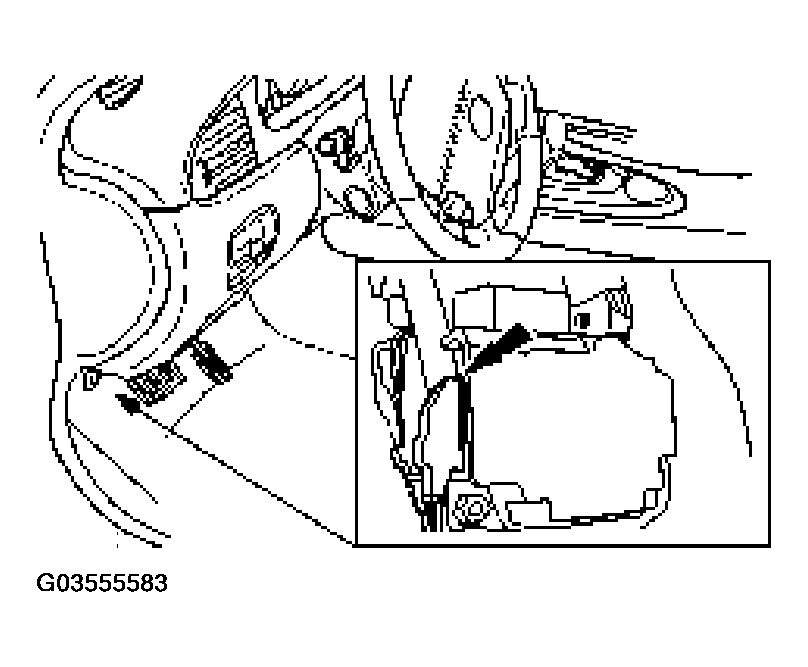

Fig 1: Removing Driver Side Instrument Panel Lower Trim
Courtesy of JAGUAR CARS, INC.
Remove the instrument panel trim.

Fig 2: Removing Instrument Panel Trim
Courtesy of JAGUAR CARS, INC.
Disconnect the speed control module electrical connector.

Fig 3: Disconnecting Speed Control Module Electrical Connector
Courtesy of JAGUAR CARS, INC.
Remove the speed control module.
- Remove the speed control module retaining nuts.

  Fig 4: Removing Speed Control Module Retaining Nuts
  Courtesy of JAGUAR CARS, INC.
