Torque Specifications

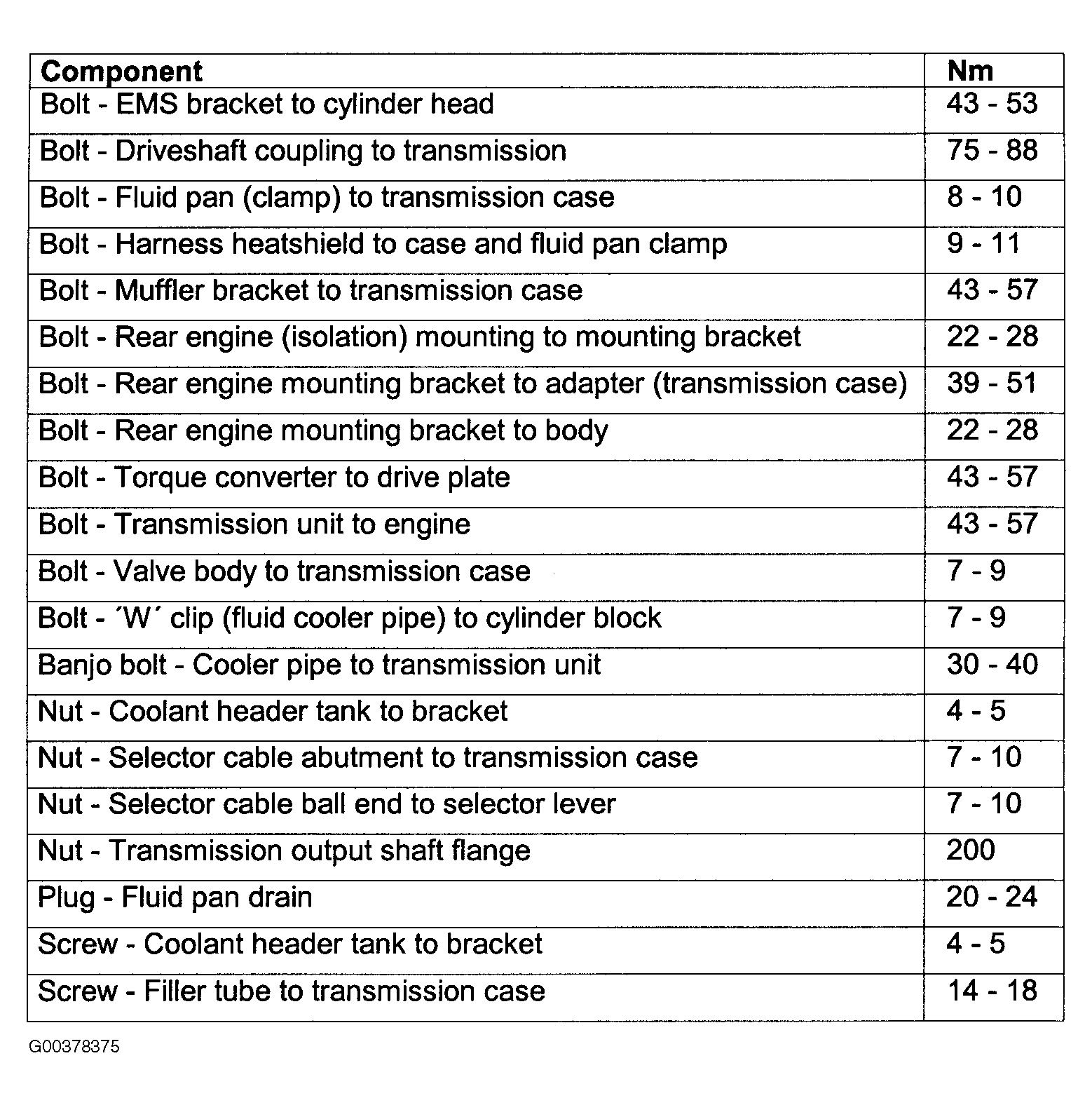

Fig 1: Torque Specification Table (Supercharged Vehicles)

G00378375

Courtesy of JAGUAR CARS, INC.
