Connector Identification

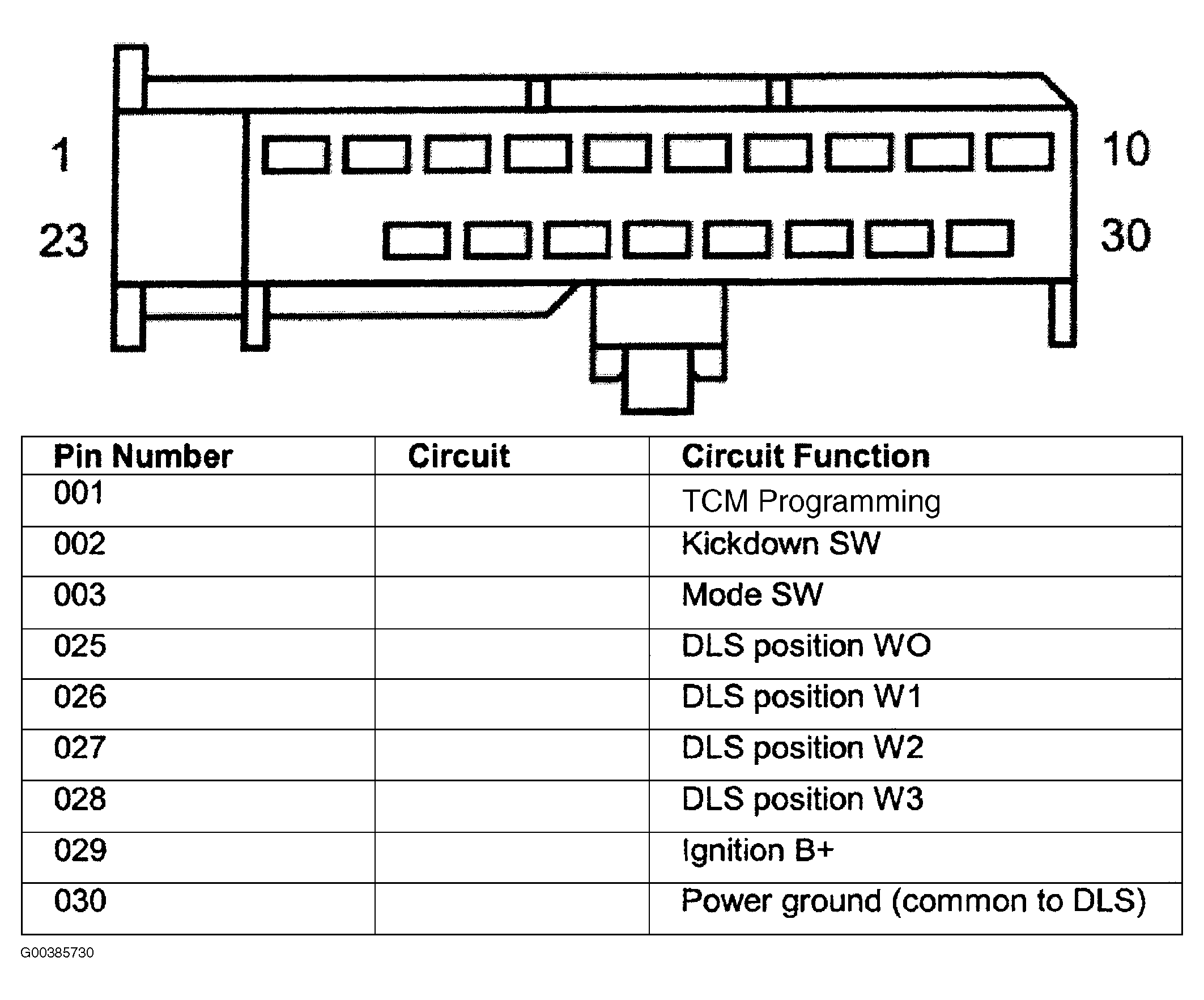

Fig 1: Identifying Connector EM73 Terminals
G00385730Courtesy of JAGUAR CARS, INC.
Fig 2: Identifying Connector EM72 Terminals
G00378391Courtesy of JAGUAR CARS, INC.
Fig 3: Identifying Connector FC100 Terminals
G00378392Courtesy of JAGUAR CARS, INC.
Fig 4: Identifying Connector GB001 Terminals
G00378393Courtesy of JAGUAR CARS, INC.
Fig 5: Identifying Connector GB002 Terminals
G00378394Courtesy of JAGUAR CARS, INC.
