DTC P730: Incorrect Gear Ratio
DTC P730: Incorrect Gear Ratio
NOTE:

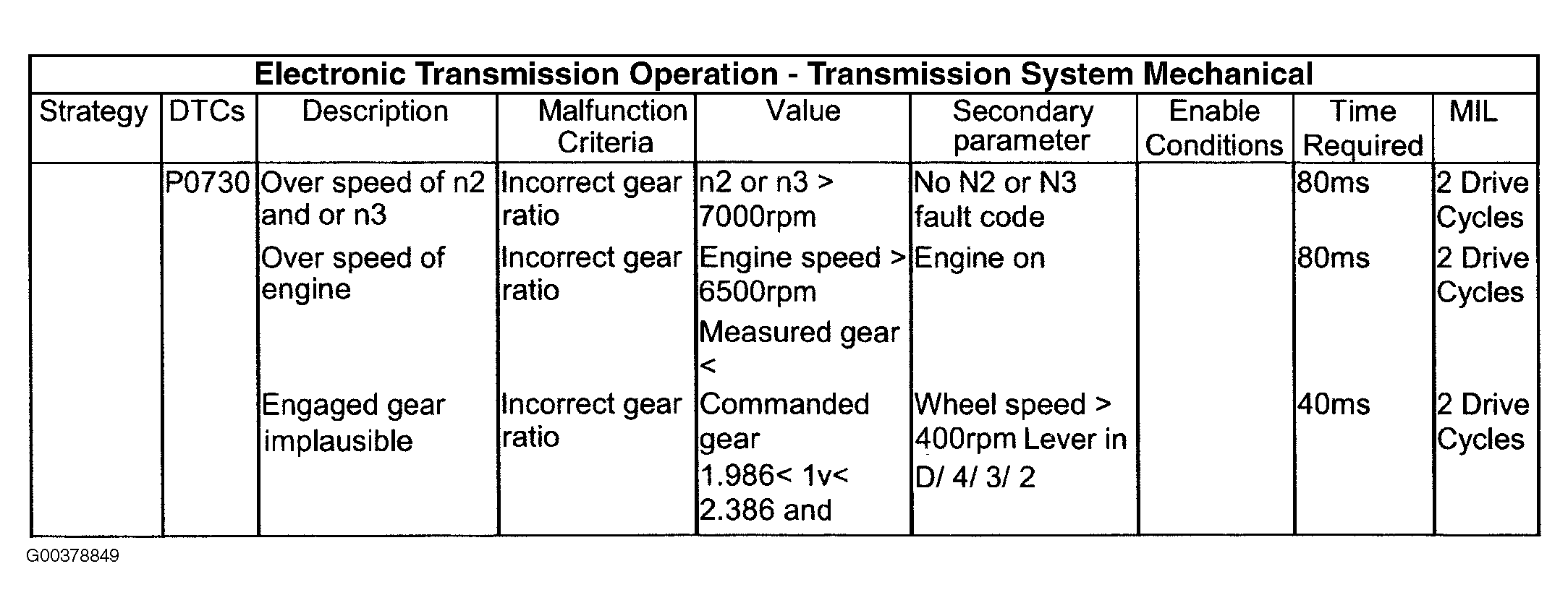

For additional information, see
Figure
and/or
Figure
.
POSSIBLE SOURCE(S):
Transmission oil lever low.
Transmission mechanical/hydraulic failure.
ACTION(S) TO TAKE:
Go to
PINPOINT TEST H
.
