DTC P0780: Shift Malfunction
DTC P0780: Shift Malfunction
NOTE:

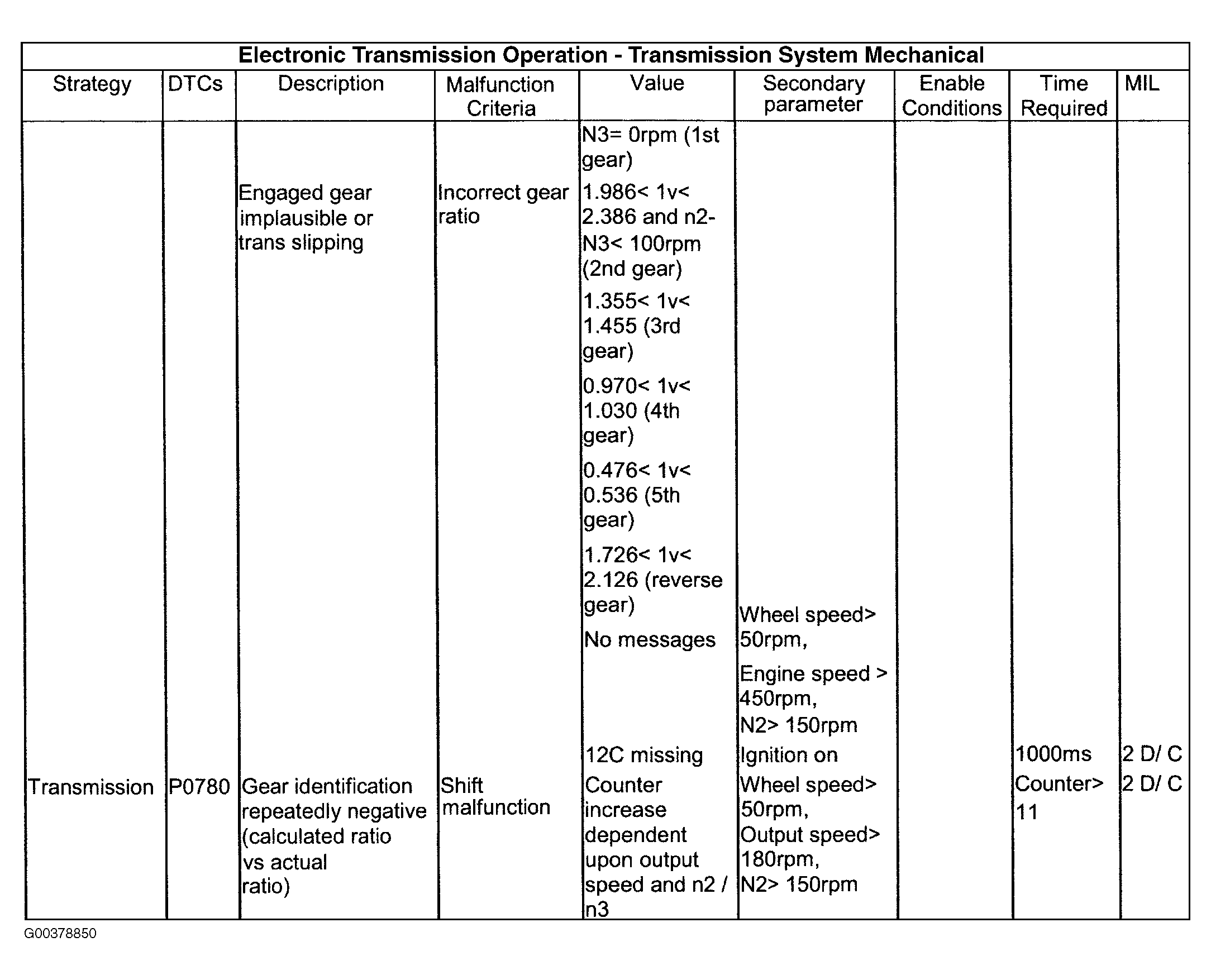

For additional information, see
Figure
and/or
Figure
.
POSSIBLE SOURCE(S):
Valve body assembly faulty.
Transmission faulty.
ACTION(S) TO TAKE:
Go to
PINPOINT TEST H
.
