Air Conditioning Control Module (003) Connector End View

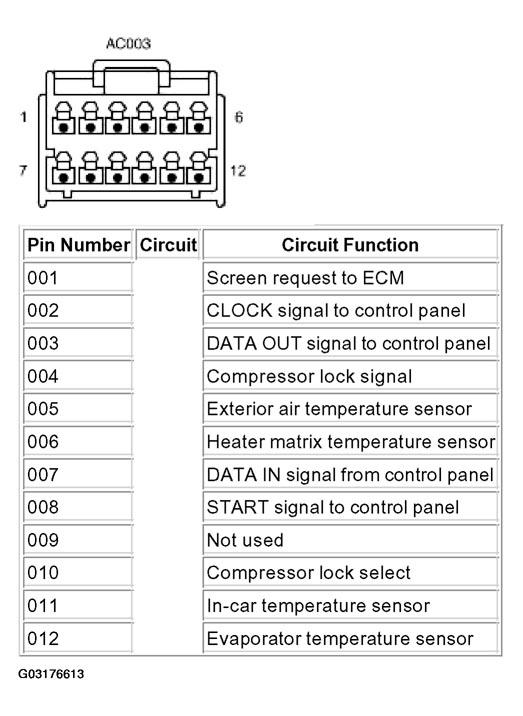

Fig 1: Air Conditioning Control Module (003) Connector End View

G03176613

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
