Solar Sensor

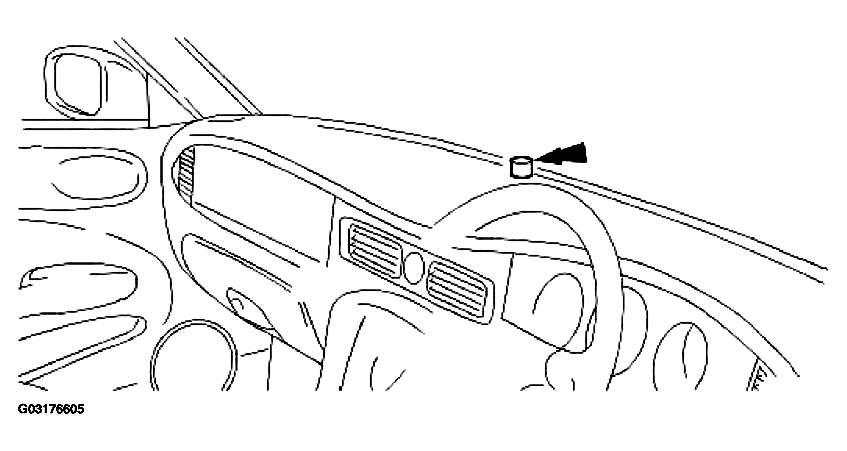

Fig 1: Identifying Solar Sensor
G03176605Courtesy of JAGUAR CARS, INC.

The solar sensor is mounted on the top surface of the fascia between the defrost outlets.

The sensor is a photo-diode which is calibrated to measure direct sunlight. It provides an output signal to the A/CCM which automatically reduces air temperature and increases fan speed (airflow volume) to compensate for solar heating.
