Passenger Seat Module (PSM): Removal

  1. Disconnect the battery ground cable. Refer to BATTERY DISCONNECTION PROCEDURE .
  2. Detach the passenger seat module (PSM) and mounting bracket.

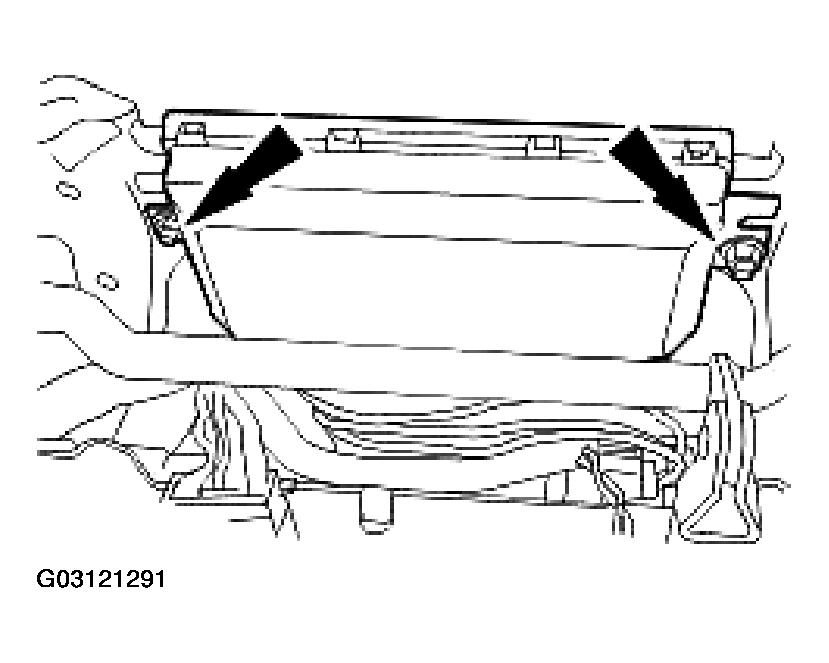

    Fig 1: Detaching Passenger Seat Module (PSM) And Mounting Bracket
    G03121291
  3. Remove the PSM and mounting bracket.
    • Disconnect the electrical connectors.

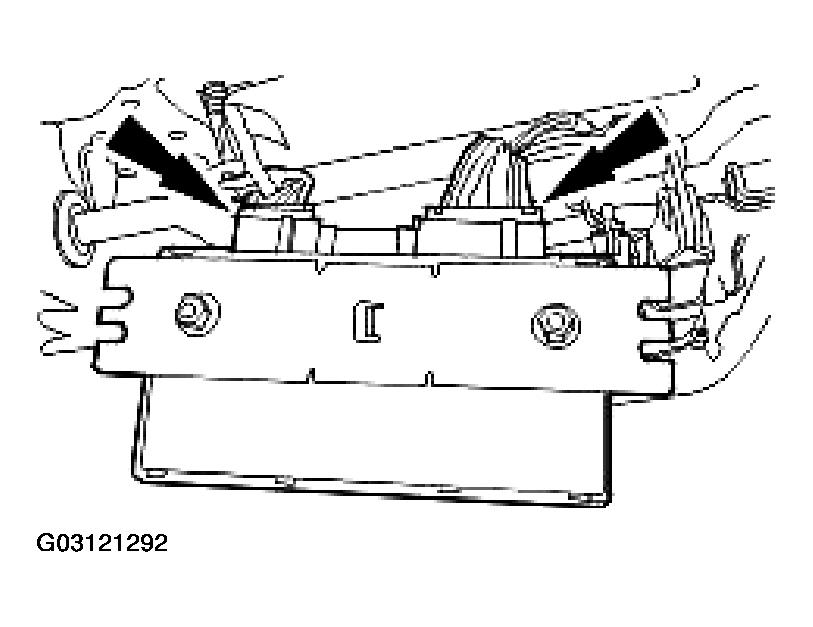

      Fig 2: Disconnecting Electrical Connectors
      G03121292
  4. Remove the PSM.

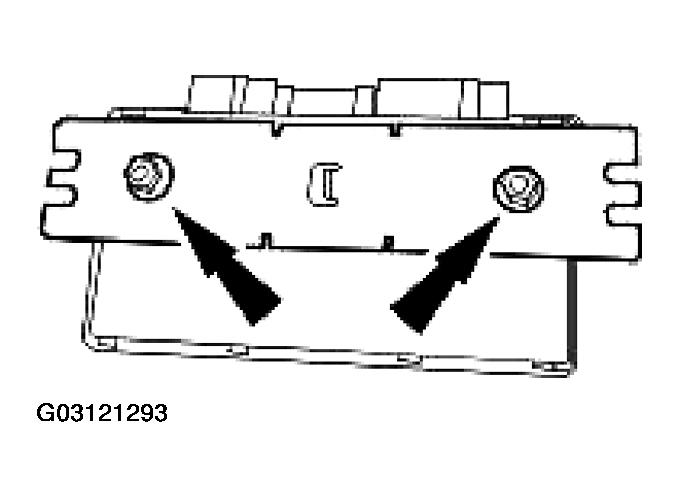

    Fig 3: Removing PSM
    G03121293
