Transmission Oil Temperature
Transmission Oil Temperature

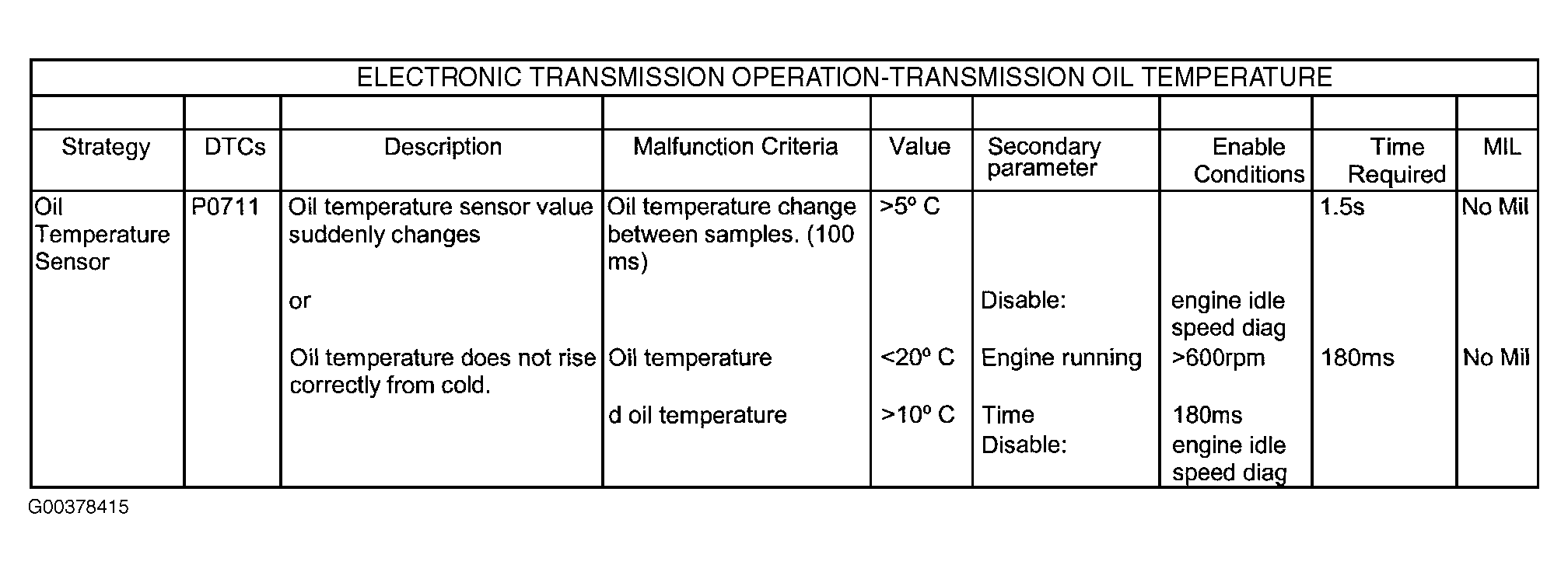

Fig 1: Transmission Oil Temperature Table (1 Of 2)
Courtesy of JAGUAR CARS, INC.

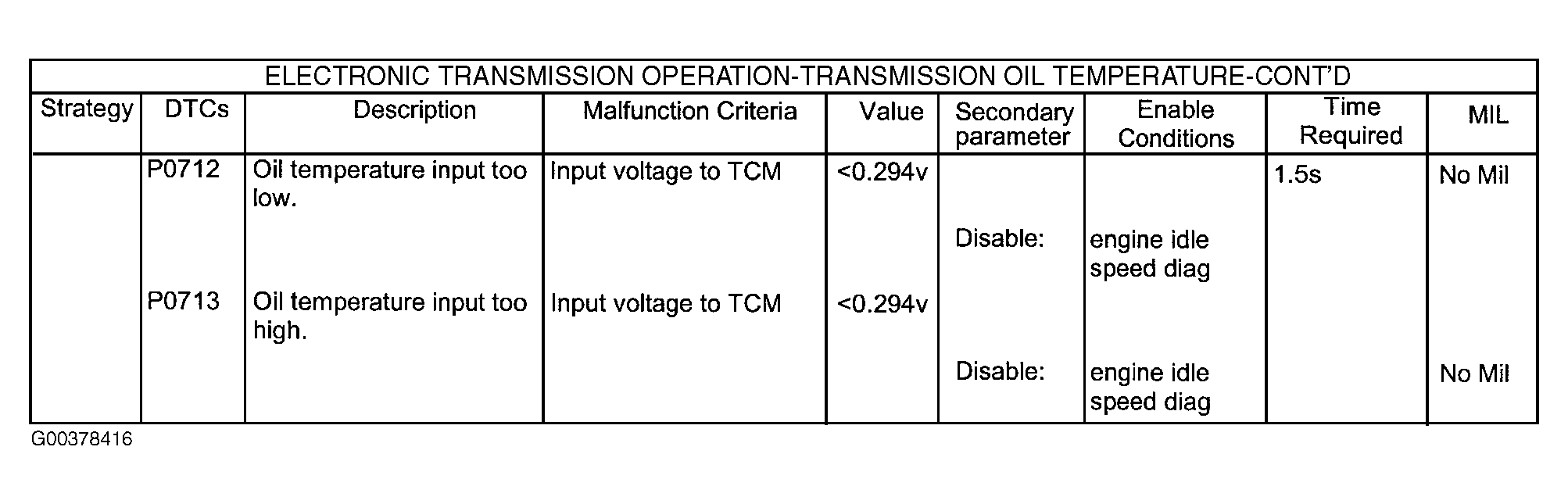

Fig 2: Transmission Oil Temperature Table (2 Of 2)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
