Driver Seat Module (DSM) - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
  1. Remove the front seat. Refer to Seating .
    GJ0003916Courtesy of JAGUAR CARS, INC.

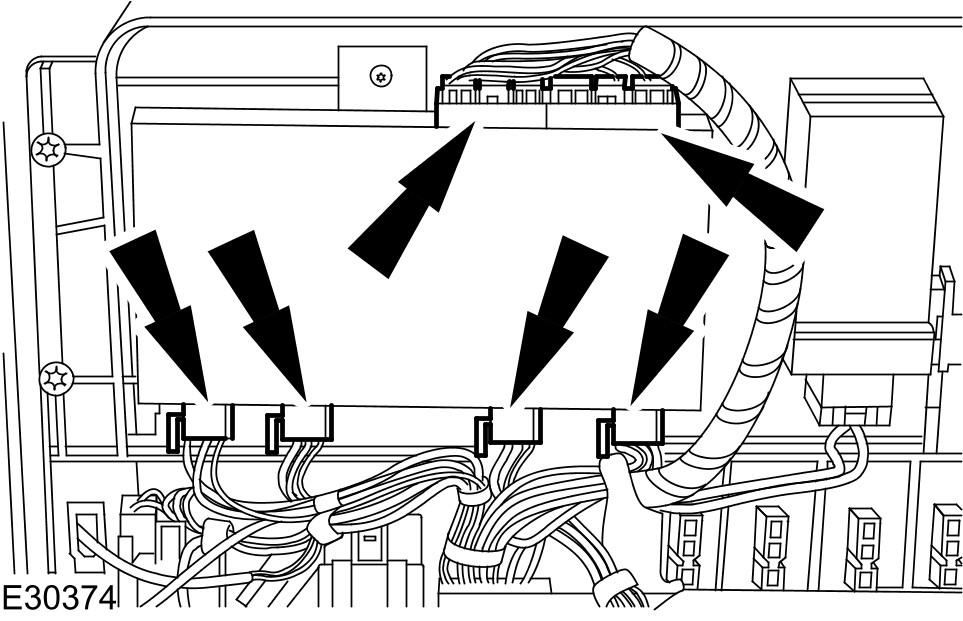

  2. Disconnect the electrical connectors.
    GJ0003917Courtesy of JAGUAR CARS, INC.

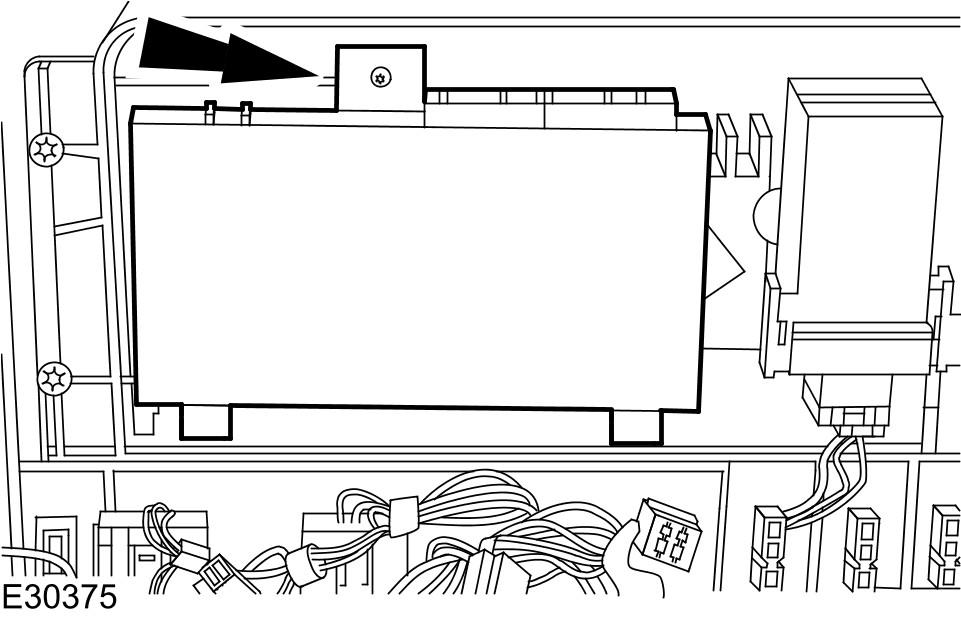

  3. Remove the driver seat module (DSM).
    • Release the DSM retaining tang
