Anti-Lock Brake System (ABS) Module - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to Battery, Mounting and Cables article.

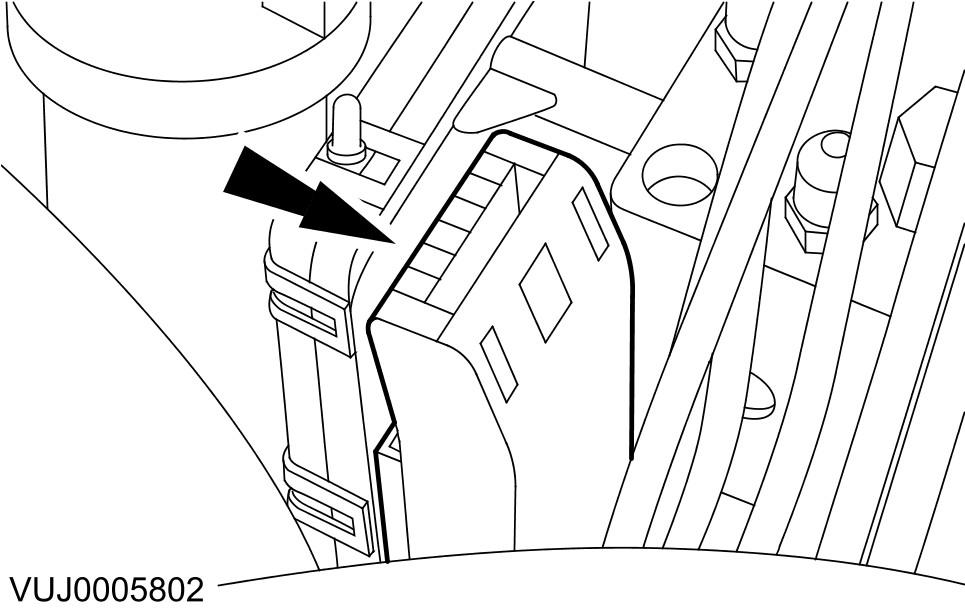

    GJ0004708Courtesy of JAGUAR CARS, INC.
  2. Disconnect the hydraulic control unit (HCU) electrical connector.

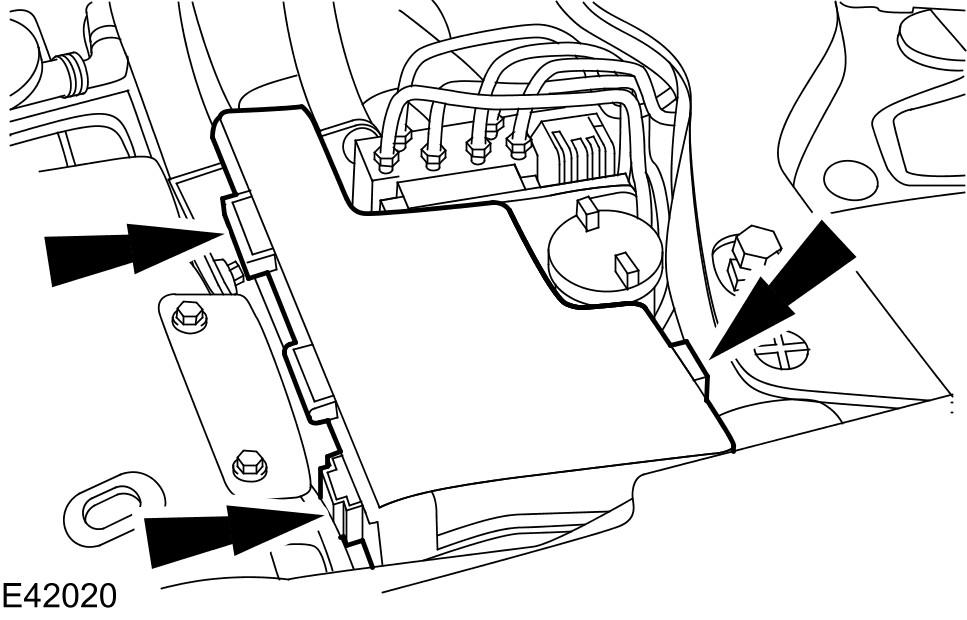

    GJ0004710Courtesy of JAGUAR CARS, INC.
  3. Detach the engine compartment battery junction box.
  4. Remove the windshield washer reservoir. Refer to Wipers and Washers article.

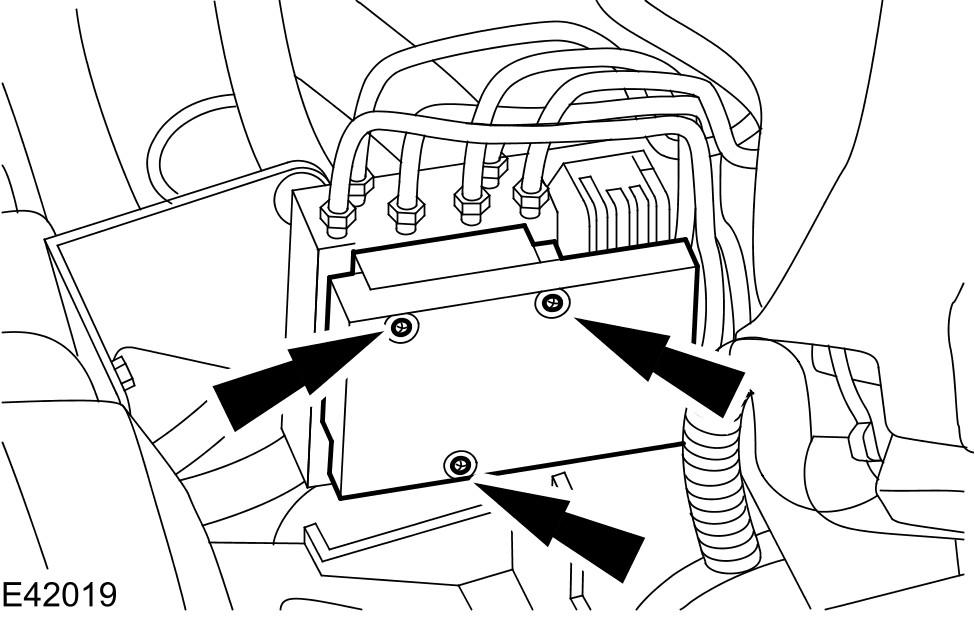

    GJ0004711Courtesy of JAGUAR CARS, INC.
  5. Remove the anti-lock brake system (ABS) module.
