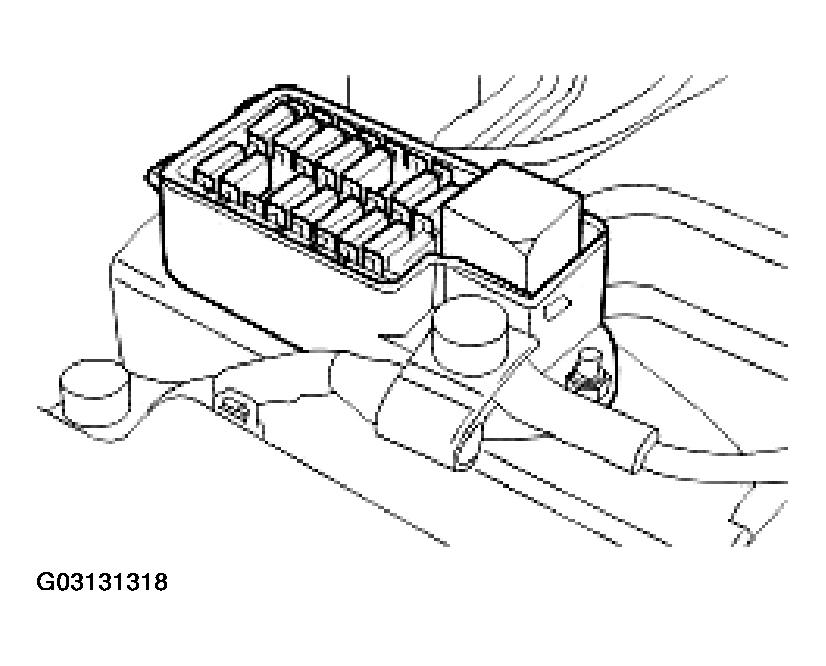

Engine Management Fuse Box
FUSE RATINGS AND CIRCUIT DESCRIPTION
| Fuse No | Rating (amps) | Circuit |
|---|---|---|
| 1 | 20 | Adaptive damping |
| 2 | 15 | Intercooler water pump (Supercharger) |
| 3 | 25 | Starter solenoid. |
| 4 | 5 | Engine control module. |
| 5 | 10 | Fuel injectors. |
| 6 | 5 | Transmission control module |
| 7 | - | Not used. |
| 8 | 10 | Air conditioning compressor clutch. |
| 9 | 30 | Throttle motor. |
| 10 | 5 | Engine control module, Park/Neutral switch, cruise control VSV 1 and 2 (where fitted), EGR valves. |
| 11 | - | Not used. |
| 12 | 10 | Air flowmeter, VVT solenoids. |
| 13 | - | Not used. |
| 14 | 10 | HO2S sensor heaters (where fitted), EVAP valve, ignition coils relay, throttle motor relay, AC compressor clutch relay, radiator fans control module, CCV. |
| 15 | 30 | Windscreen left-hand heater. |
