H16: O2 Sensor Screen Ground Continuity

  1. With EM012 and EM024 disconnected, measure the resistance between EM012/022 and EM024/001

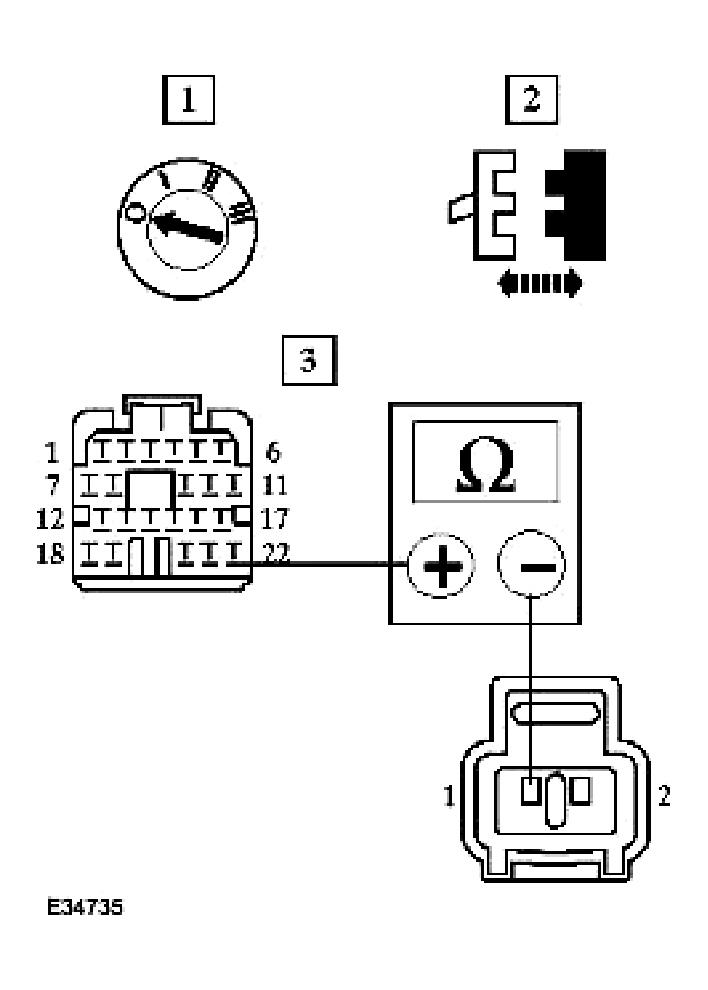

    Fig 1: Measuring Resistance Between EM012/022 And EM024/001
    G04355552Courtesy of JAGUAR CARS, INC.
    • Is the resistance < 0.5OHM?

    Yes  : GO to H17

    No  : Inspect connectors EM012, and EM024 for corrosion, damaged / pushed back pins or repair the harness; reconnect plug(s)

    GO to H21
