F14: Heated O2 Sensor Screen Ground Continuity

  1. With EM012 and EM023 disconnected, measure the resistance between EM012/022 and EM023/004

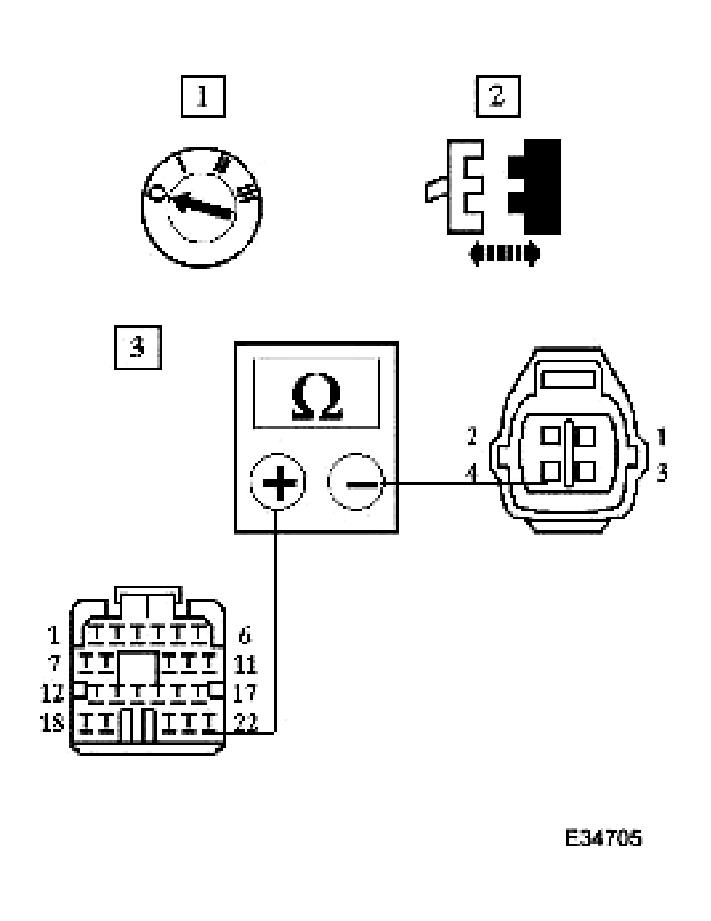

    Fig 1: Measuring Resistance Between EM012/022 And EM023/004
    G04355520Courtesy of JAGUAR CARS, INC.
    • Is the resistance < 0.5OHM?

    Yes  : GO to F15

    No  : Inspect connectors EM012, and EM023 for corrosion, damaged / pushed back pins or repair the harness, reconnect plug(s)

    GO to F19
