C3: Check For O2 Sensor Failure

  1. With the conditions held as C2, suddenly decelerate to idle

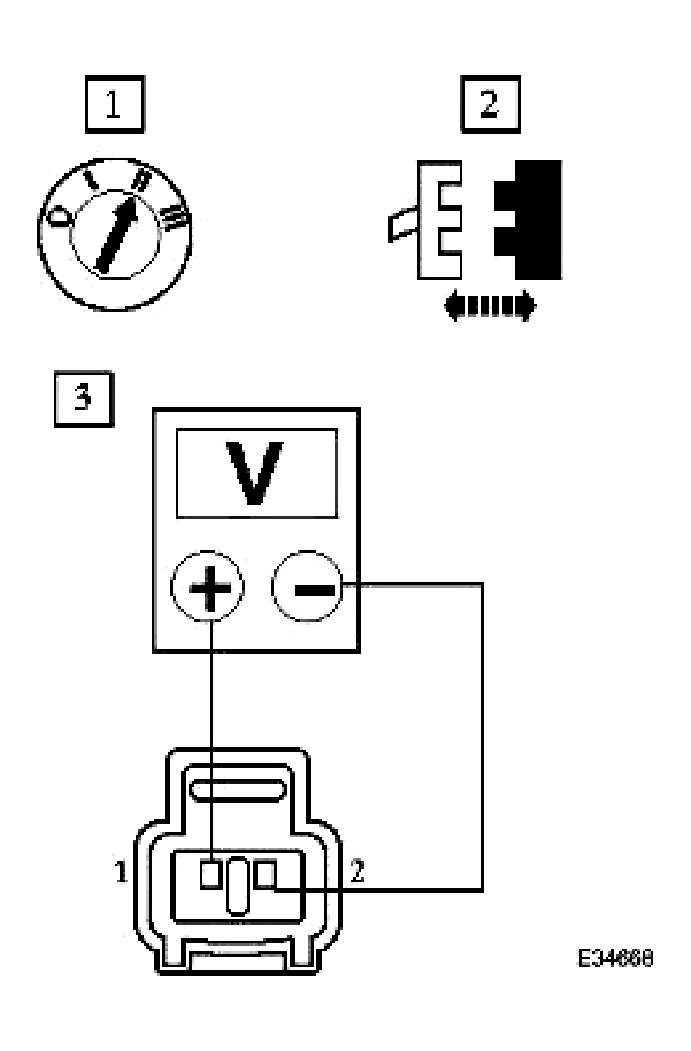

    Fig 1: Checking For O2 Sensor Failure (With Conditions Held as C2)
    G04355466Courtesy of JAGUAR CARS, INC.
    • Has the voltage dropped to 400mV or less ?

    Yes  : GO to C4

    No  : Renew O2 sensor and reconnect plug(s)

    GO to C6
