B14: Heated O2 Sensor Screen Ground Continuity

  1. With EM012 and EM021 disconnected, measure the resistance between EM012/022 and EM021/004

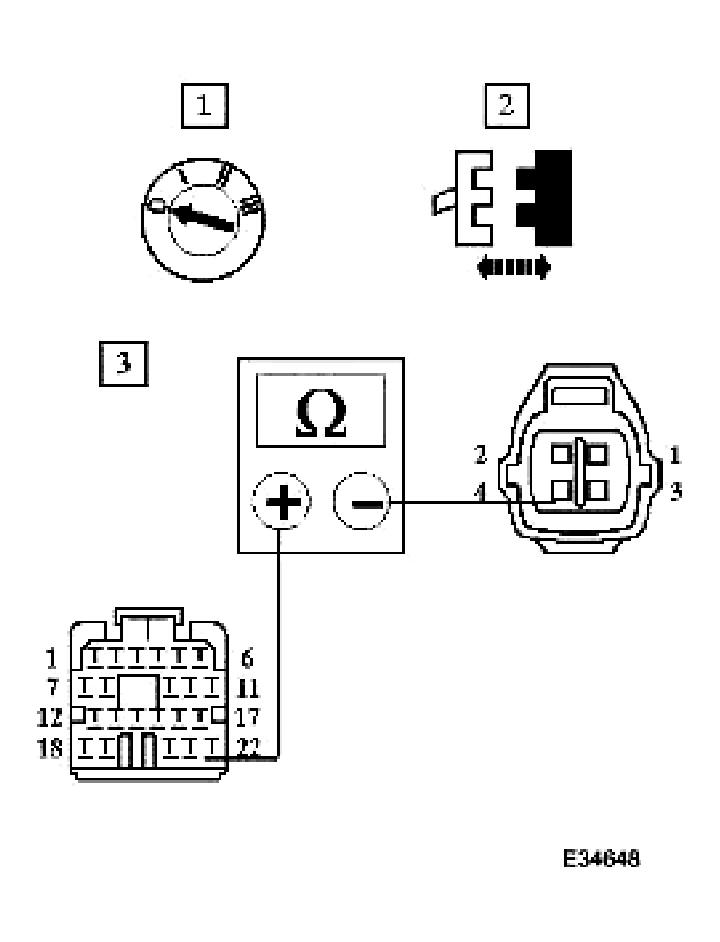

    Fig 1: Measuring Resistance Between EM012/022 And EM021/004
    G04355459Courtesy of JAGUAR CARS, INC.
    • Is the resistance < 0.5OHM?

    Yes  : GO to B15

    No  : Inspect connectors EM012, and EM021 for corrosion, damaged / pushed back pins or repair the harness, reconnect plug(s)

    GO to B19
