Windshield Fogging At Blower Start-Up/Revised Module (SECTION 82, NO. 47)

Publication date: 1995-10-01
Reference number: SECTION 82, NO. 47
Supersedes refnos: SECTION 14, NO. 05

WINDSHIELD FOGGING AT BLOWER START-UP/REVISED MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SECTION 14, NO. 05, SECTION 82, NO. 47, Date of Issue: October, 1995

JAGUAR:

1995 XJ12, XJ6 & XJR

TEMPORARY WINDSHIELD FOGGING AFTER BLOWER START-UP

Model(S): 1995 Jaguar XJ12, XJ6 & XJR

Original Section: 82 - Air Conditioning

Reissued Section: 14 - Climate Control System

Original Bulletin No.: 82-47

Reissued Bulletin No.: 14-05

Date: October, 1995

NOTE: This Jaguar bulletin has been reissued with a new bulletin number. See Dealer Memo 05-96, dated May, 1996.

APPLIED MODELS/VINS

1995 Jaguar XJ12, XJ6 & XJR, VIN 720001-741196

ISSUE

Temporary fogging of the windshield after blower start-up may occur on some Sedan Range vehicles within the above VIN range. The condition results from residual moisture in the A/C unit reaching the windshield through the defroster ducts.

A revised Air Conditioning Control Module (A/CCM) entered production as of VIN 741197. This control module delays the opening of the defroster ducts for 30 seconds after the blower motors start to allow any residual moisture to evaporate.

ACTION

In case of a customer complaint of temporary windshield fogging after blower motor start-up on Sedan Range vehicles within the above VIN range, replace the A/CCM with the revised module Part No. LNA 7600AF.

A/CCM REPLACEMENT PROCEDURE

Disconnect battery negative cable.
Remove the right side dash liner and the right side footwell outlet duct.
Disconnect the A/CCM harness connectors See Fig 1 .
After removing the screws, remove the A/CCM See Fig 1 .

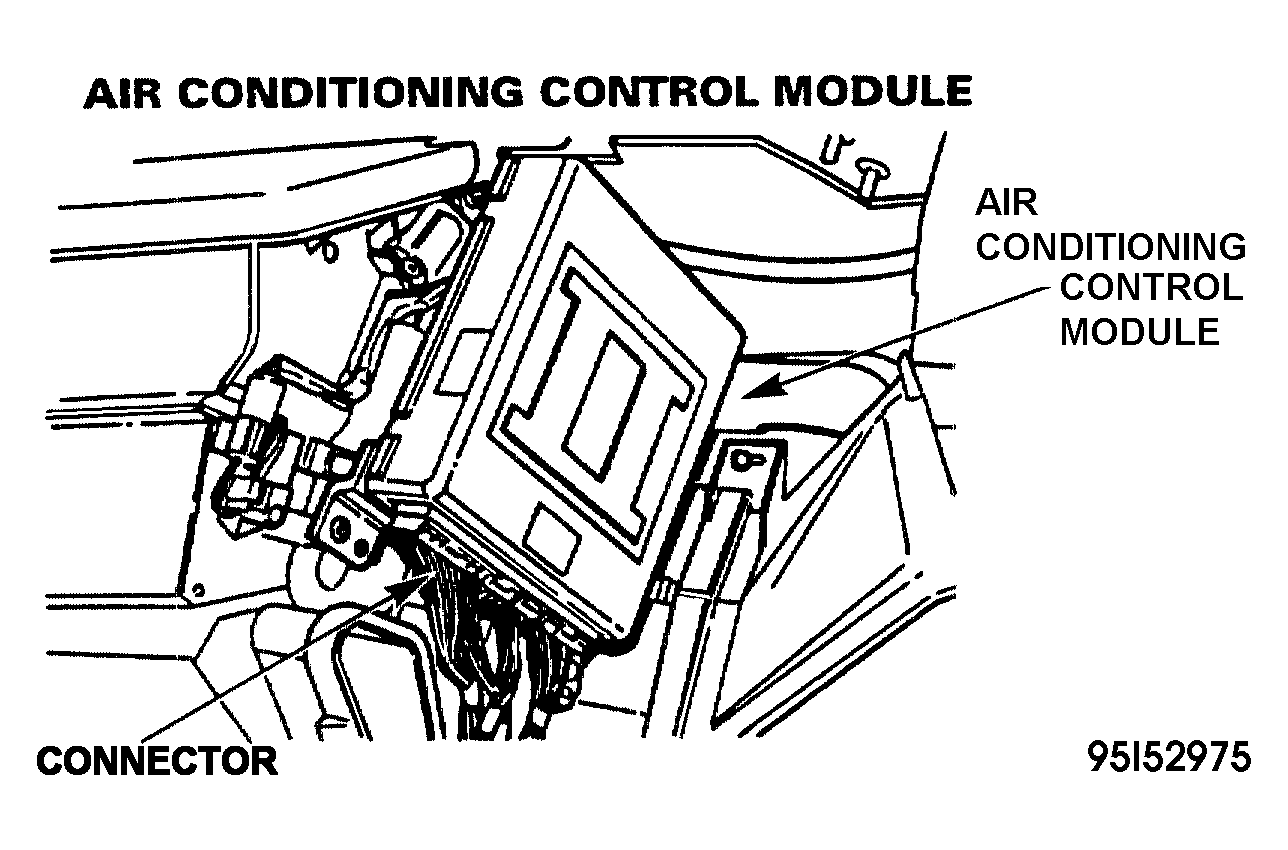

Fig 1: Air Conditioning Control Module Identification
Position the new A/CCM so the mounting brackets engage correctly in the locating pegs and install.
Connect the connectors.
Align and install the footwell air duct.
Install the dash liner.
Connect the battery negative cable and reset the clock.

PARTS INFORMATION

Description	Part Number	Qty.
Air Conditioning Control Module	LNA 7600AF	1

WARRANTY INFORMATION

Fault Code	R.O. Number	Description	Time Allowance
JX BB RJ	82.20.65.09	A/CCM- Replace w/o Diagnostic Time	0.35 Hrs.
