Quick-Fit Connection Release Tool JD 203 (SECTION 05.1, NO. 01)

Publication date: 1994-10-01
Reference number: SECTION 05.1, NO. 01

QUICK-FIT CONNECTION RELEASE TOOL JD 203

TECHNICAL SERVICE BULLETIN

Reference Number(s): SECTION 05.1, NO. 01

NEW SPECIAL TOOL - QUICK-FIT CONNECTION RELEASE TOOL JD 203

Model(s): 1995 Jaguar Sedan Range with AJ16 engine

Section: 5.1 - Fuel, Emission Control & Engine Management (AJ16)

Bulletin No.: 05.1-01

Date: October, 1994

APPLIED MODELS/VINS

1995 Jaguar Sedan Range, 720001-ON

ISSUE

A release tool for disconnecting quick-fit connectors has been issued. JD 203 consists of two hinged plastic sleeves for releasing the fuel lines from the quick-fit connectors. Connectors are of two different sizes.

ACTION

WARNING: Observe all safety precautions when working around fuel.

Place the tool around the fuel line as shown in See Fig 1 .
Push the tool fully into the connector to release the fuel line retainer.
Remove the fuel line with the tool in place.

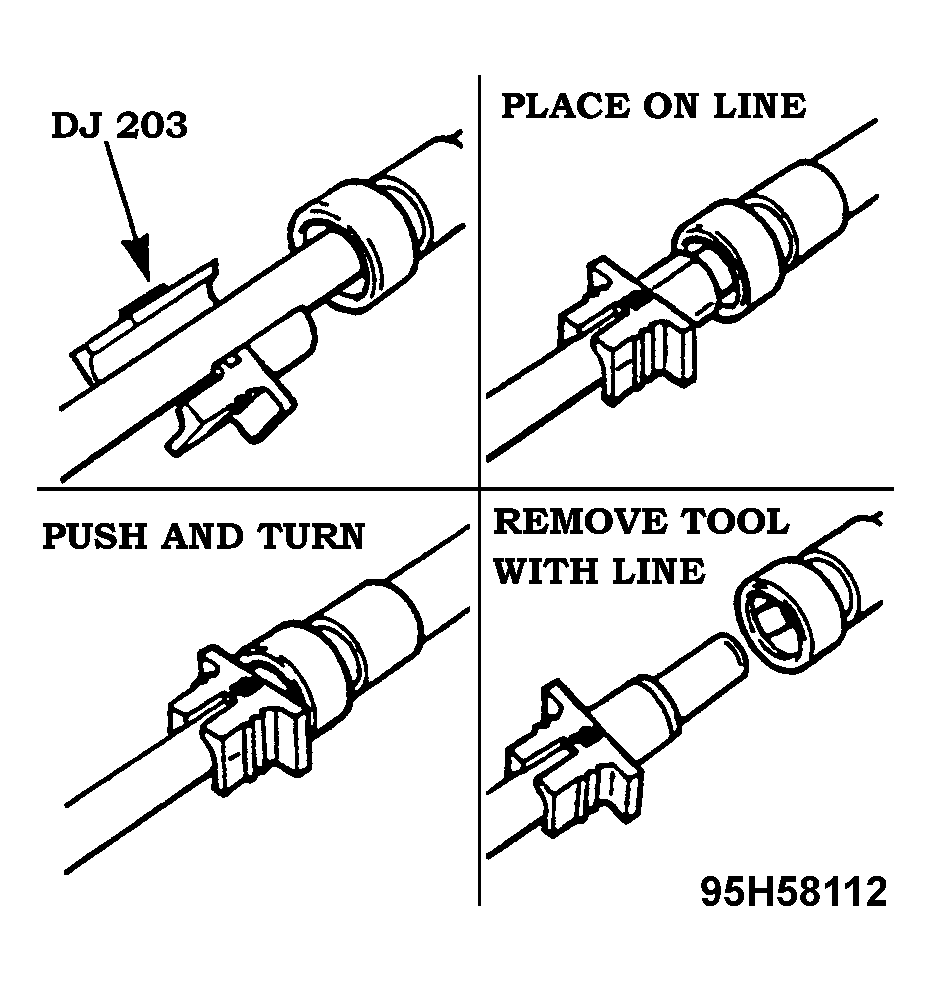

Fig 1: FUEL LINE DISCONNECTION TOOL JD 203

NOTE: The tool is required only to disconnect the fuel lines. To connect, slide the fuel line fully into the connector assuring that it is securely engaged in the retainer.
