Antilock Brake System Schematics

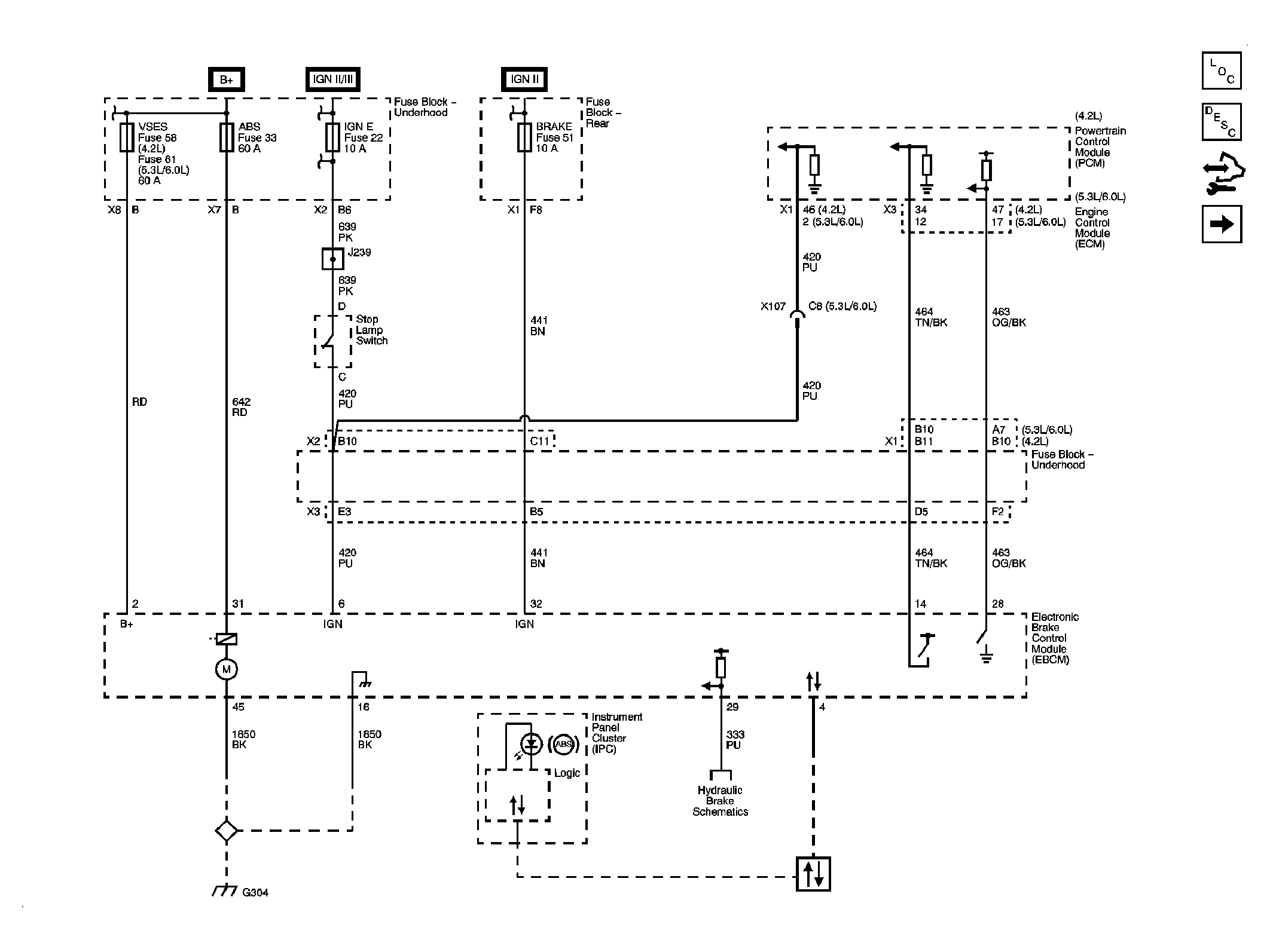

Fig 1: EBCM Power Ground, Serial Data, Indicator & Signal Circuits Schematic
GM1923487Courtesy of GENERAL MOTORS CORP.

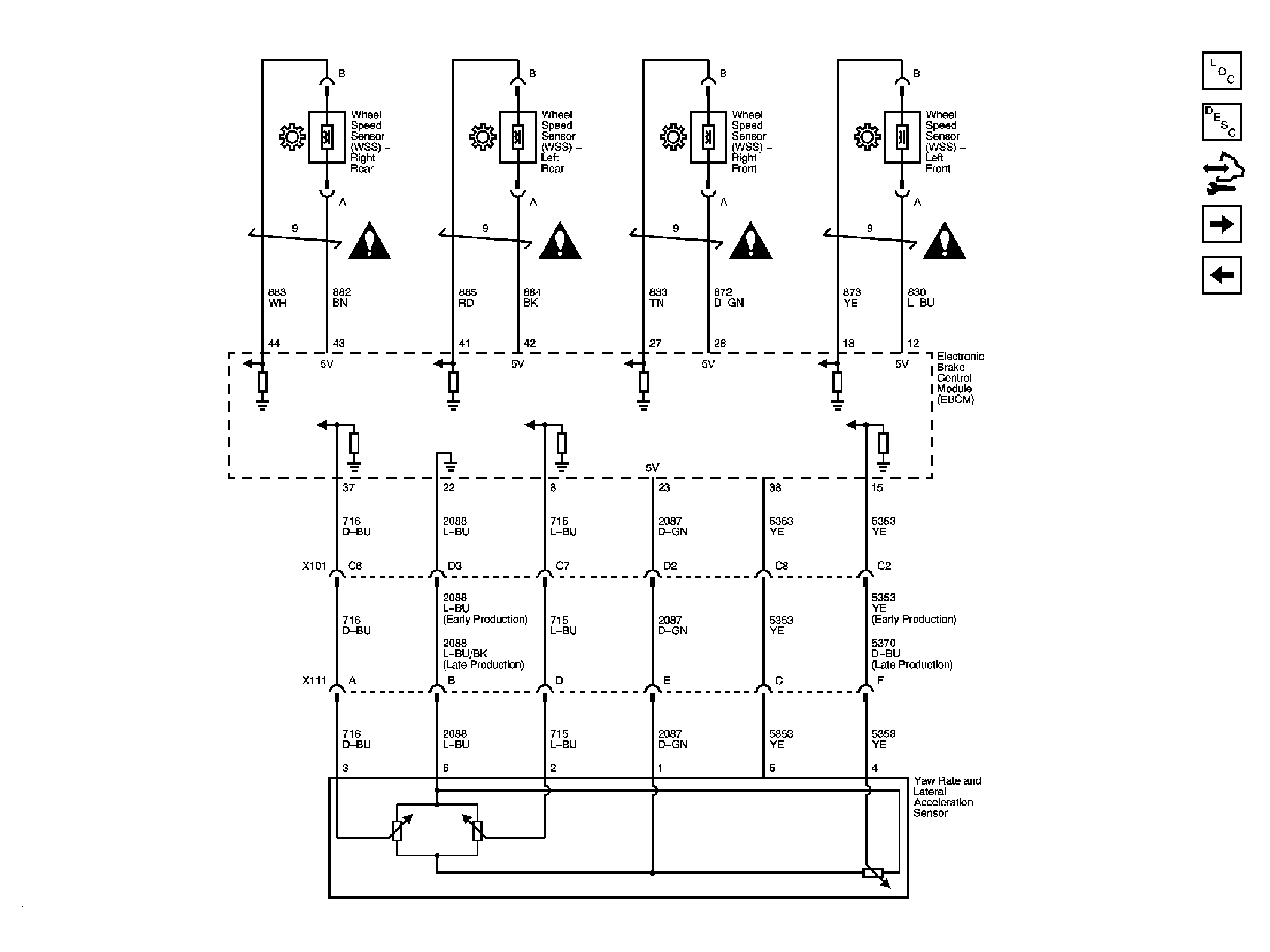

Fig 2: Wheel Speed Sensors & Yaw Rate/Lateral Acceleration Sensor Schematic
GM1923490Courtesy of GENERAL MOTORS CORP.

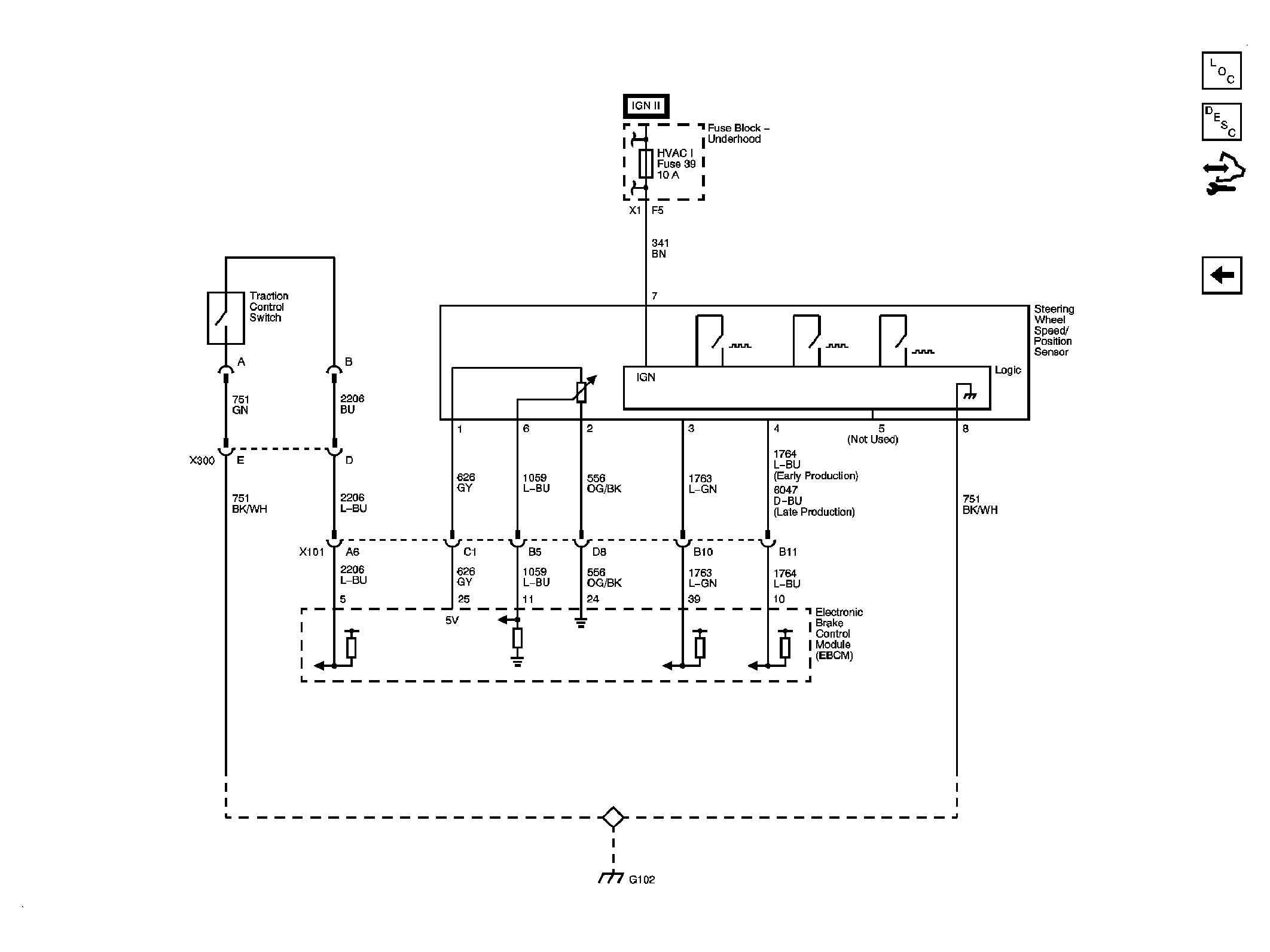

Fig 3: Steering Wheel Speed/Position Sensor & Traction Control Switch Schematic
GM1923491Courtesy of GENERAL MOTORS CORP.
