Body Control System Schematics

WARNING: This page is about a different car, the 2008 Saab 9-7X. However, it is still accessible from the selected car via links, so may be relevant.

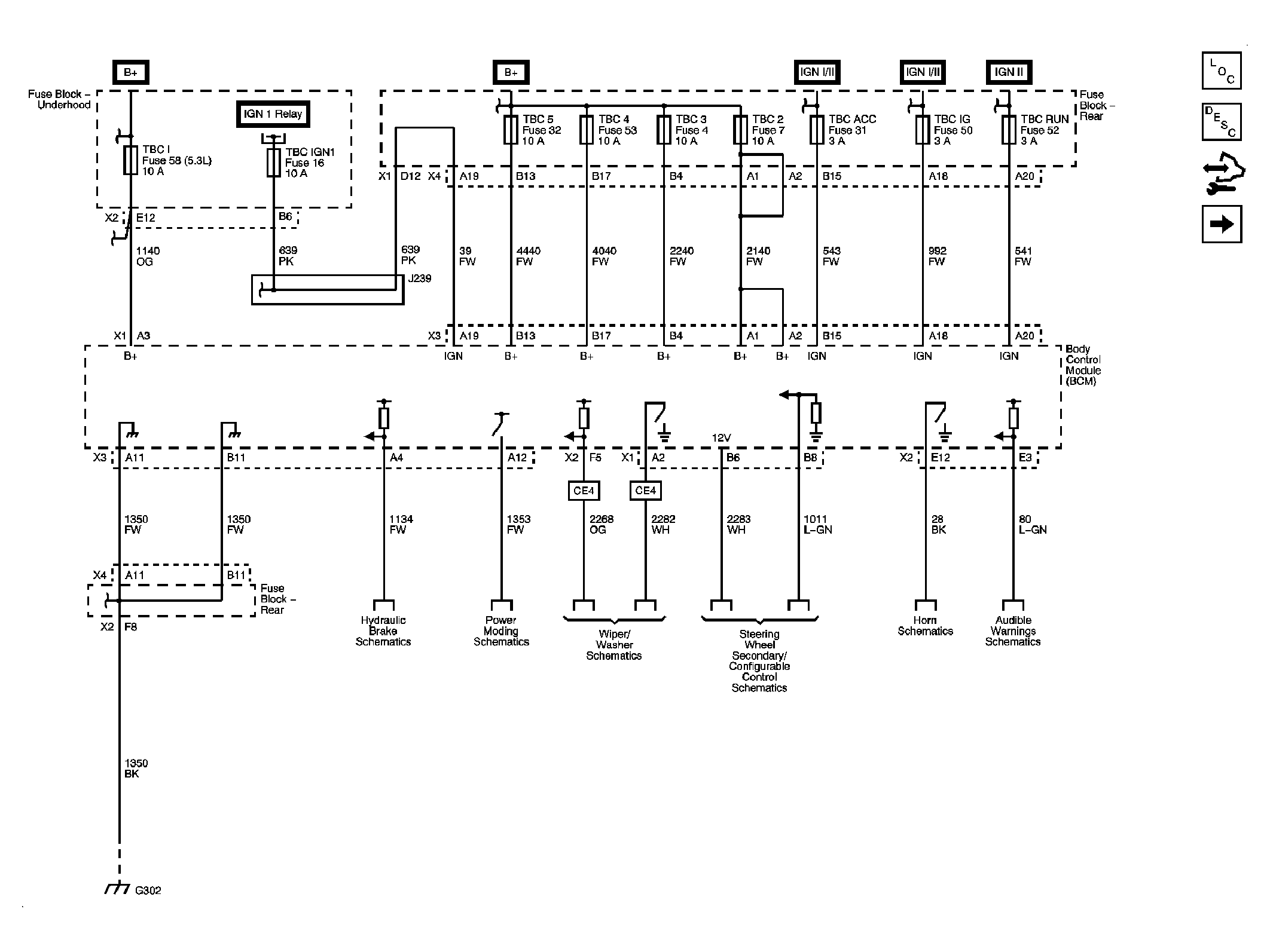

Fig 1: BCM Module Power and Ground

Courtesy of GENERAL MOTORS CORP.

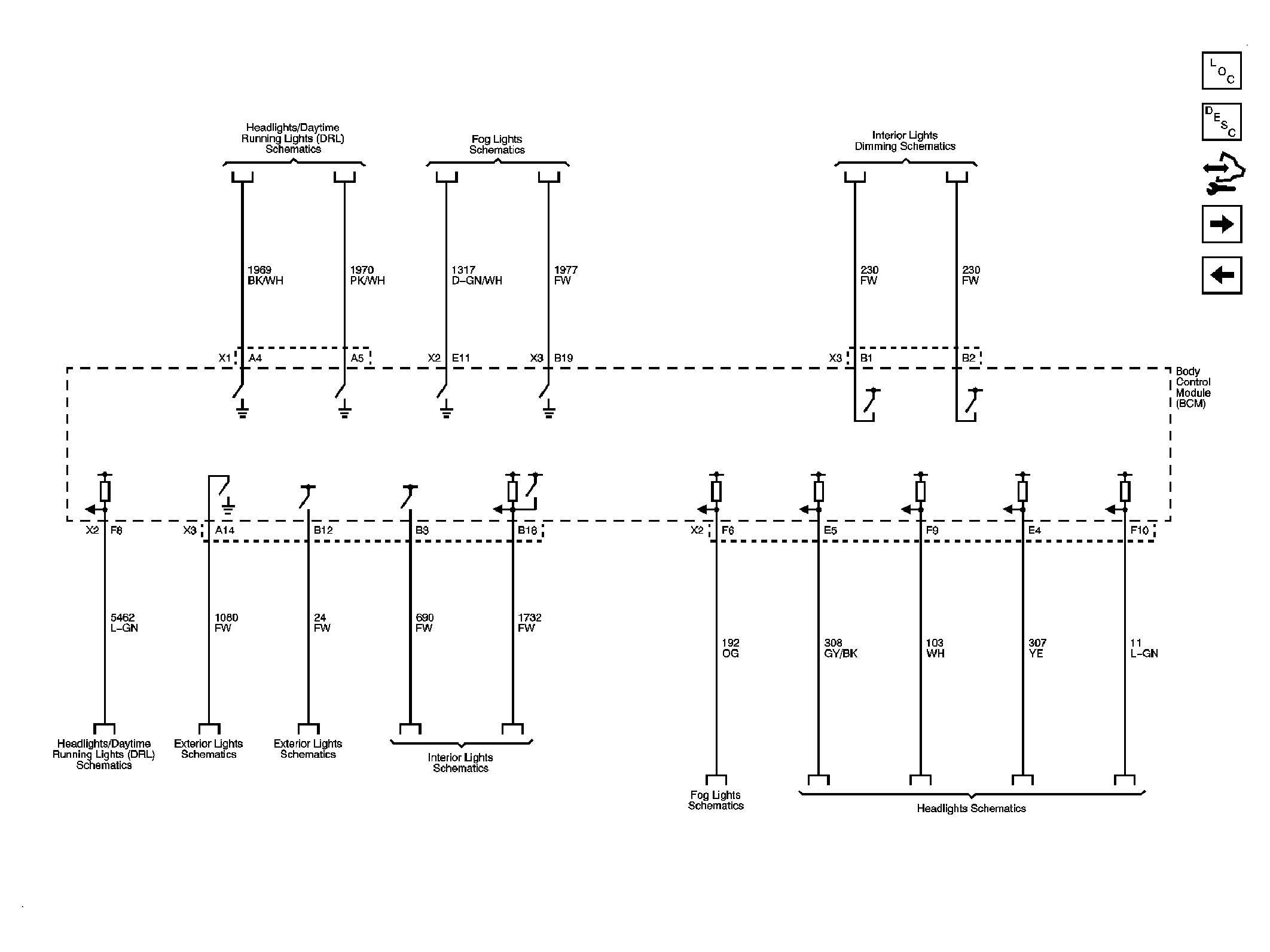

Fig 2: BCM Controlled/Monitored Subsystem References - 1 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 3: BCM Controlled/Monitored Subsystem References - 2 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 4: BCM Controlled/Monitored Subsystem References - 3 of 3

Courtesy of GENERAL MOTORS CORP.
