Chart C-1-3 Rear Sensor Output Inspection Procedure

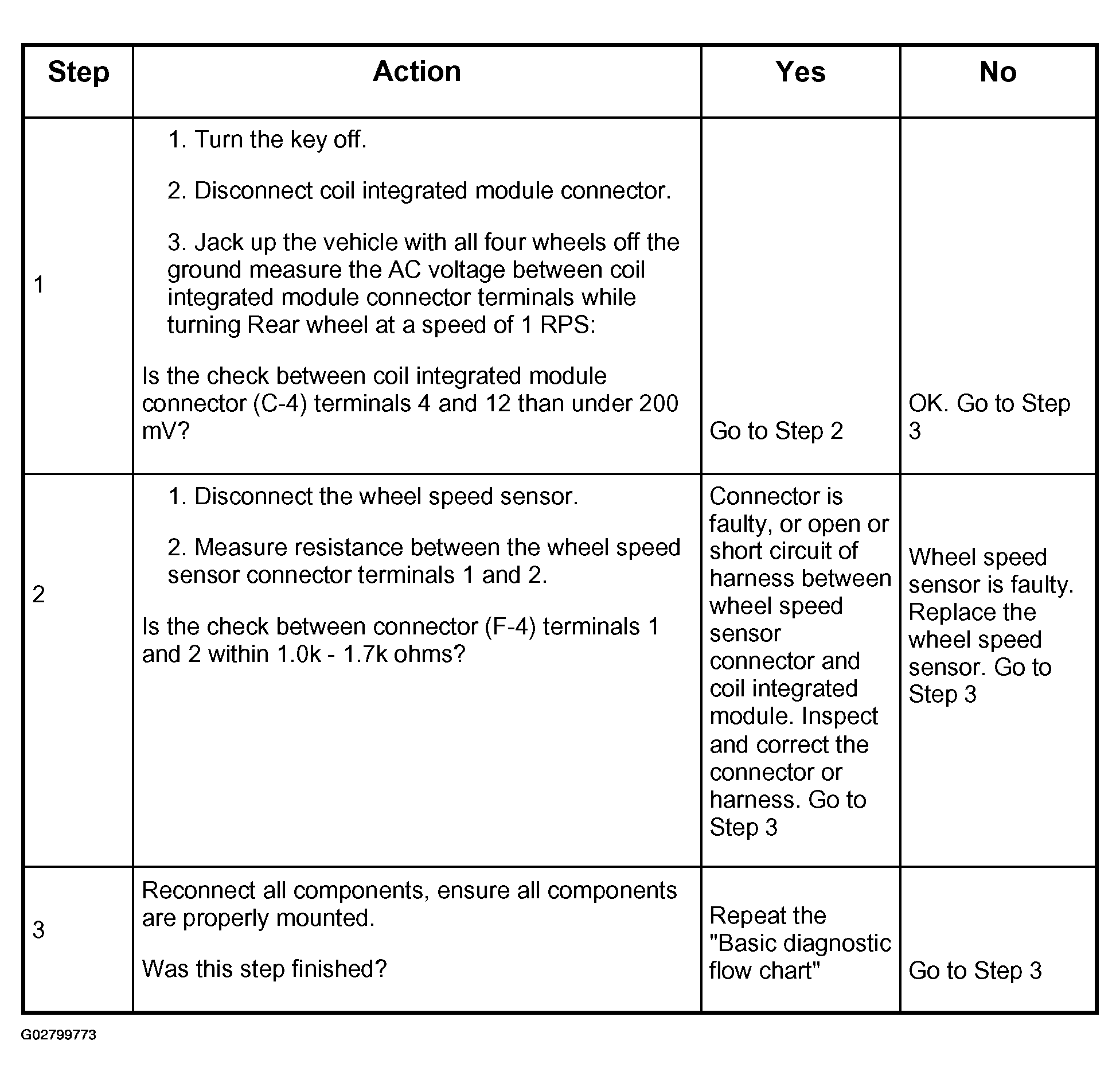

Fig 1: Chart C-1-3 Rear Sensor Output Inspection Procedure Chart

G02799773

Courtesy of ISUZU MOTOR CO.
