Installation Procedure

  1. Install the ION sensing module on the common chamber with the bolts.

    Tighten

    Tighten the ION sensing module to 4 N.m (35 lb in.).

  2. Connect the ION sensing module connectors as shown in the illustration.

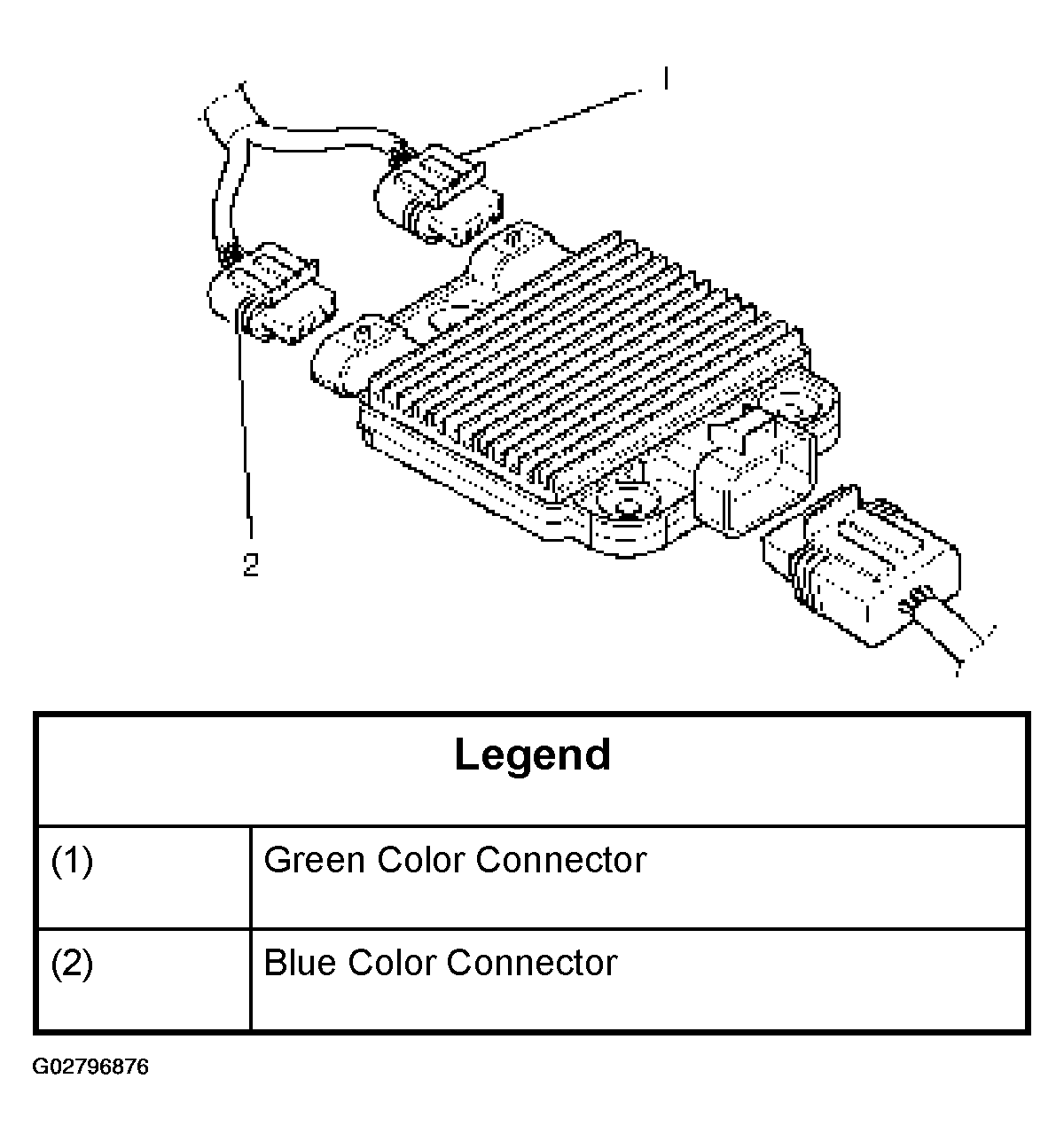

    Fig 1: Connecting Sensing Module Connectors
    G02796876Courtesy of ISUZU MOTOR CO.
  3. Connect the negative battery cable.
