Removal Procedure

  1. Disconnect the negative battery cable.
  2. Block the wheels.
  3. Remove the two screws from the ECM electrical connectors.
  4. Disconnect the ECM electrical connectors.

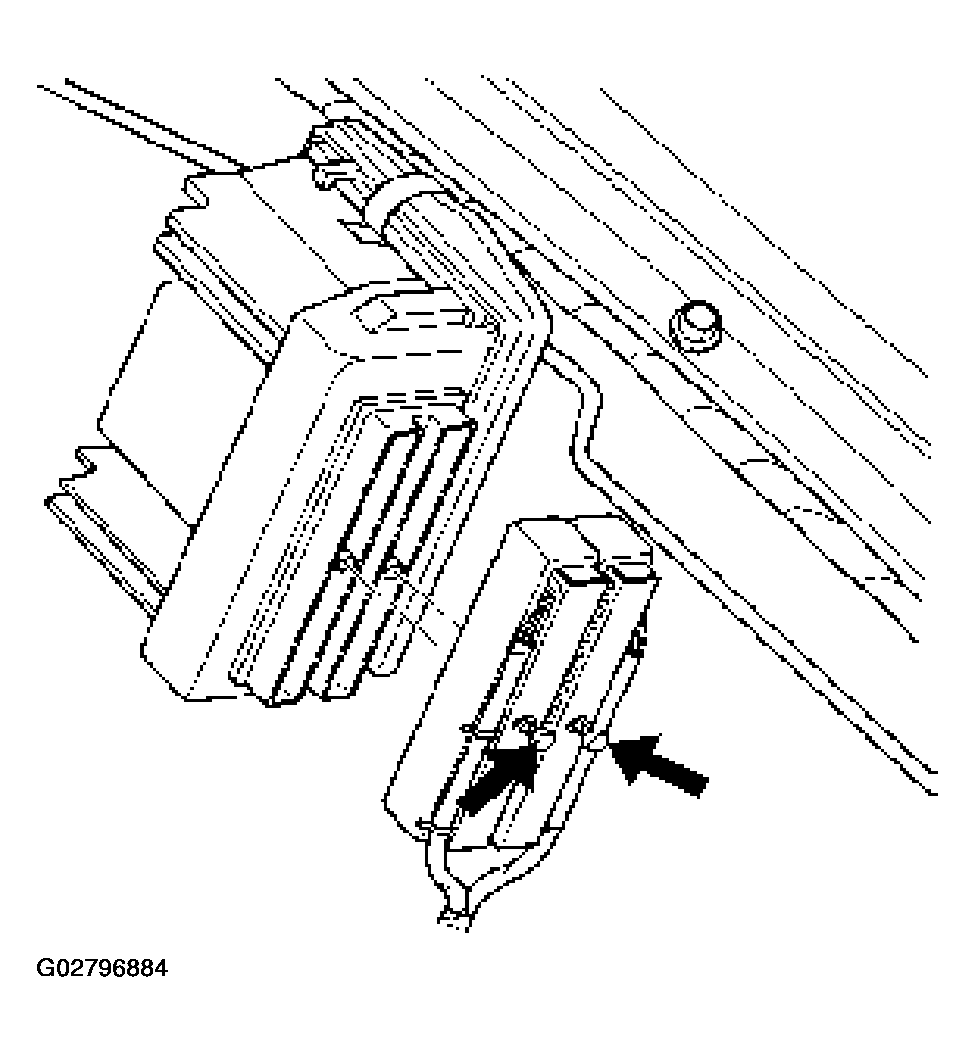

    Fig 1: Disconnecting ECM Electrical Connectors
    G02796884Courtesy of ISUZU MOTOR CO.
  5. After removing the clip which fixes the ECM to the bracket, remove ECM.

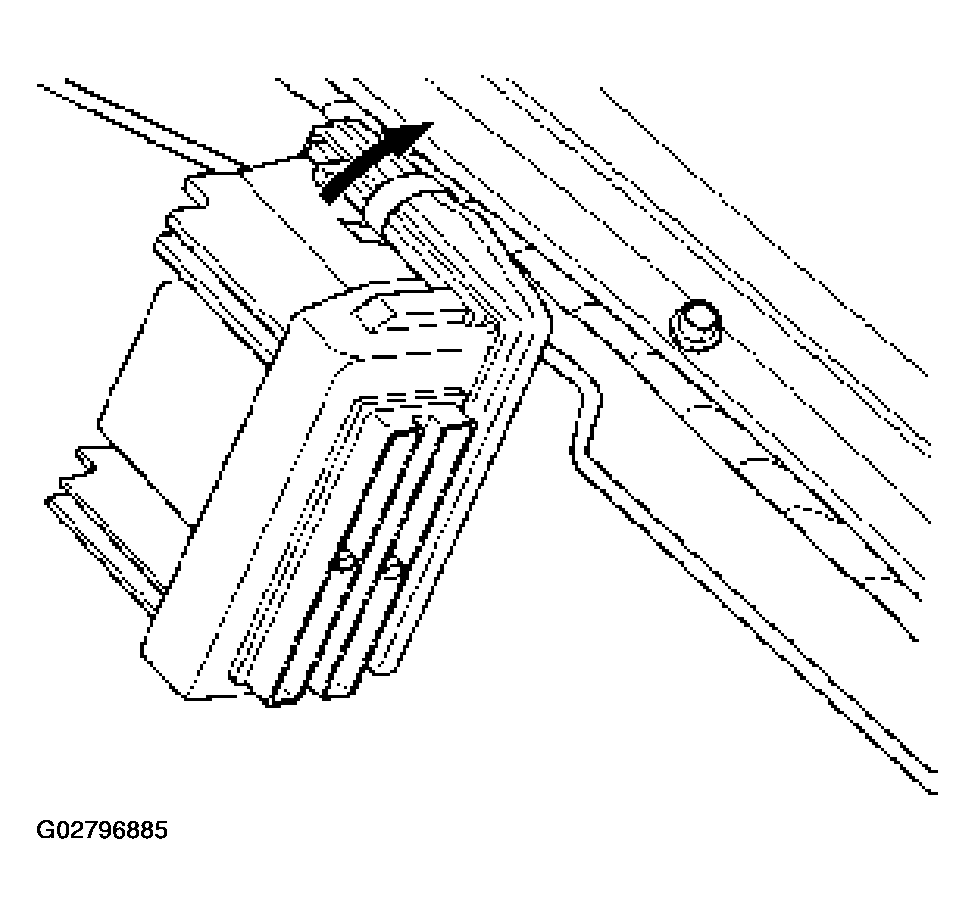

    Fig 2: Removing ECM
    G02796885Courtesy of ISUZU MOTOR CO.
