DTC P1649: Security Code & Security Key Not Programmed: Notes

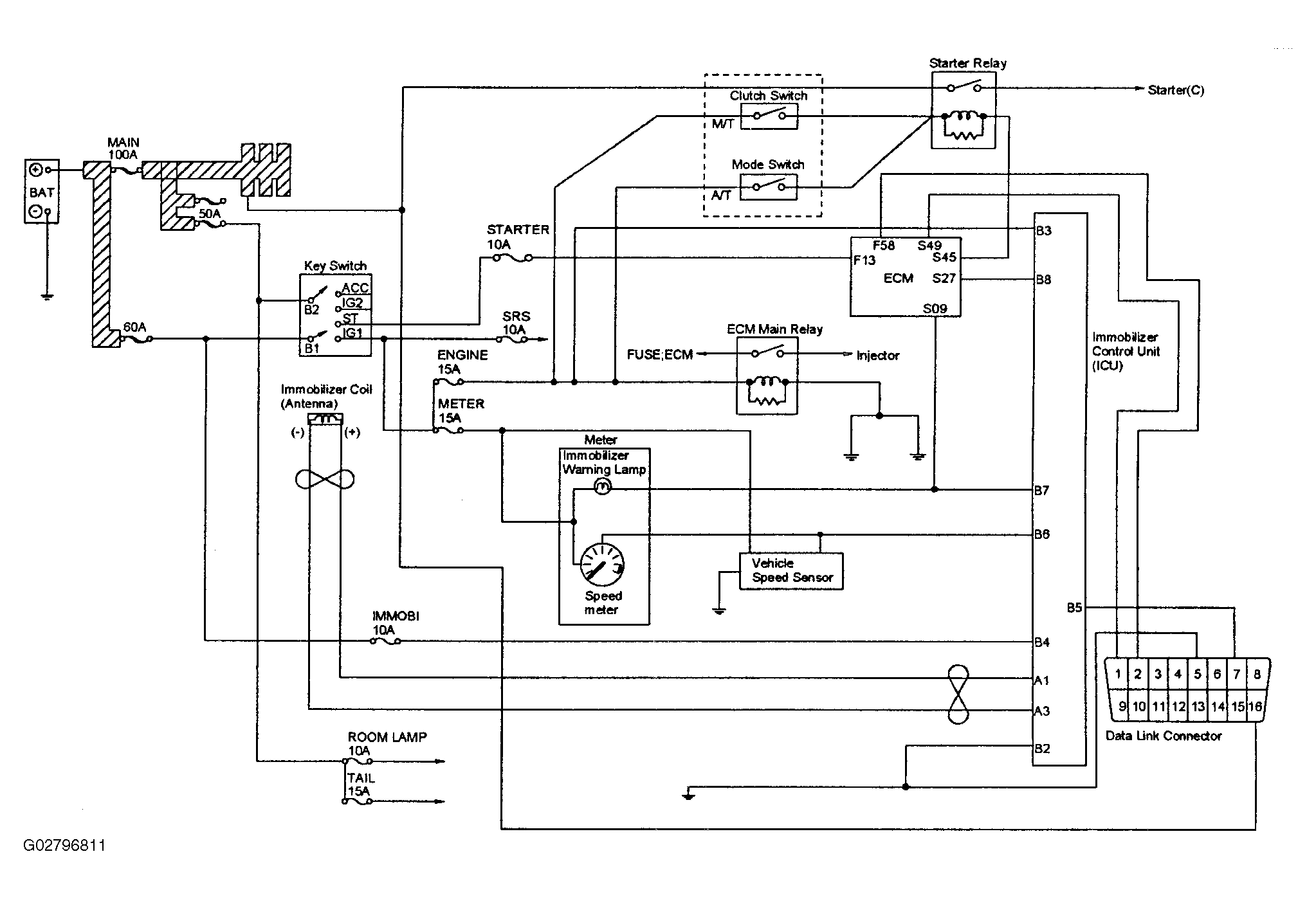

Fig 1: DTC P1649: Security Code & Security Key Not Programmed Circuit Diagram

G02796811

Courtesy of ISUZU MOTOR CO.
