Torque Specifications

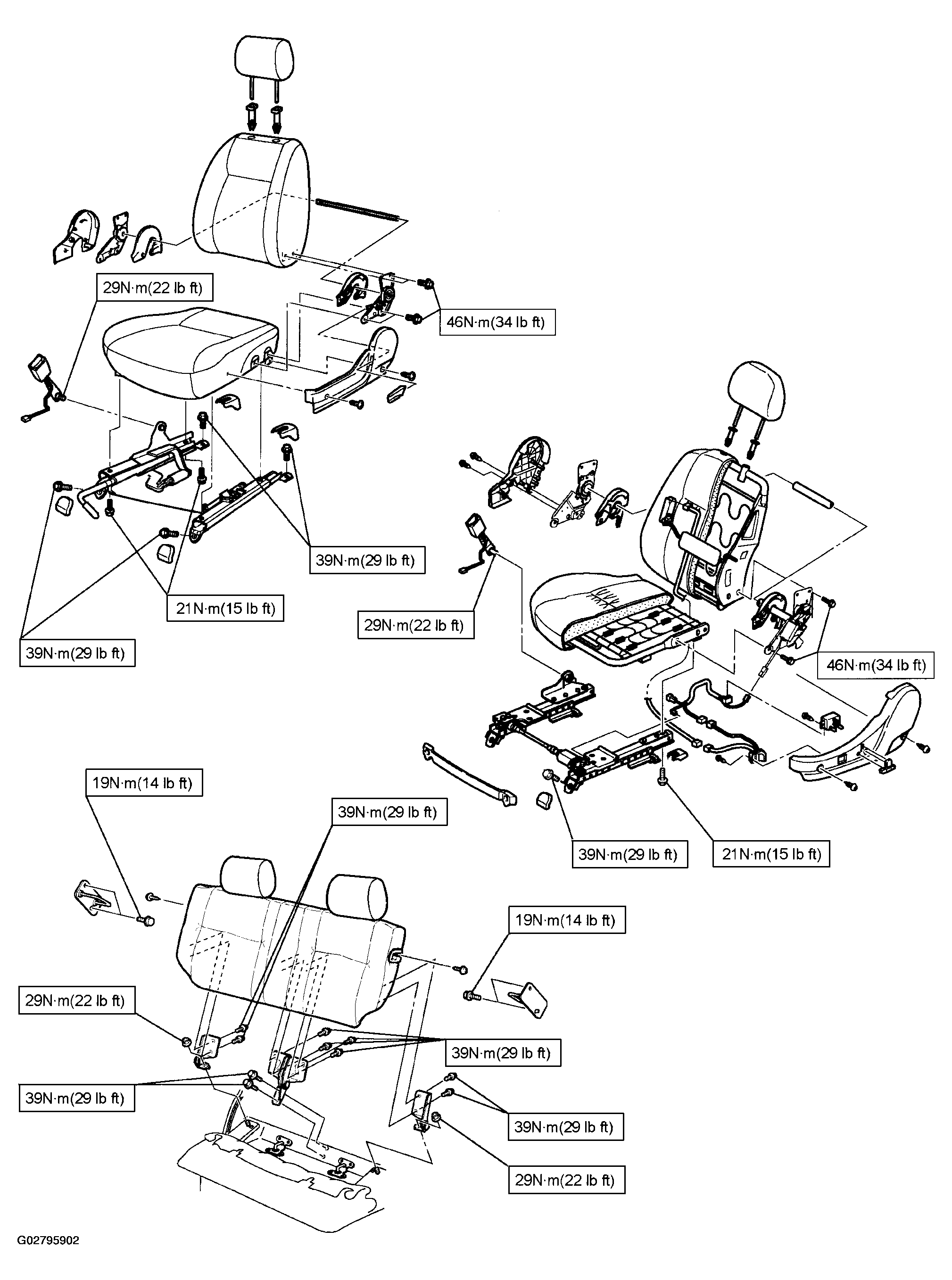

Fig 1: Tightening Bolt With Torque Specifications (1 Of 2)

G02795902

Courtesy of ISUZU MOTOR CO.

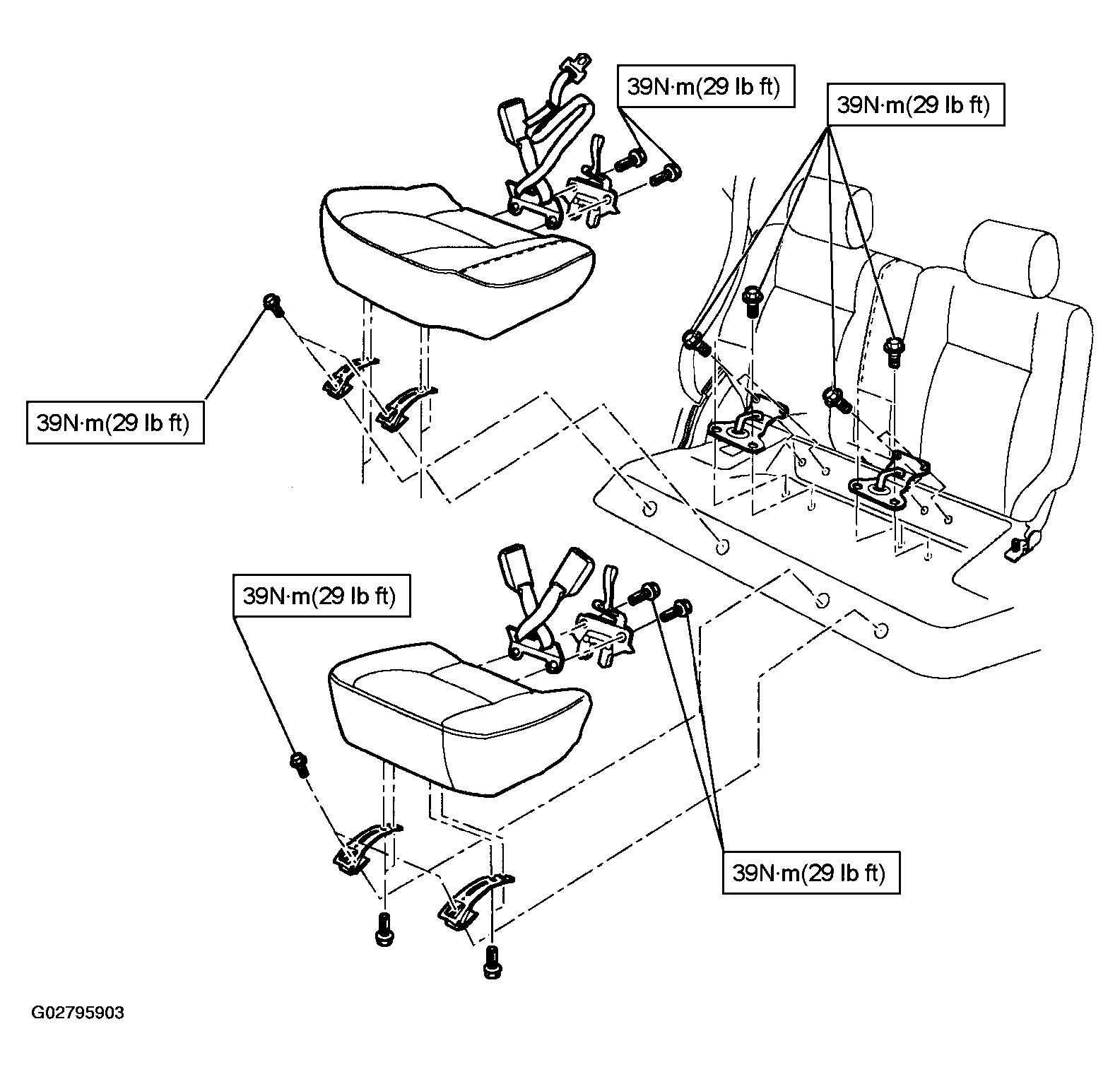

Fig 2: Tightening Bolt With Torque Specifications (2 Of 2)

G02795903

Courtesy of ISUZU MOTOR CO.
