Bulb Check

When the starter switch is turned on, the TOD indicator lamps go on as shown below.

NOTE: Once the starter switch is turned on, all the TOD indicator lamps are lit for two seconds even if the TOD switch is in any position.

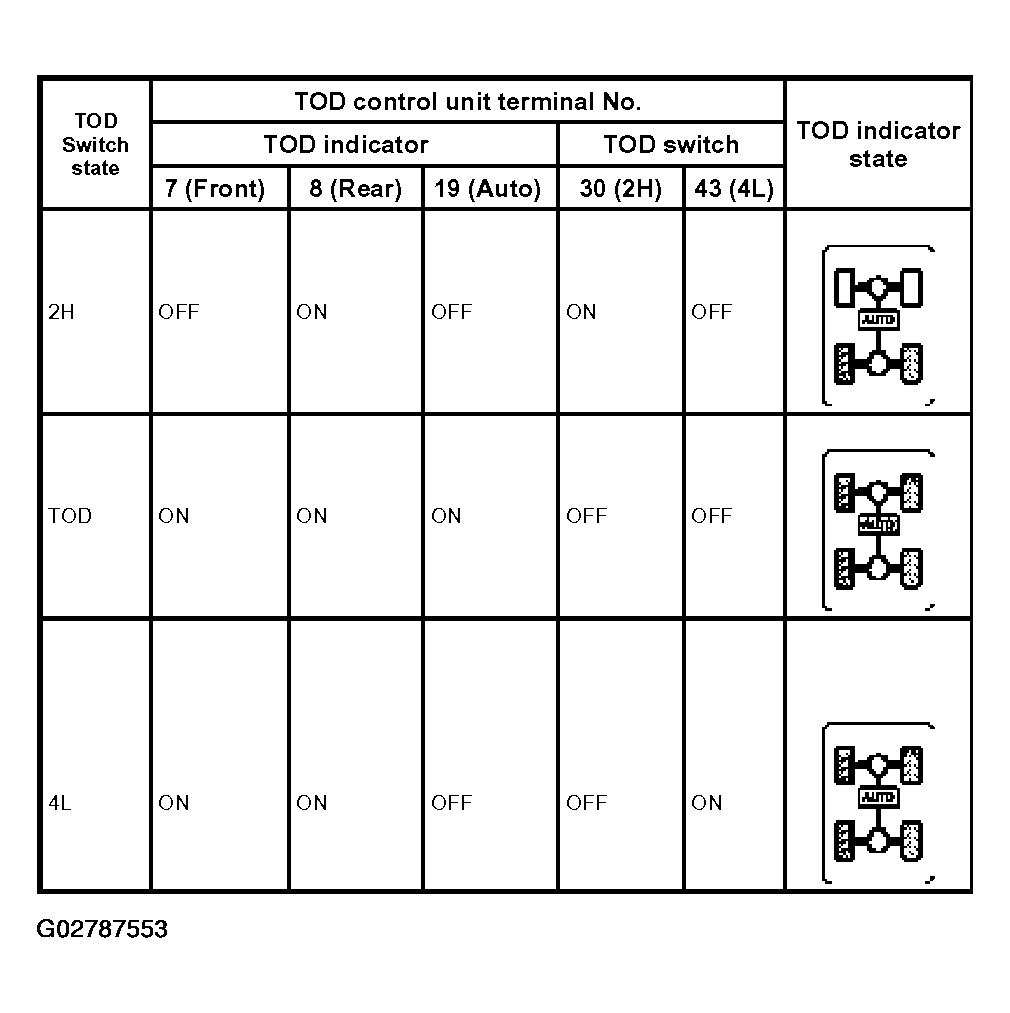

Fig 1: Bulb Checking Blinking Diagram

Courtesy of ISUZU MOTOR CO.

Simplified checking method of ABS IN and BRAKE ON signals:

In the event that any of the signal inputs listed below are observed while the self-diagnostic code is being displayed (the self-diagnostic connector is short-circuited to GND), you can simply check the ABS IN and BRAKE ON signals as shown in Fig 2 .

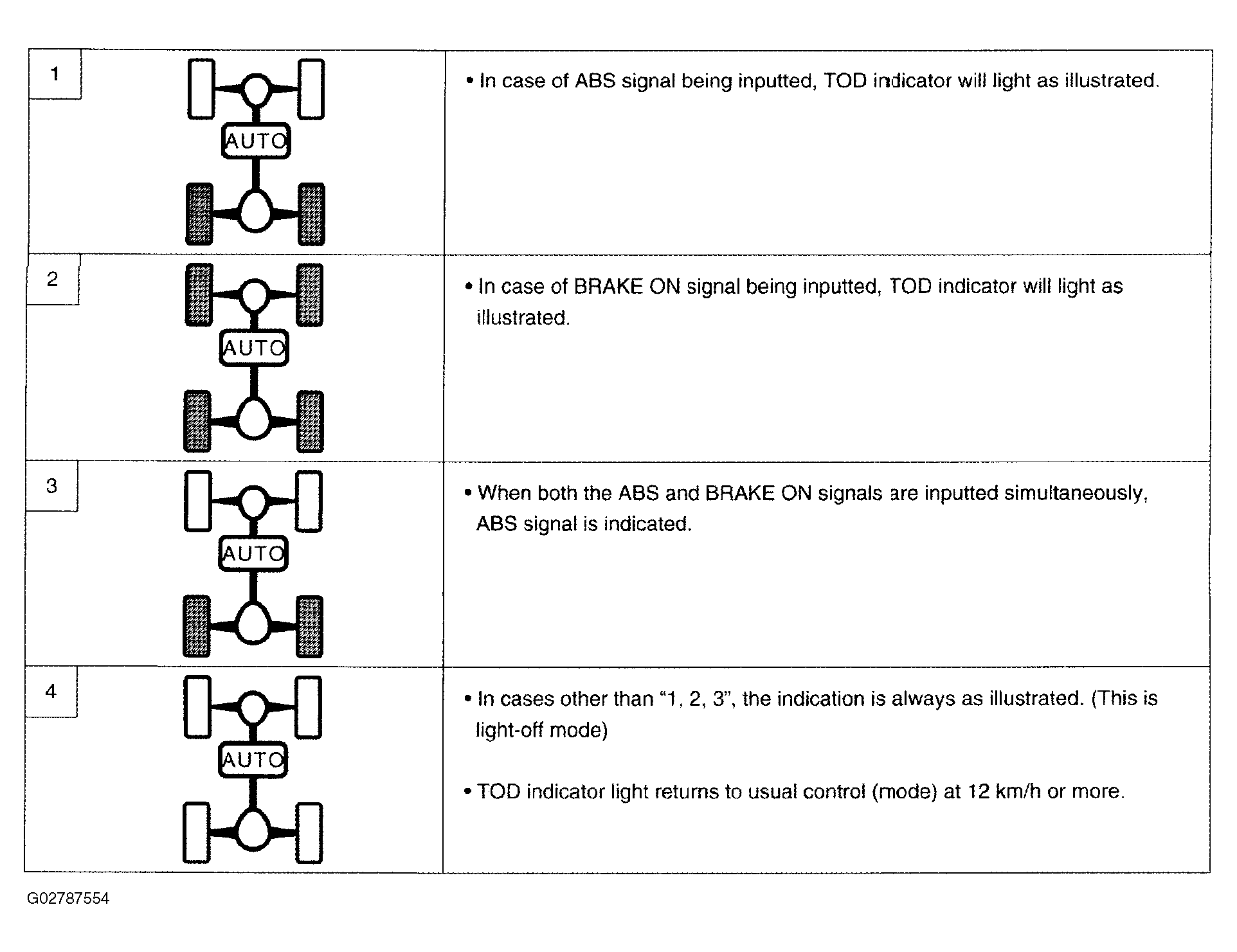

Fig 2: Blinking Diagram Of ABS In And Brake ON Signals:

Courtesy of ISUZU MOTOR CO.
