Home >> Isuzu >> 2004 >> Axiom Base, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Transmission Control System >> DTC P1768: (FLASHING CODE 68) Lock up Clutch Shudder >> Notes

DTC P1768: (FLASHING CODE 68) Lock up Clutch Shudder: Notes

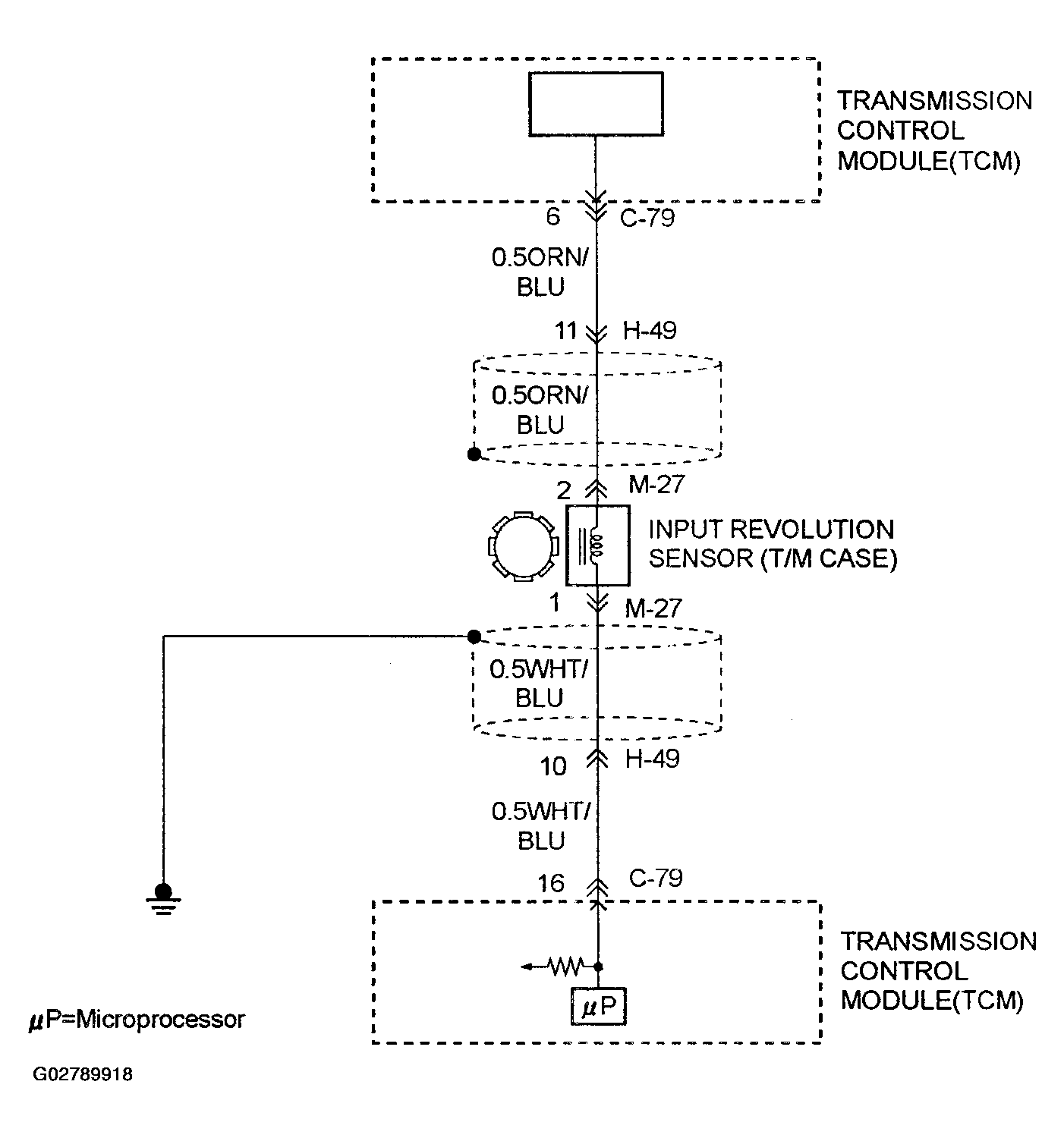

Fig 1: DTC P1768: (Flashing Code 68) Lock up Clutch Shudder) Wiring Diagram

G02789918

Courtesy of ISUZU MOTOR CO.
