DTC P1767: (FLASHING CODE 67) CAN Bus Communication Error

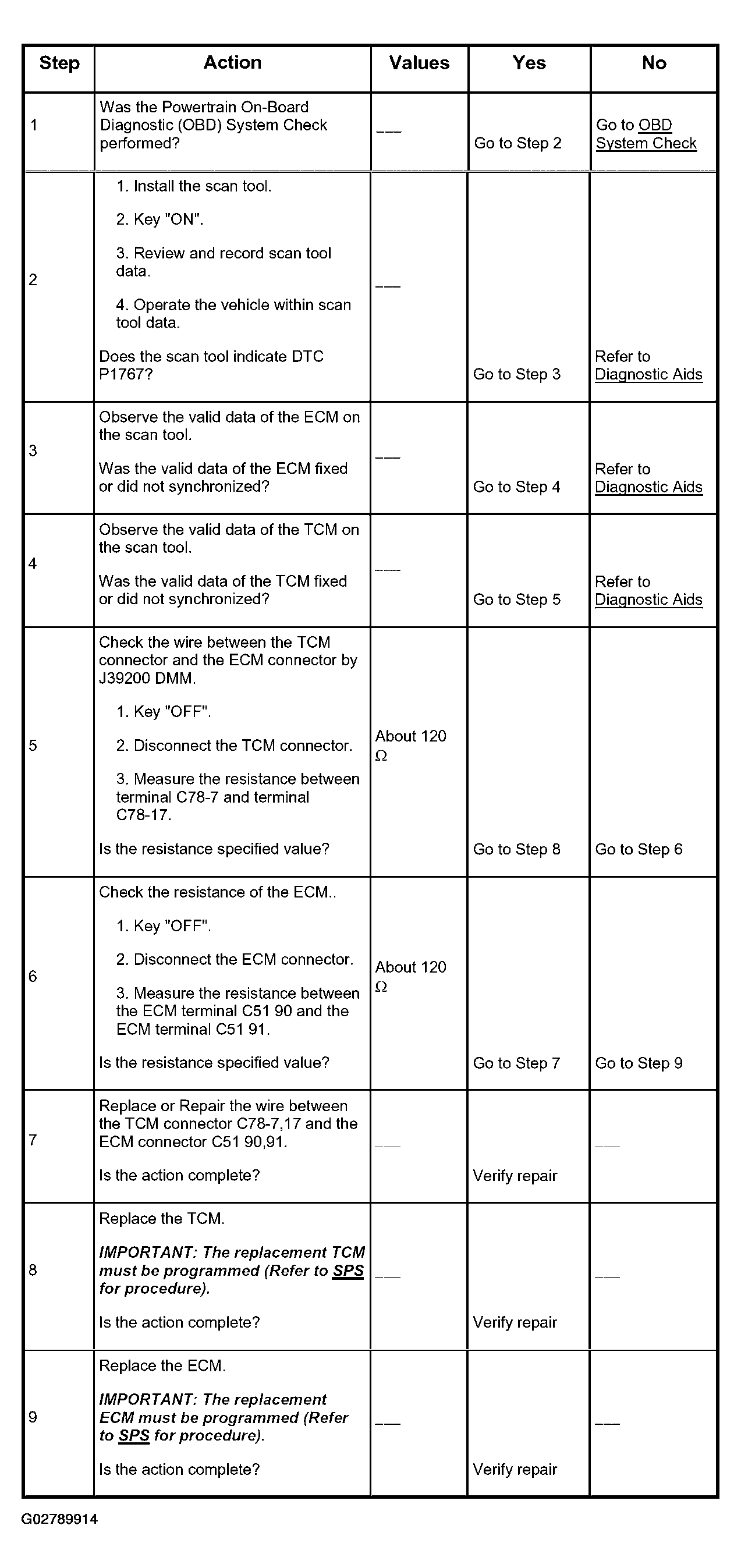

Fig 1: DTC P1767: (Flashing Code 67) CAN Bus Communication Error Diagnostic Procedure Chart

G02789914

Courtesy of ISUZU MOTOR CO.
