Engine Coolant Temperature Sensor

ENGINE COOLANT TEMPERATURE SENSOR CHART

°C °F OHMS
Temperature vs. Resistance Values (approximate)
100 212 177
80 176 332
60 140 667
45 113 1188
35 95 1802
25 77 2796
15 59 4450
5 41 7280
-5 23 12300
-15 5 21450
-30 -22 52700
-40 -40 100700

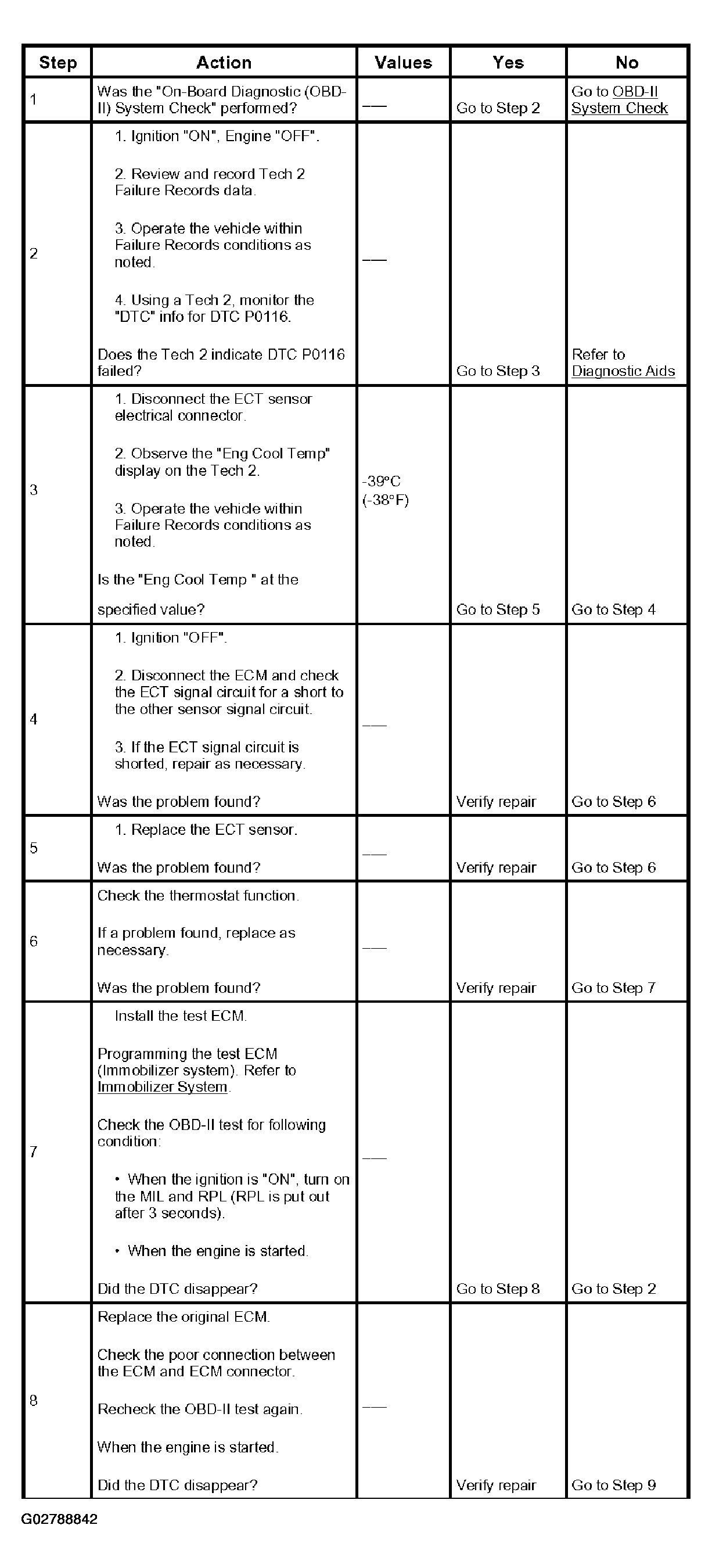

Fig 1: Identifying Diagnostic Chart (DTC P0116 - Engine Coolant Temperature Circuit Range/Performance Problem) (1 Of 2)
G02788842Courtesy of ISUZU MOTOR CO.

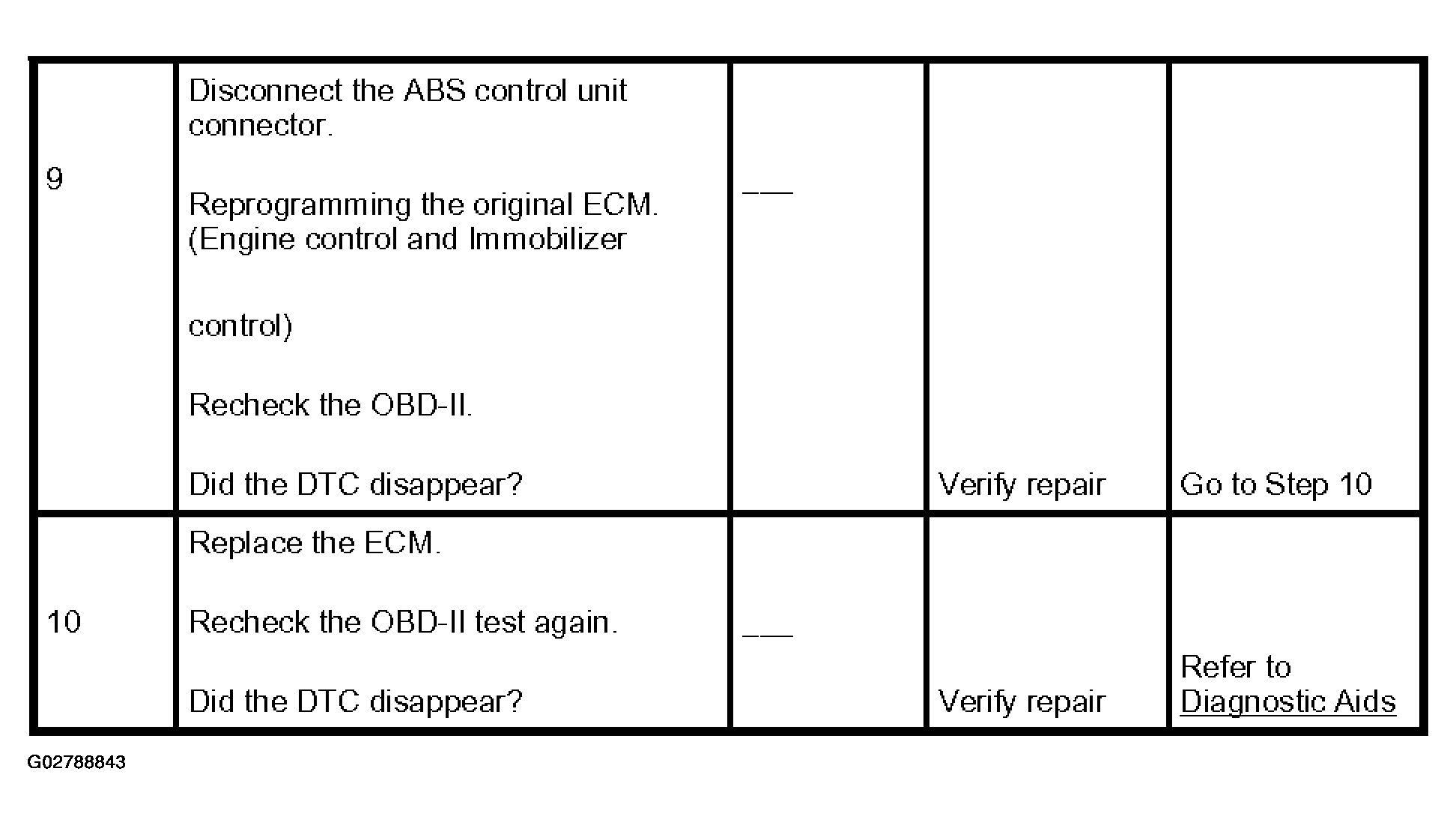

Fig 2: Identifying Diagnostic Chart (DTC P0116 - Engine Coolant Temperature Circuit Range/Performance Problem) (2 Of 2)
G02788843Courtesy of ISUZU MOTOR CO.
