Intake Air Temperature Sensor
INTAKE AIR TEMPERATURE SENSOR CHART
| °C |
°F |
OHMS |
| Temperature vs. Resistance Values (approximate) |
| 100 |
212 |
177 |
| 80 |
176 |
332 |
| 60 |
140 |
667 |
| 45 |
113 |
1188 |
| 35 |
95 |
1802 |
| 25 |
77 |
2796 |
| 15 |
59 |
4450 |
| 5 |
41 |
7280 |
| -5 |
23 |
12300 |
| -15 |
5 |
21450 |
| -30 |
-22 |
52700 |
| -40 |
-40 |
100700 |

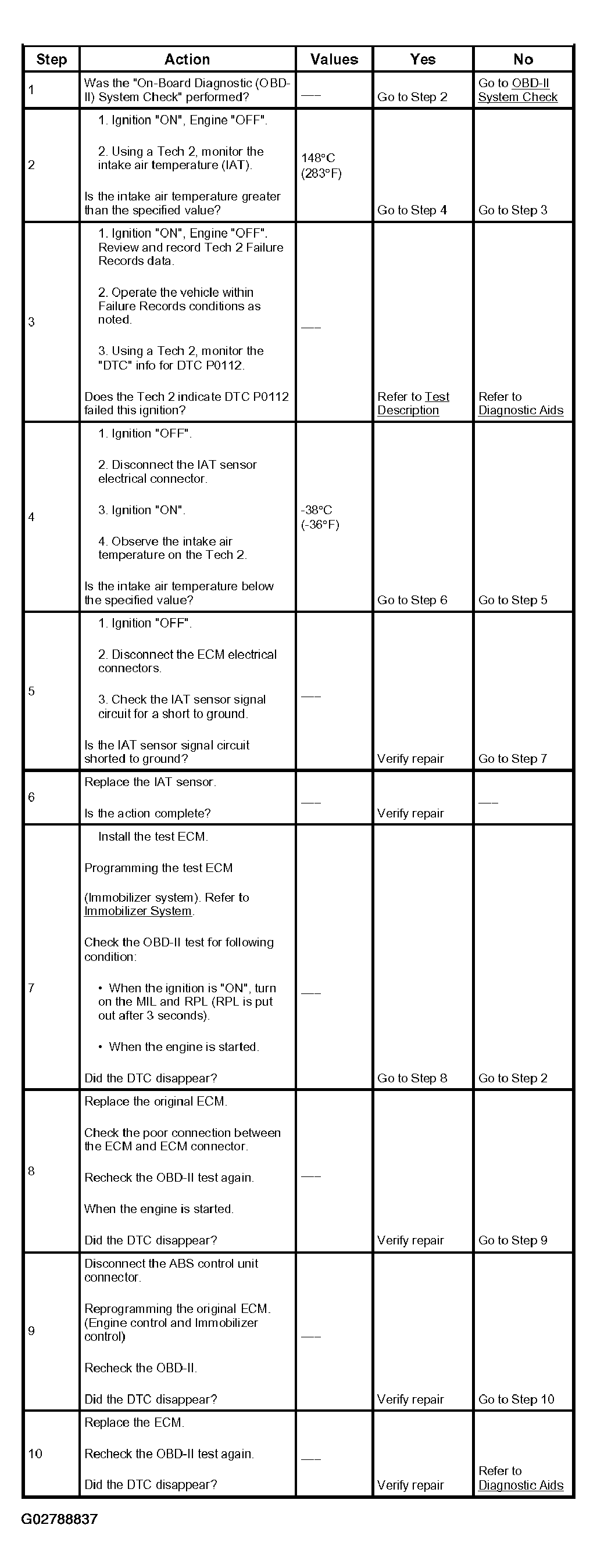

DTC P0112 - Intake Air Temperature Circuit Low Input
Courtesy of ISUZU MOTOR CO.
