Installation Procedure

  1. Slide the into EVAP canister vent solenoid into the mounting bracket.

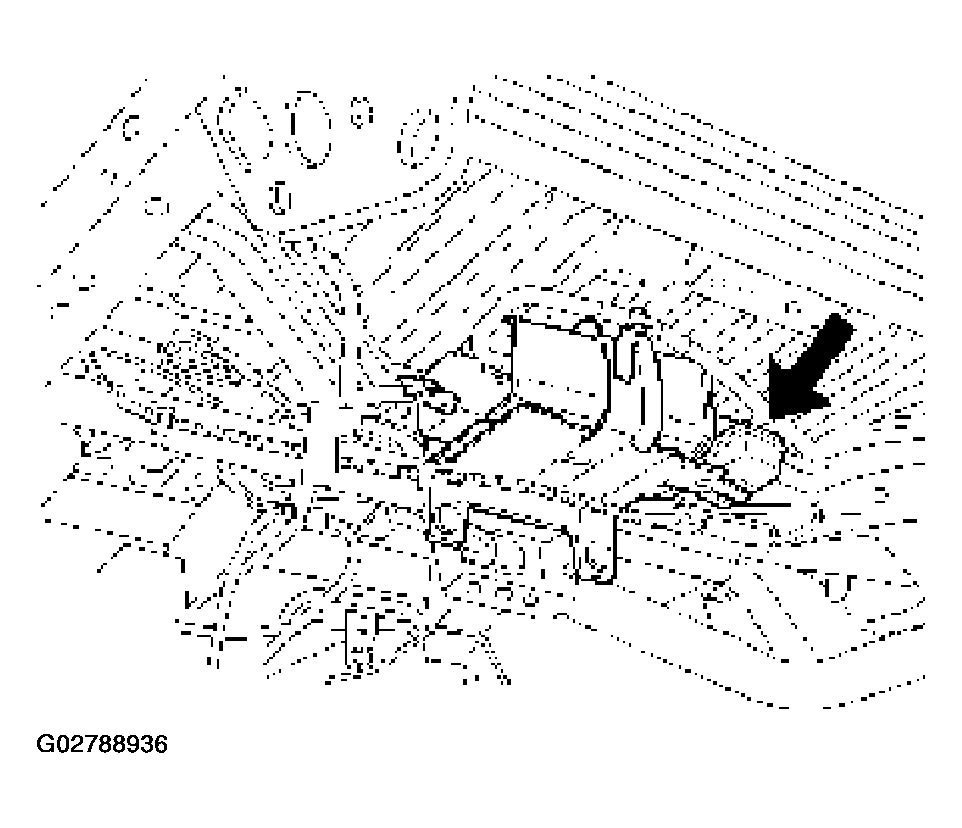

    Fig 1: Sliding Into Evap Canister Vent Solenoid Into Mounting Bracket
    G02788936Courtesy of ISUZU MOTOR CO.
  2. Connect the connector and hose.

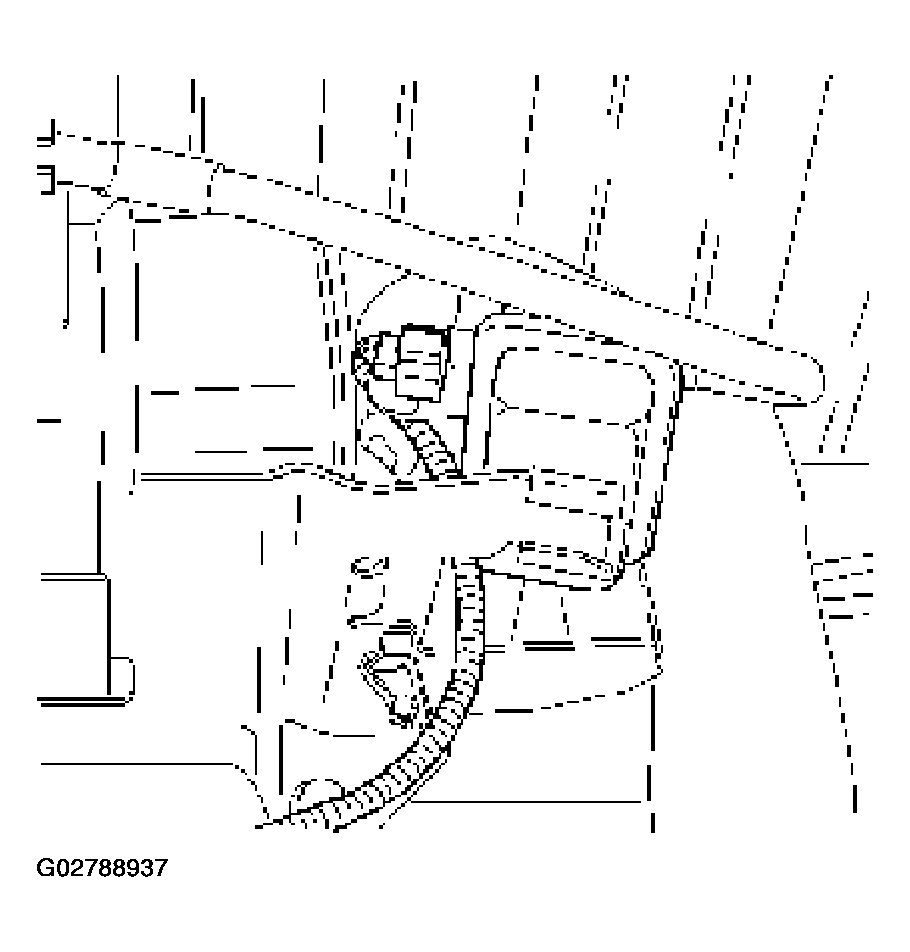

    Fig 2: Connecting Connector And Hose
    G02788937Courtesy of ISUZU MOTOR CO.
  3. Connect the negative battery cable.
