DTC P0758: (FLASHING CODE 32) Solenoid 1-2/3-4 Circuit: Notes

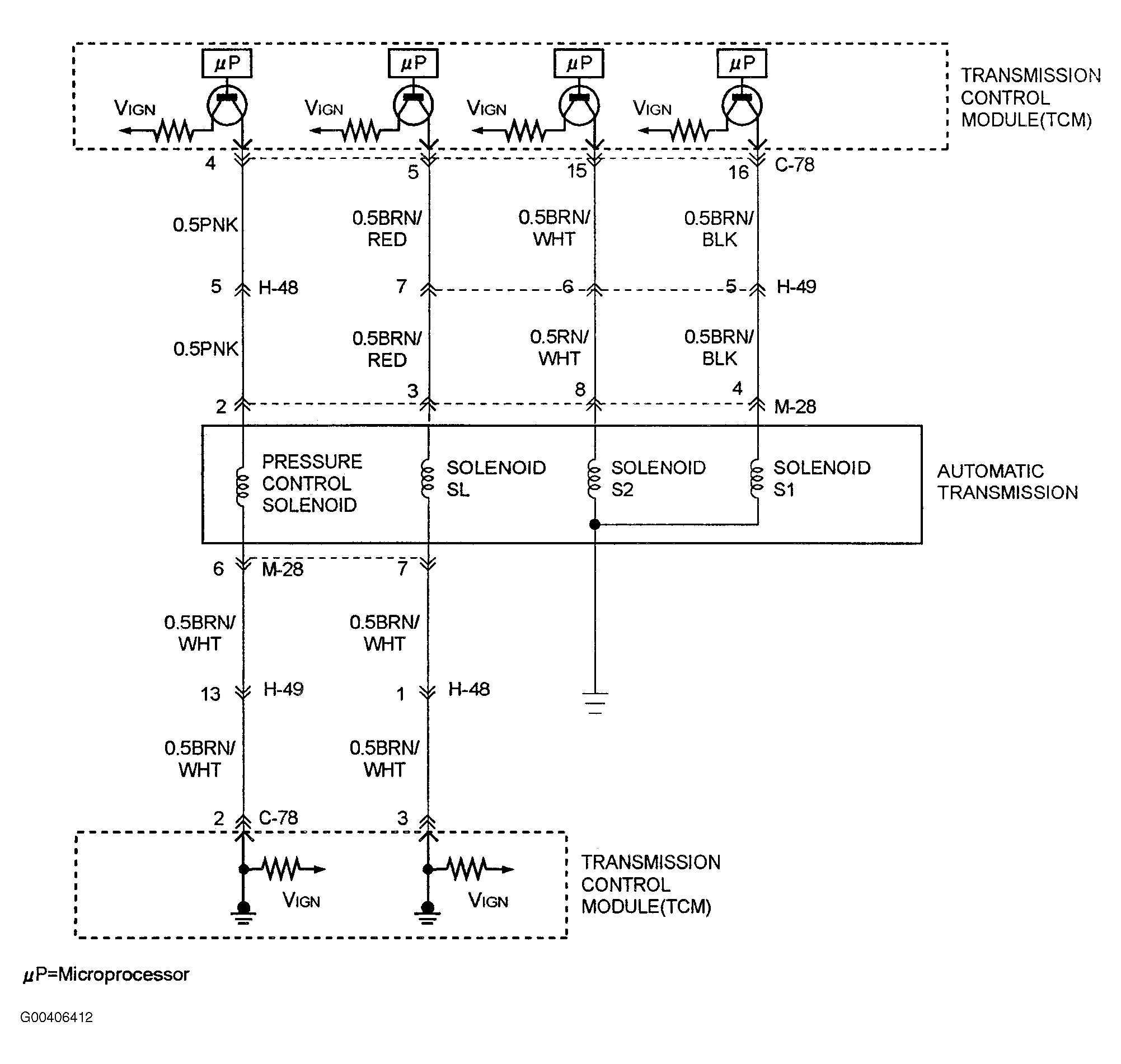

Fig 1: DTC P0758: (FLASHING CODE 32) Solenoid 1-2/3-4 Circuit Wiring Diagram

G00406412

Courtesy of ISUZU MOTOR CO.
