Installation Procedure

  1. Push the PCV valve into the rubber grommet in the left valve cover.

    Torque:  15 N.m (11.1 lb ft)

  2. Install the vacuum hose on the PCV valve and secure the vacuum hose with the clamp.

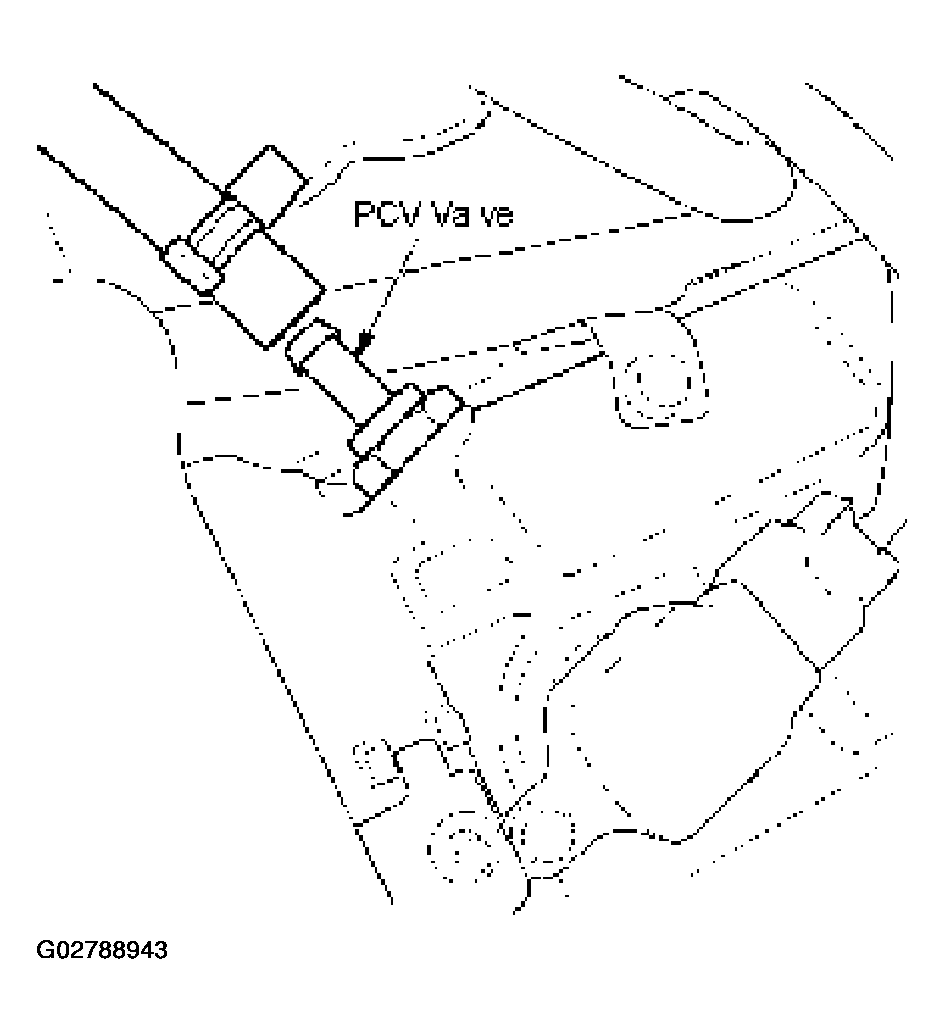

Fig 1: Installing Vacuum Hose On PCV Valve
G02788943Courtesy of ISUZU MOTOR CO.
