Removal Procedure

  1. Disconnect the negative battery cable.
  2. Remove the engine cover
  3. The MAF/IAT sensor is located in the intake air duct, behind the throttle body.
  4. Disconnect the electrical connector from the IAT sensor.

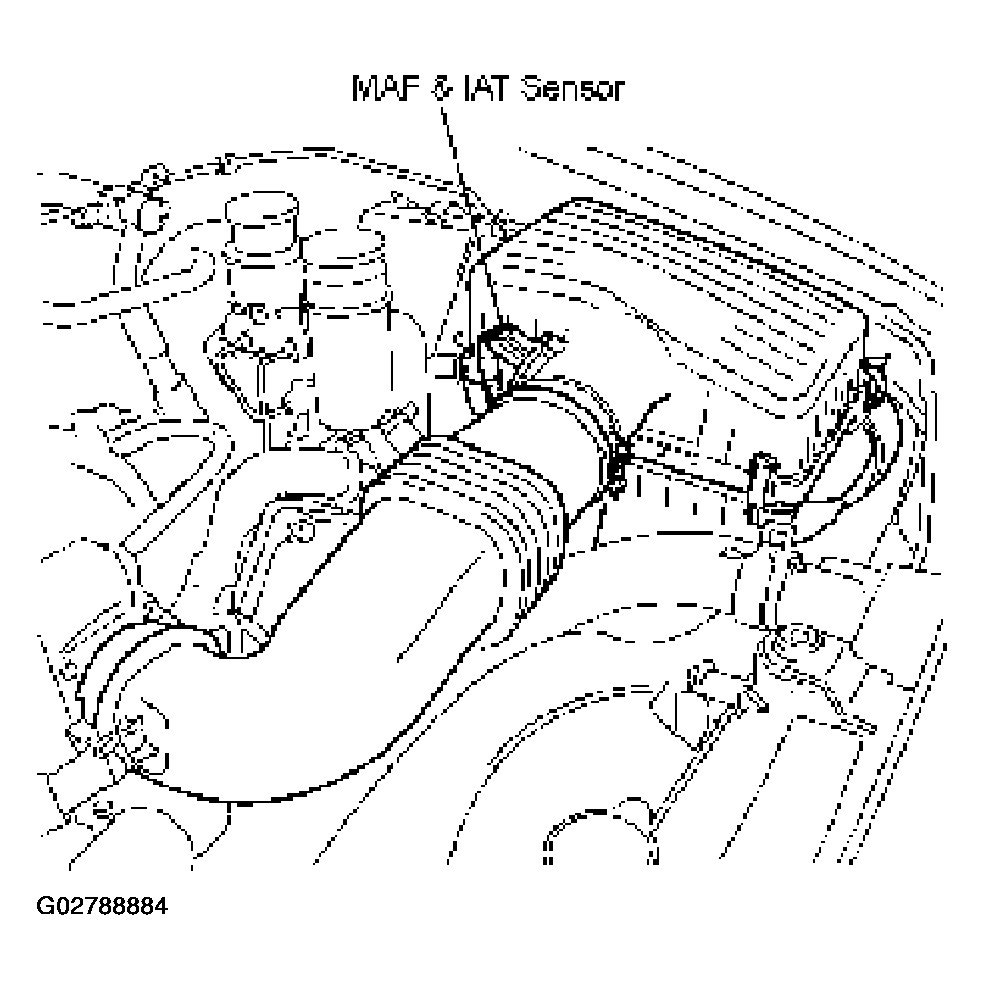

    Fig 1: Disconnecting Electrical Connector From IAT Sensor
    G02788884Courtesy of ISUZU MOTOR CO.
  5. Remove two bolts and the MAF/IAT sensor from the intake air duct.
