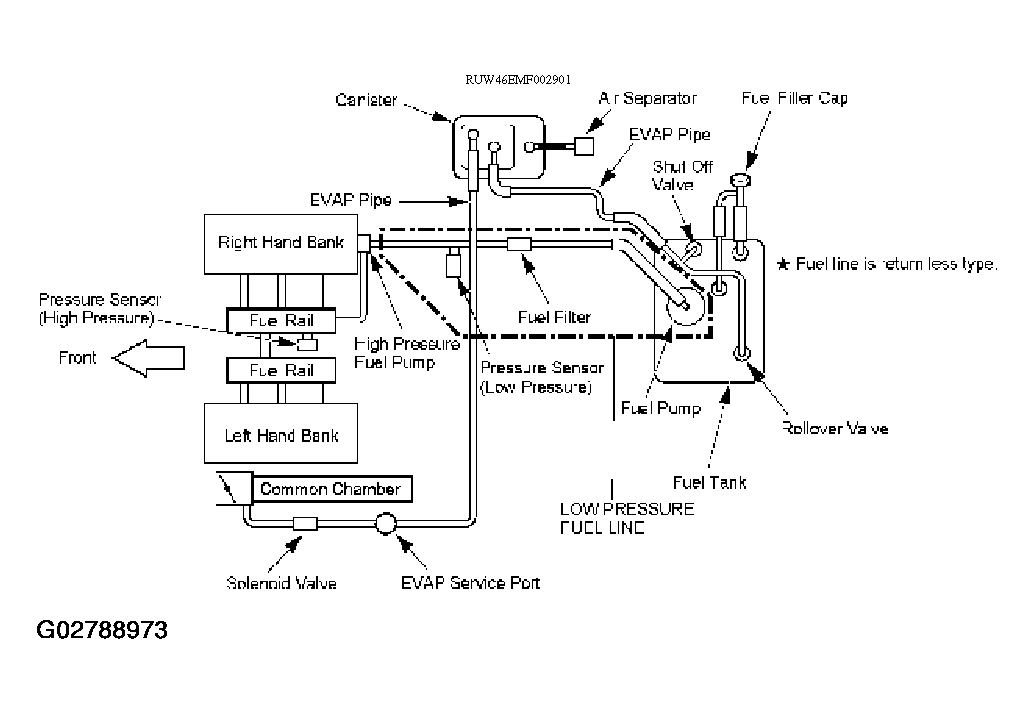

Low Pressure Fuel Line
The fuel is delivered from the pump which located in the fuel tank. Fuel filter and low pressure sensor are in the fuel line. Fuel pressure is controlled by ECM and fuel pump controller. There is no fuel return piping. Fuel pressure: 350 Kpa (ECT is above 90°C) Fuel valve: 550Kpa (ECT is below 90°C)
