Power Steering Unit and Associated Parts

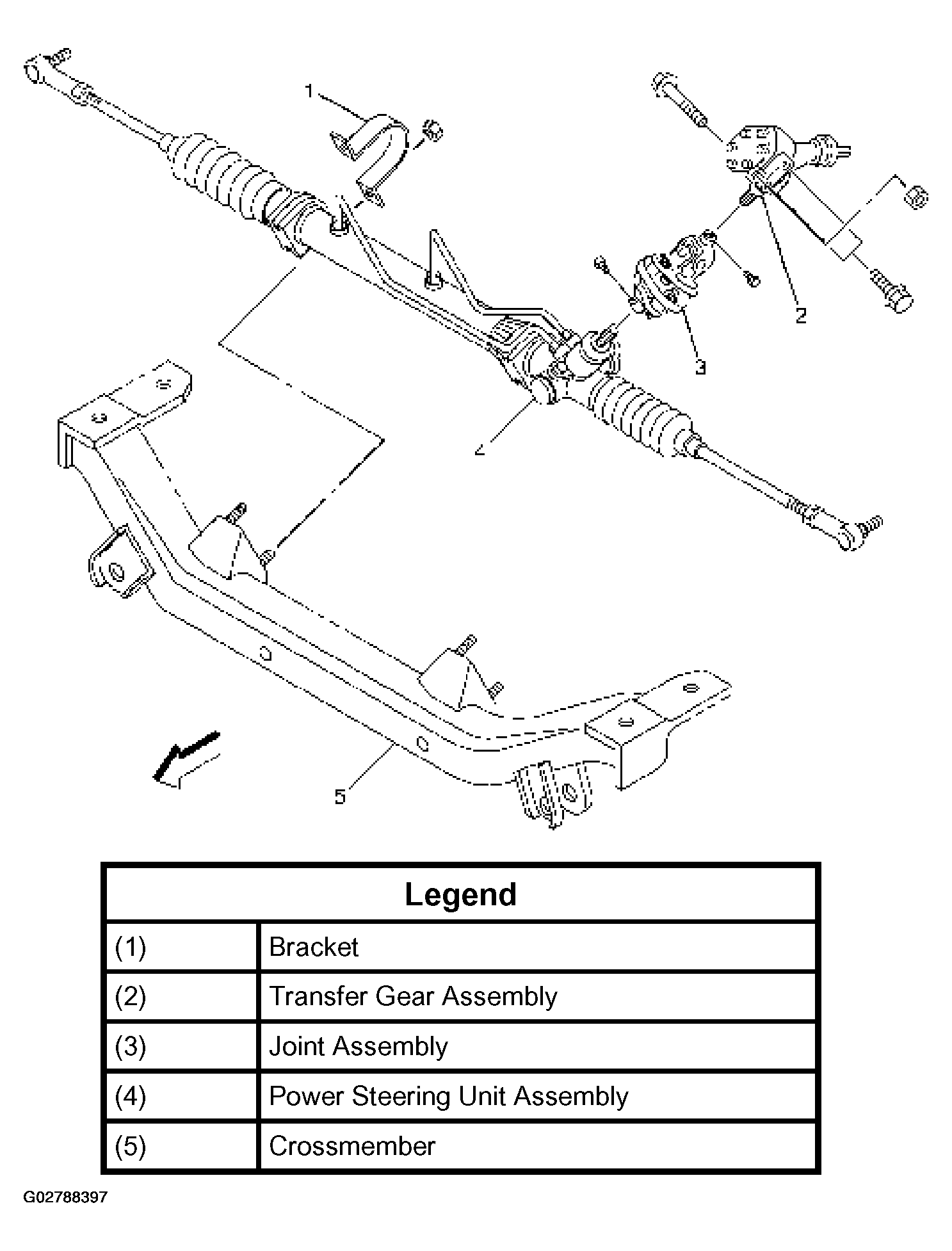

Fig 1: Identifying Power Steering Unit & Associated Parts

G02788397

Courtesy of ISUZU MOTOR CO.
