DTC P0706: Transmission Range Switch (Mode Switch) Performance: Notes

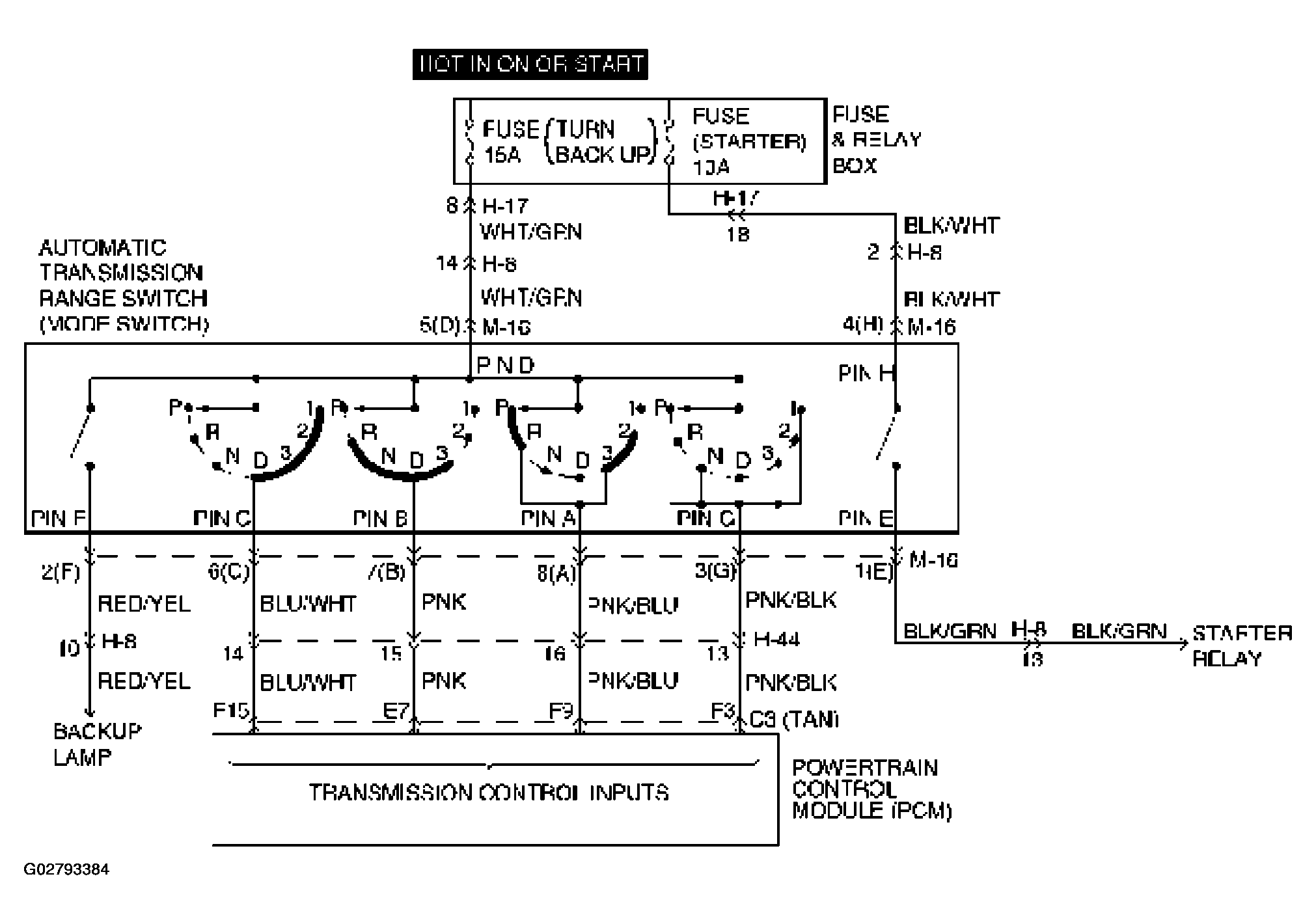

Fig 1: DTC P0706: Transmission Range Switch (Mode Switch) Performance Circuit Diagram

G02793384

Courtesy of ISUZU MOTOR CO.
