Circuit Diagram

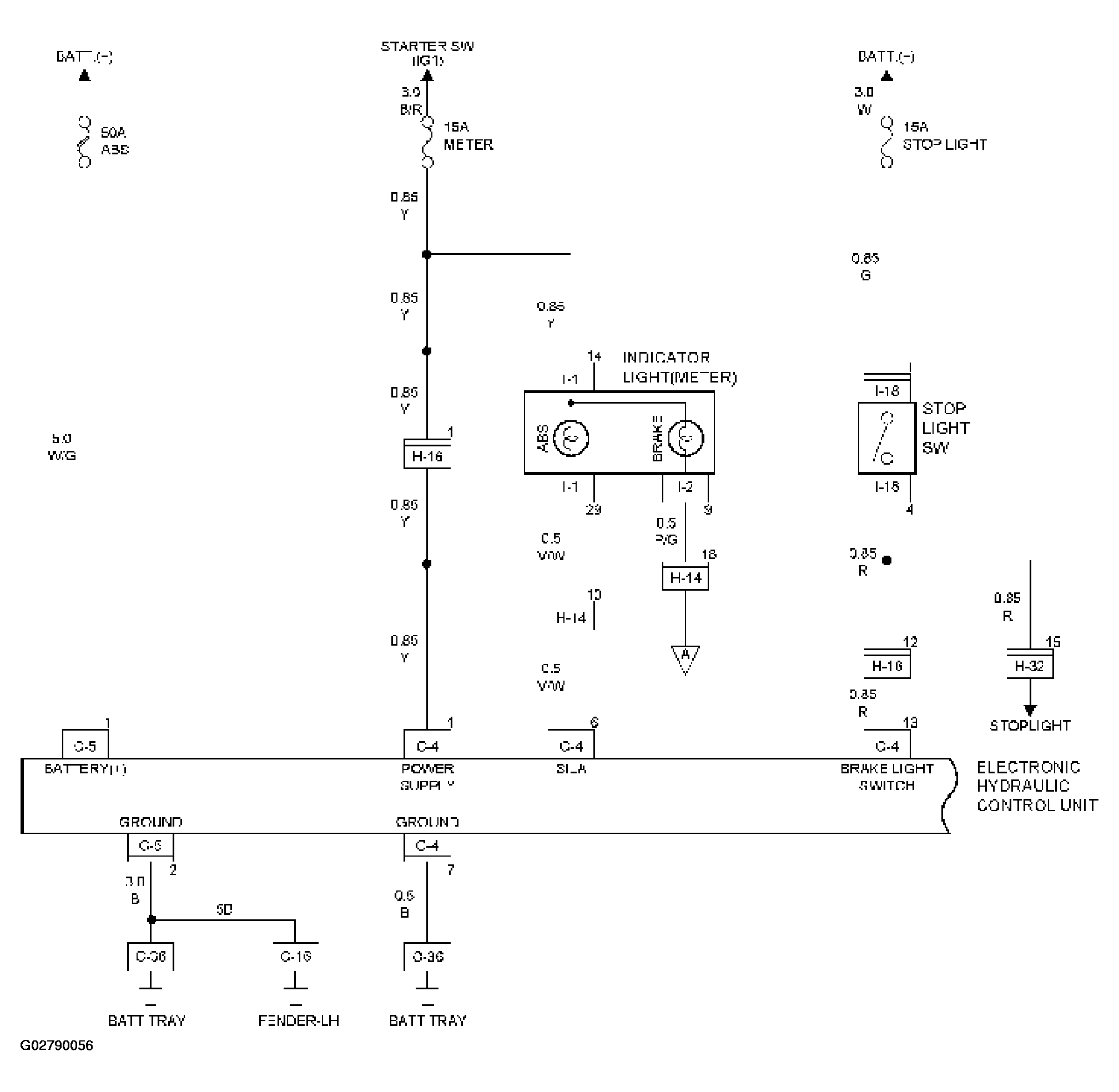

Fig 1: Circuit Diagram (1 Of 3)

G02790056

Courtesy of ISUZU MOTOR CO.

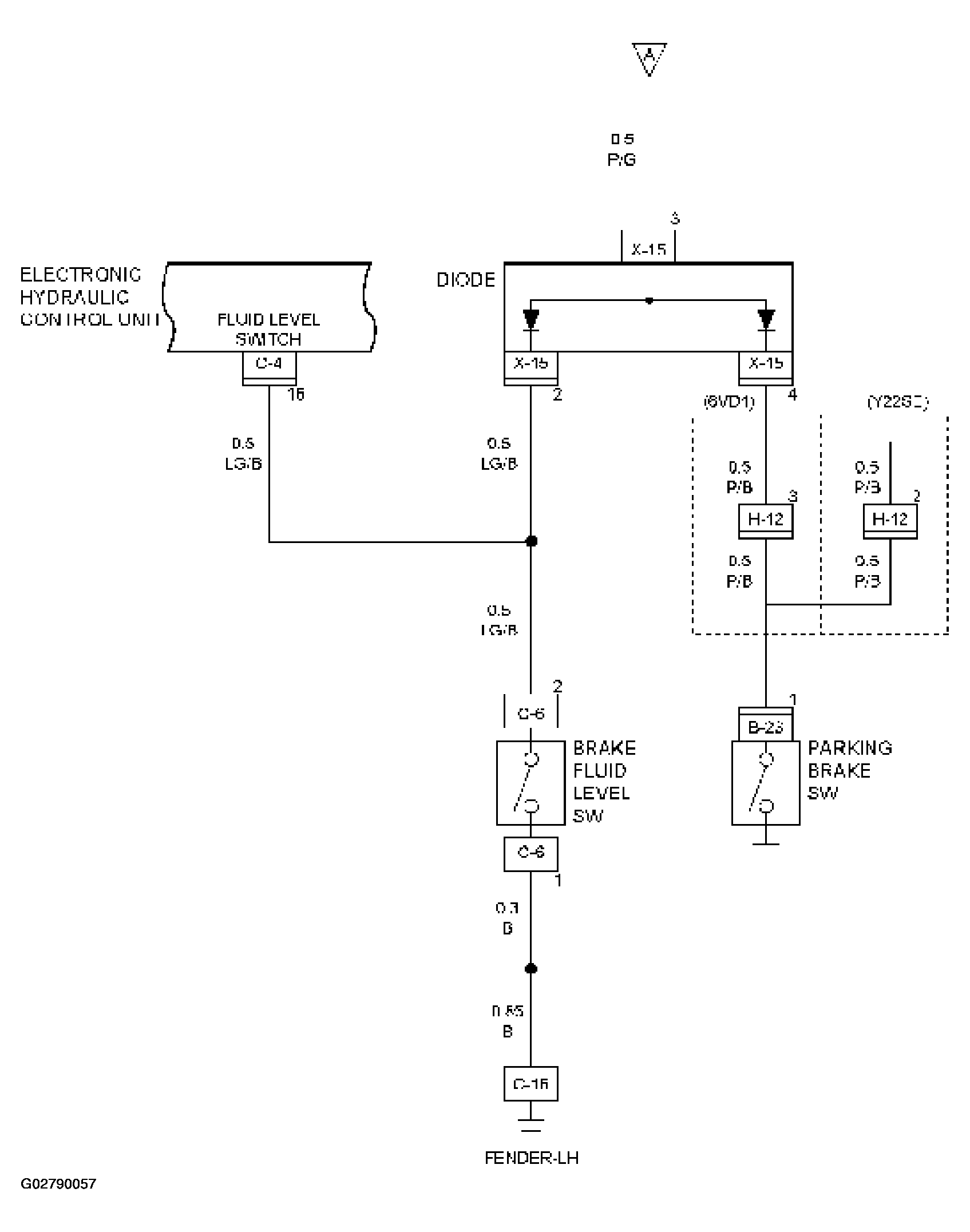

Fig 2: Circuit Diagram (2 Of 3)

G02790057

Courtesy of ISUZU MOTOR CO.

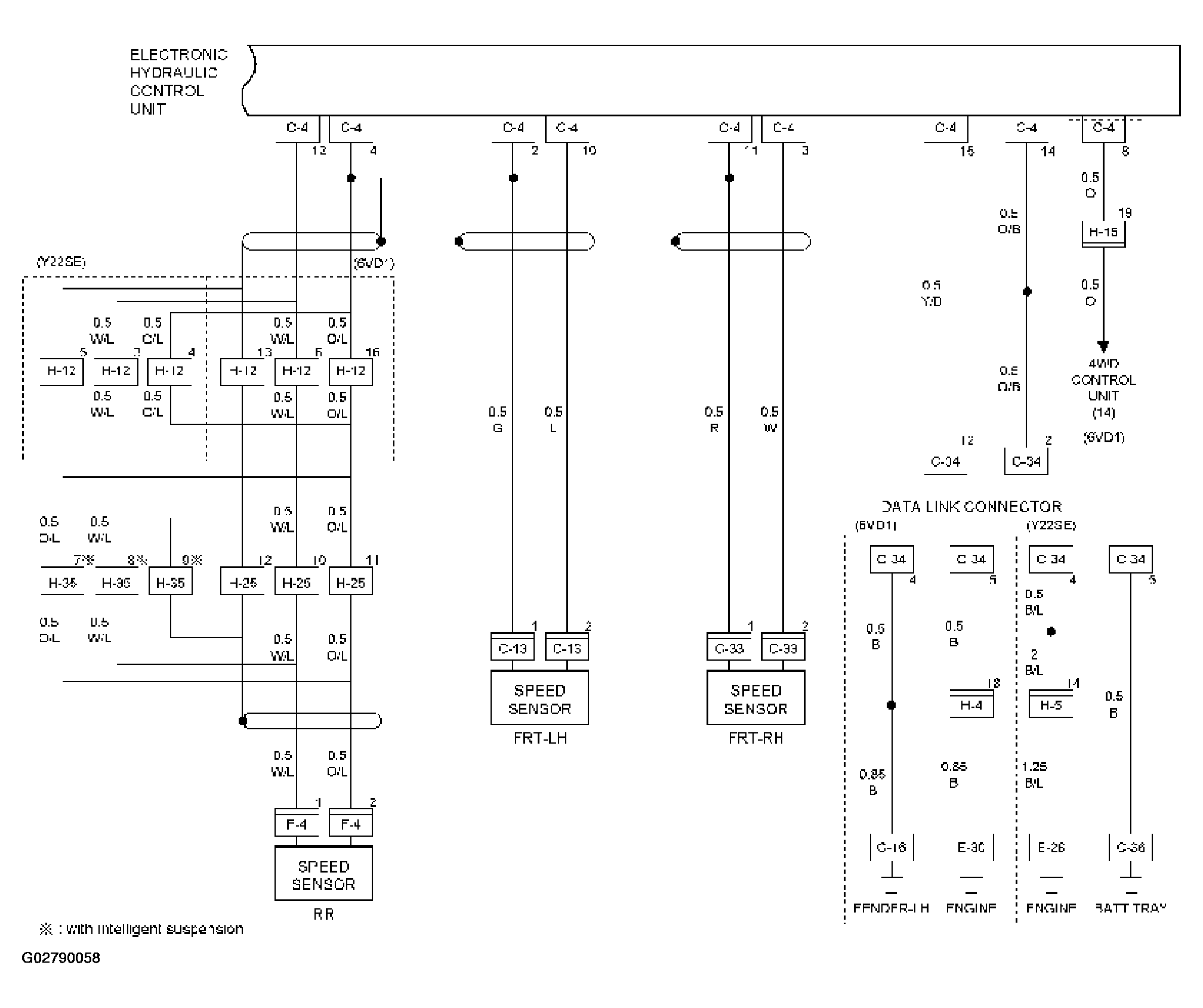

Fig 3: Circuit Diagram (3 Of 3)

G02790058

Courtesy of ISUZU MOTOR CO.
