Axle Disconnect Controller

Fig 1: Identifying Axle Disconnect Controller (1 Of 2)
G02714507Courtesy of ISUZU MOTOR CO.

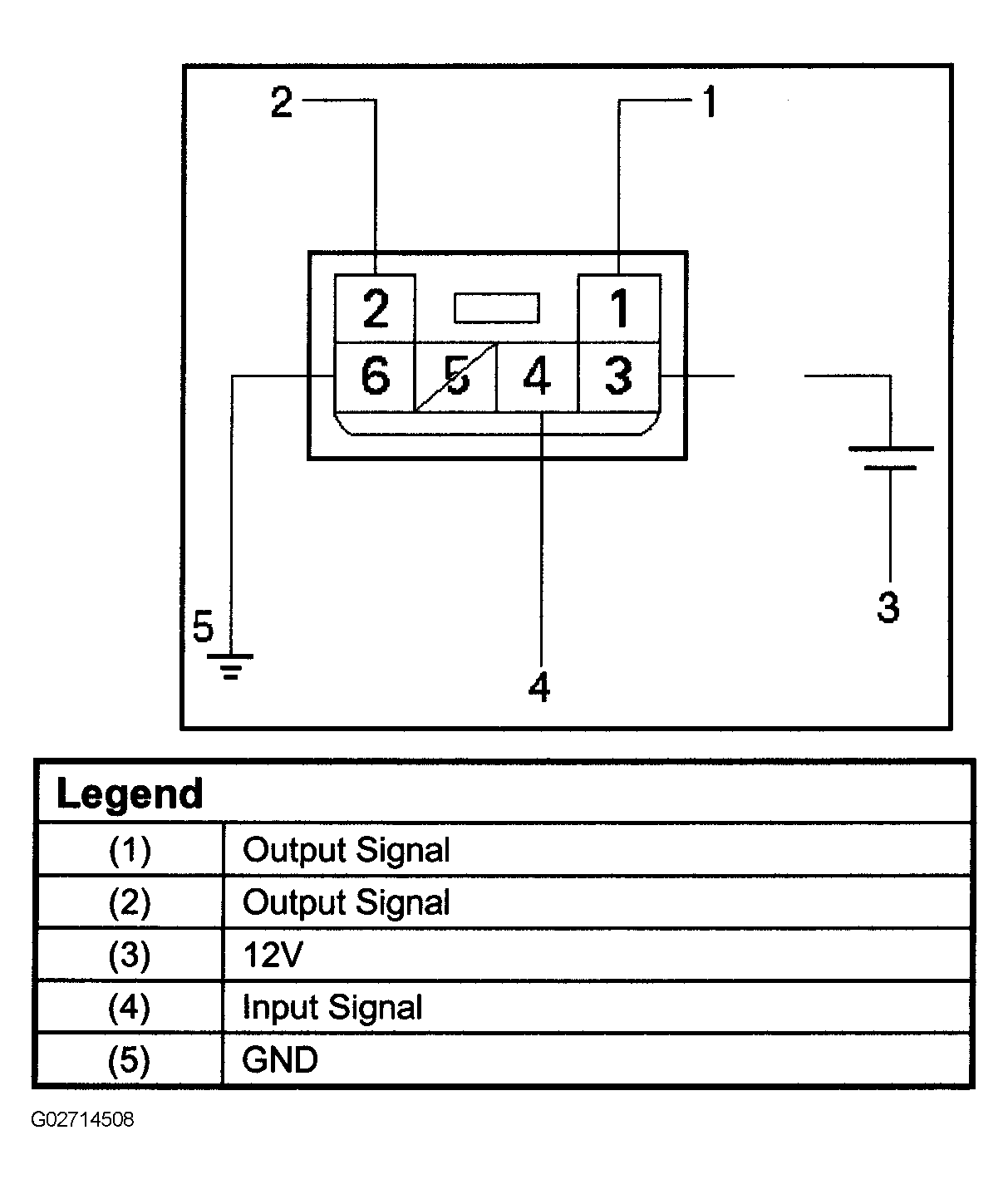

Fig 2: Identifying Axle Disconnect Controller (2 Of 2)
G02714508Courtesy of ISUZU MOTOR CO.
  1. Connect 12V with terminal (3) and the ground with the terminal (6).
  2. Send the signal to the terminal (4):

    2WD -> 4WD  less than 2.4V

    4WD -> 2WD  more than 9.0V

  3. Confirm the output signal from the terminals (1) & (2) (2 seconds output)
    INPUT / OUTPUT SIGNAL

      Input Signal Output Signal (2 Seconds)
      4  1  2
    2WD -> 4WD Less than 2.4V 0V 12V
    4WD -> 2WD More than 9.0V 12V 0V
  4. If the trouble occurs after above test, charge the Axle Disconnect Controller to the new one.
