Steering Column Lock System

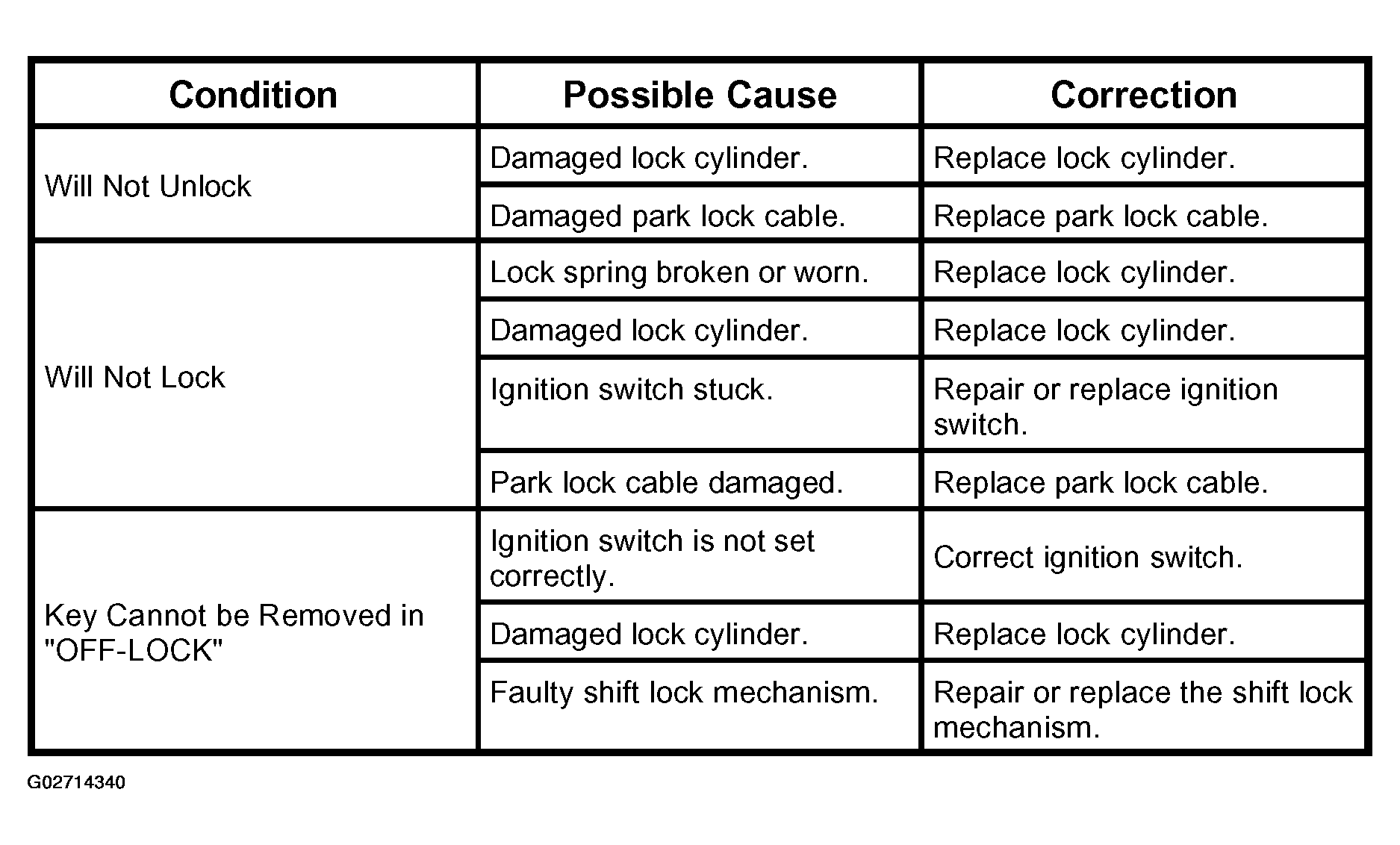

Fig 1: Power Steering Column Lock System Symptom Diagnostic Chart

G02714340

Courtesy of ISUZU MOTOR CO.
