DTC P0218 Transmission Fluid Over Temperature

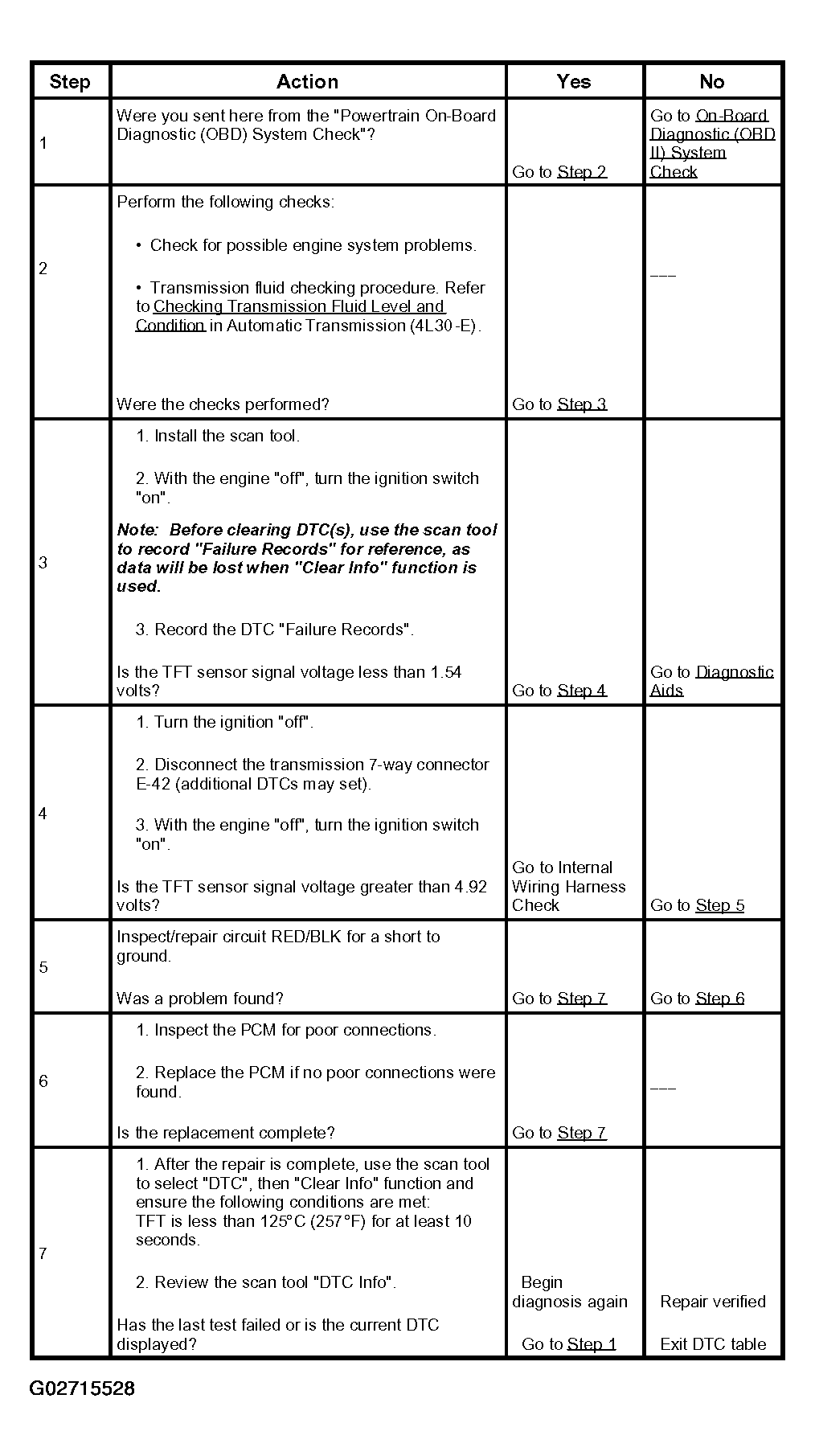

Fig 1: DTC P0218 Transmission Fluid Over Temperature Diagnostic Chart

G02715528

Courtesy of ISUZU MOTOR CO.
