Diagnostic Procedure

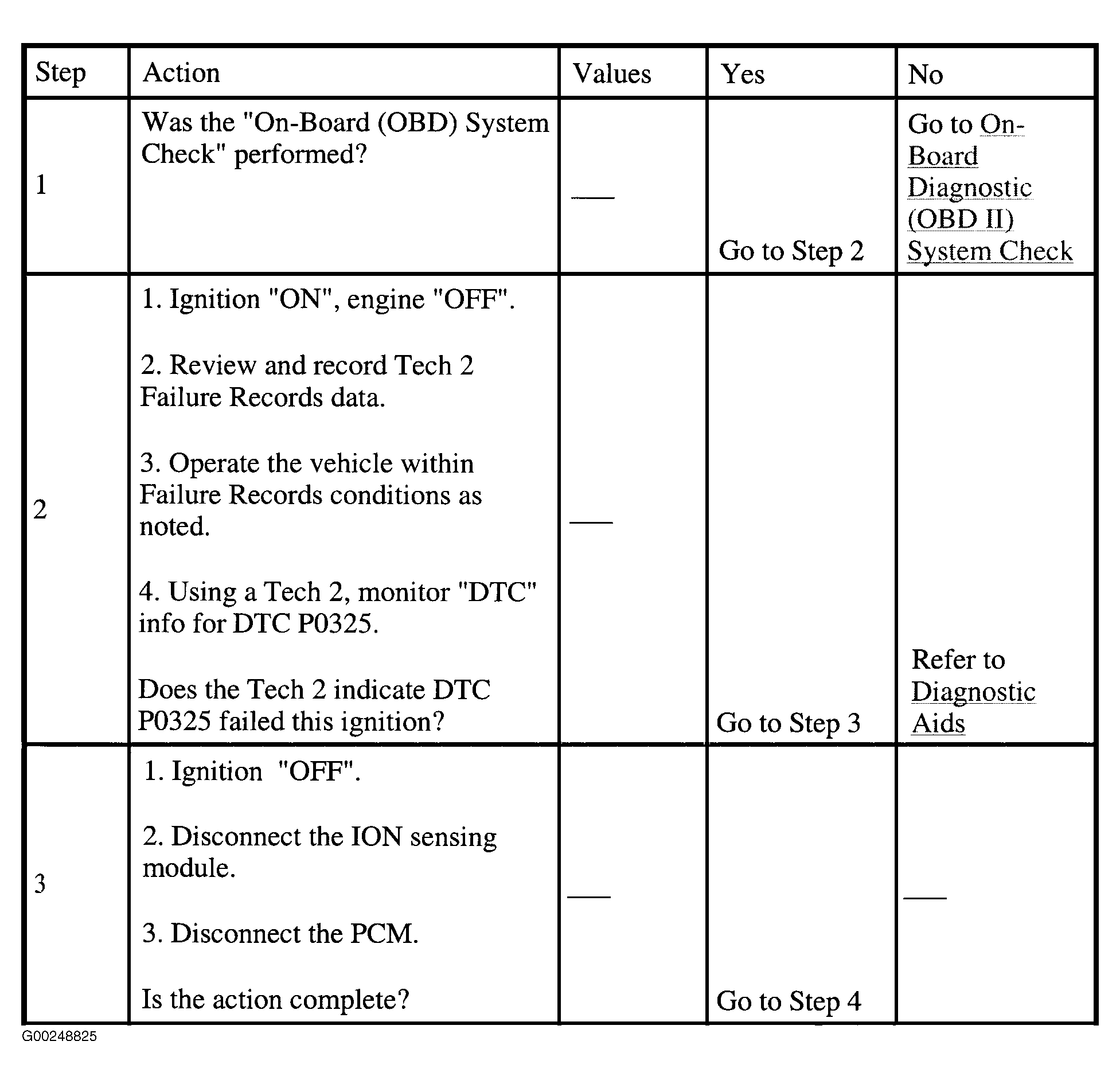

Fig 1: DTC P0325: ION Sensing Module/ION Sensing Knock Intensity Circuit Fault (Steps 1-3)
G00248825Courtesy of ISUZU MOTOR CO.

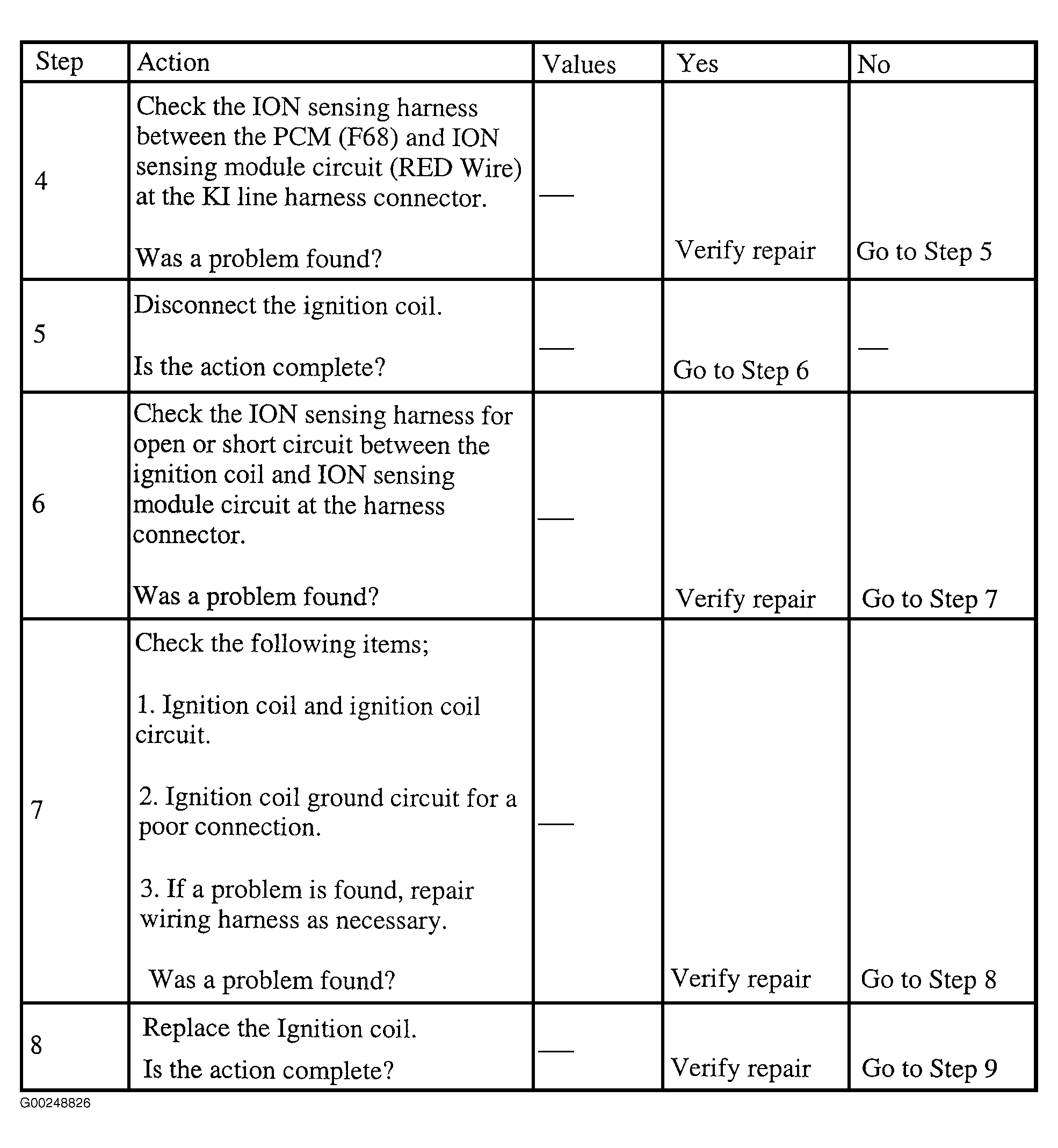

Fig 2: DTC P0325: ION Sensing Module/ION Sensing Knock Intensity Circuit Fault (Steps 4-8)
G00248826Courtesy of ISUZU MOTOR CO.

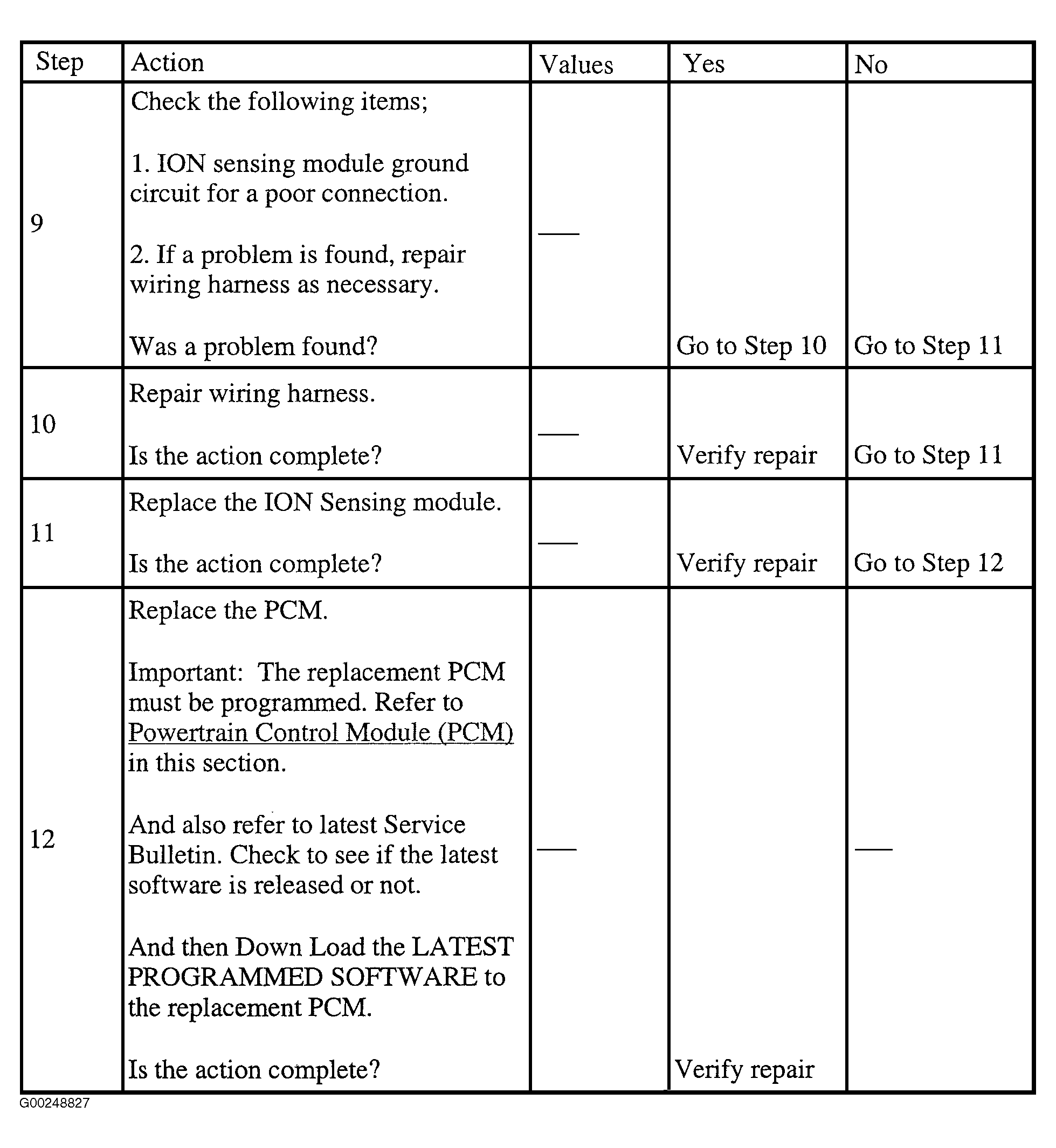

Fig 3: DTC P0325: ION Sensing Module/ION Sensing Knock Intensity Circuit Fault (Steps 9-12)
G00248827Courtesy of ISUZU MOTOR CO.
