Diagnostic Procedure

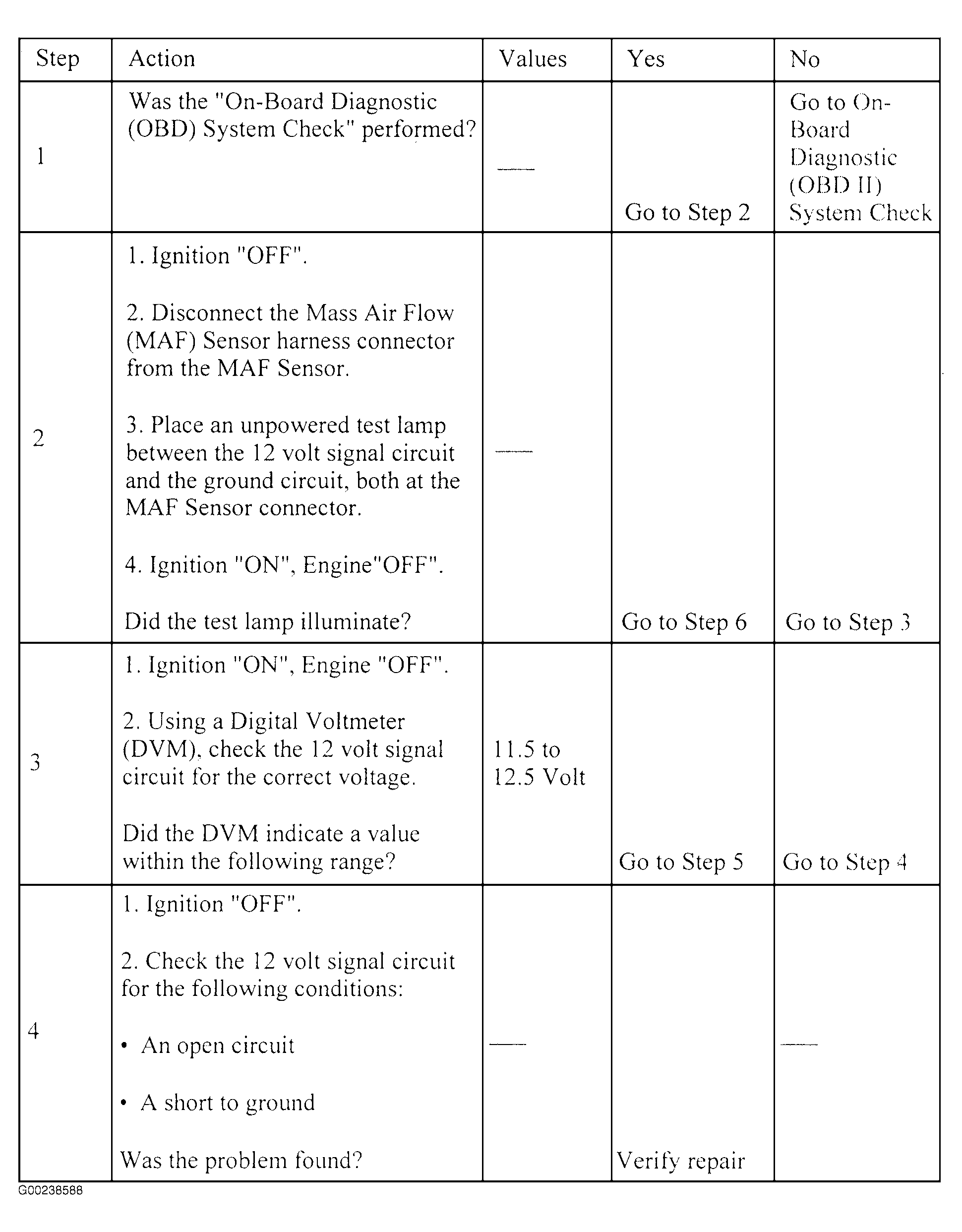

Fig 1: DTC P0101: MAF Sensor System Performance (Steps 1-4))
G00238588Courtesy of ISUZU MOTOR CO.

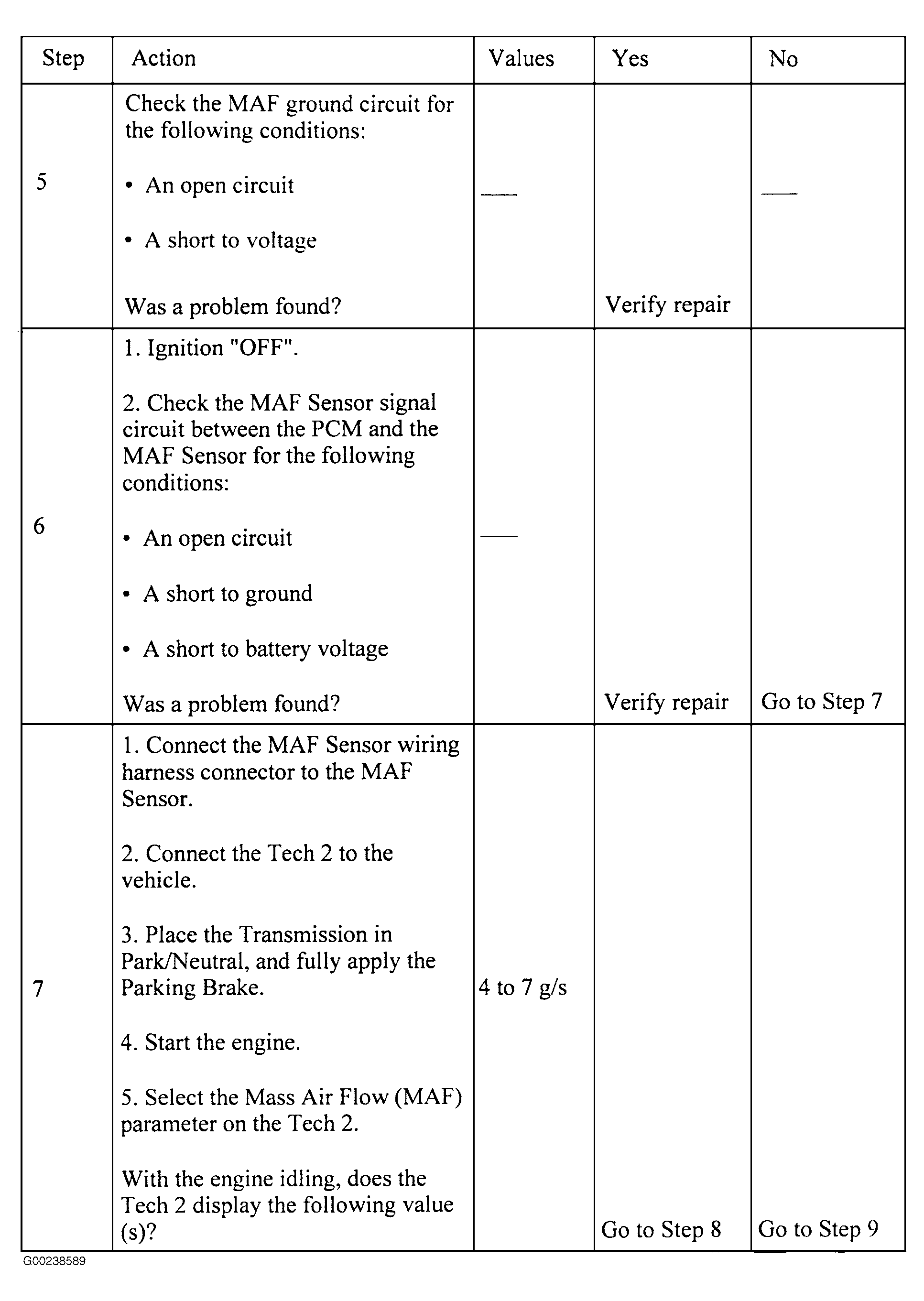

Fig 2: DTC P0101: MAF Sensor System Performance (Steps 5-7)
G00238589Courtesy of ISUZU MOTOR CO.

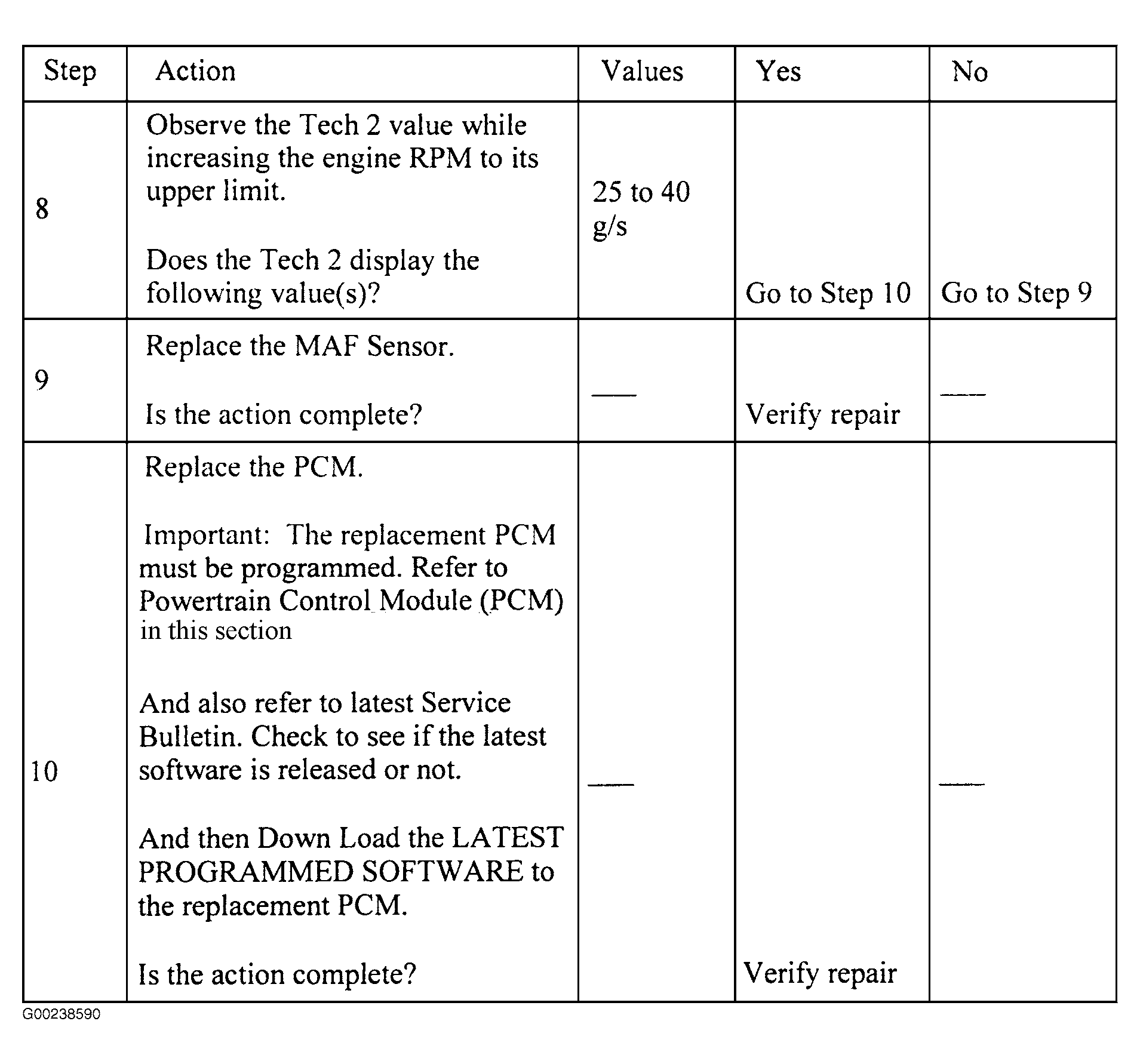

Fig 3: DTC P0101: MAF Sensor System Performance (Steps 8-10)
G00238590Courtesy of ISUZU MOTOR CO.
