Immobilizer Control Unit (ICU): Pin-Outs

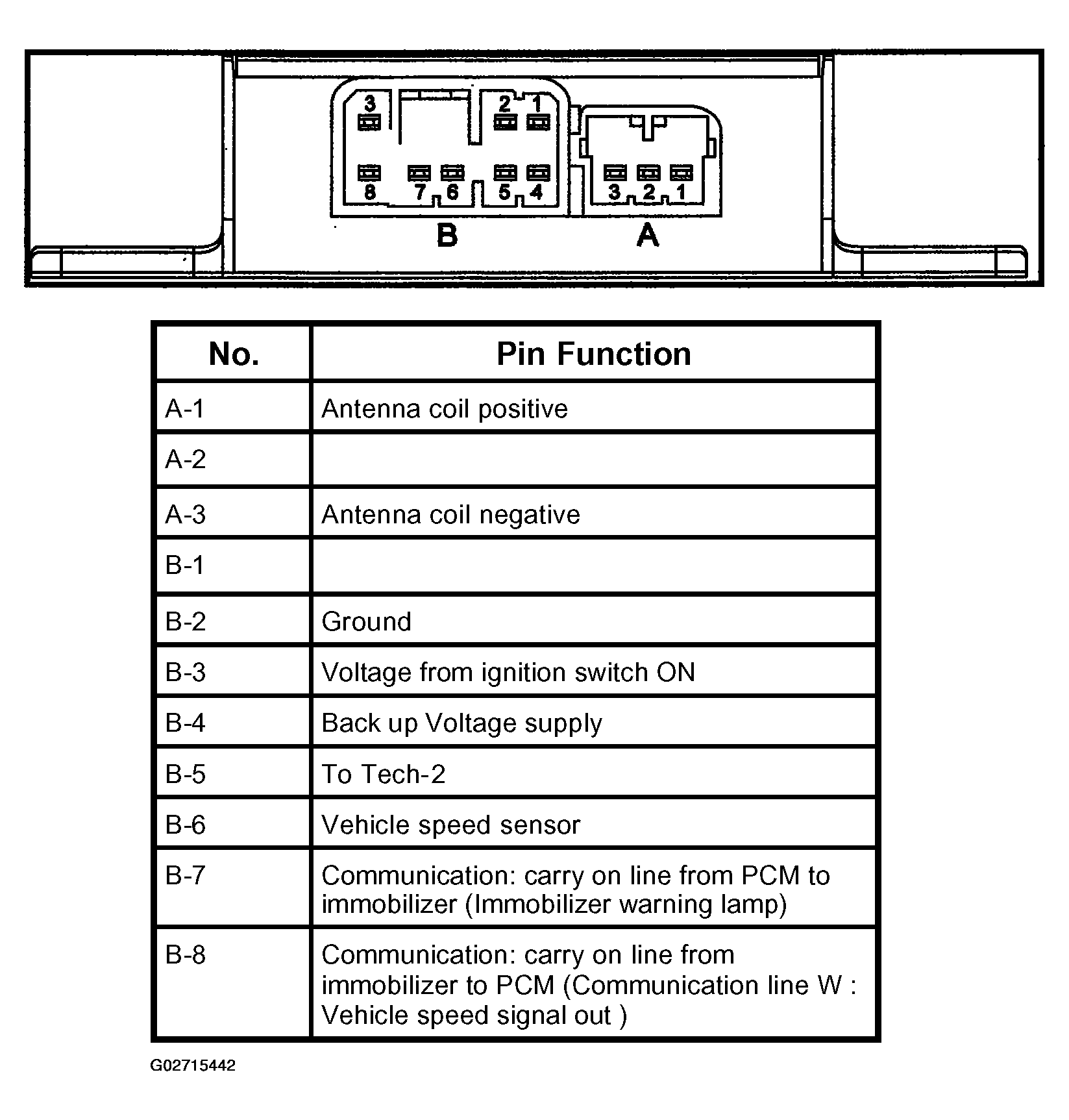

Fig 1: Identifying Immobilizer Control Unit Connector Terminals

G02715442

Courtesy of ISUZU MOTOR CO.
