DTC P1290: Electric Throttle Control Forced Idle Mode
>>
Diagnostic Procedure
Diagnostic Procedure

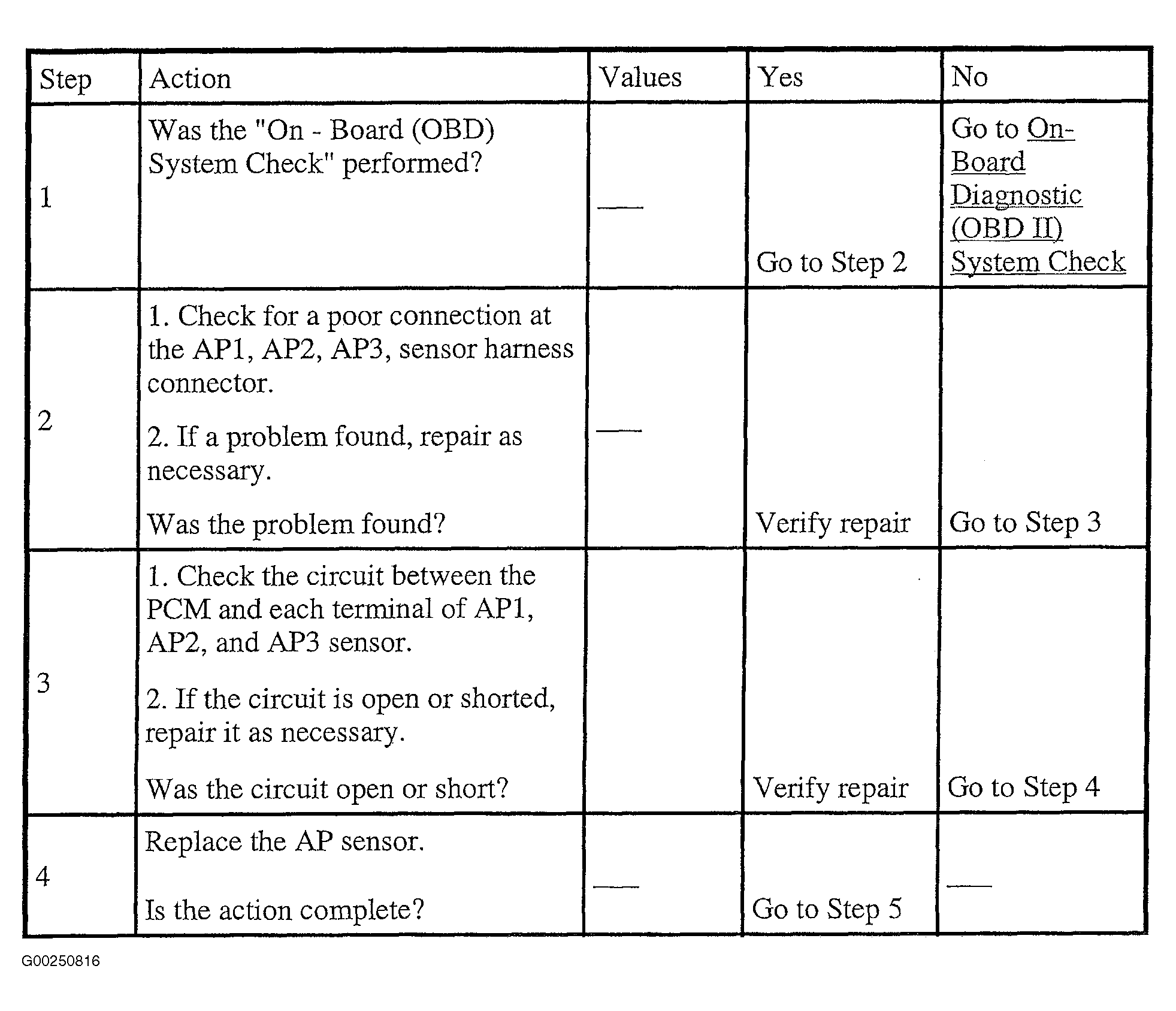

Fig 1: DTC P1290: ETC Forced Idle Mode (Steps 1-4)
Courtesy of ISUZU MOTOR CO.

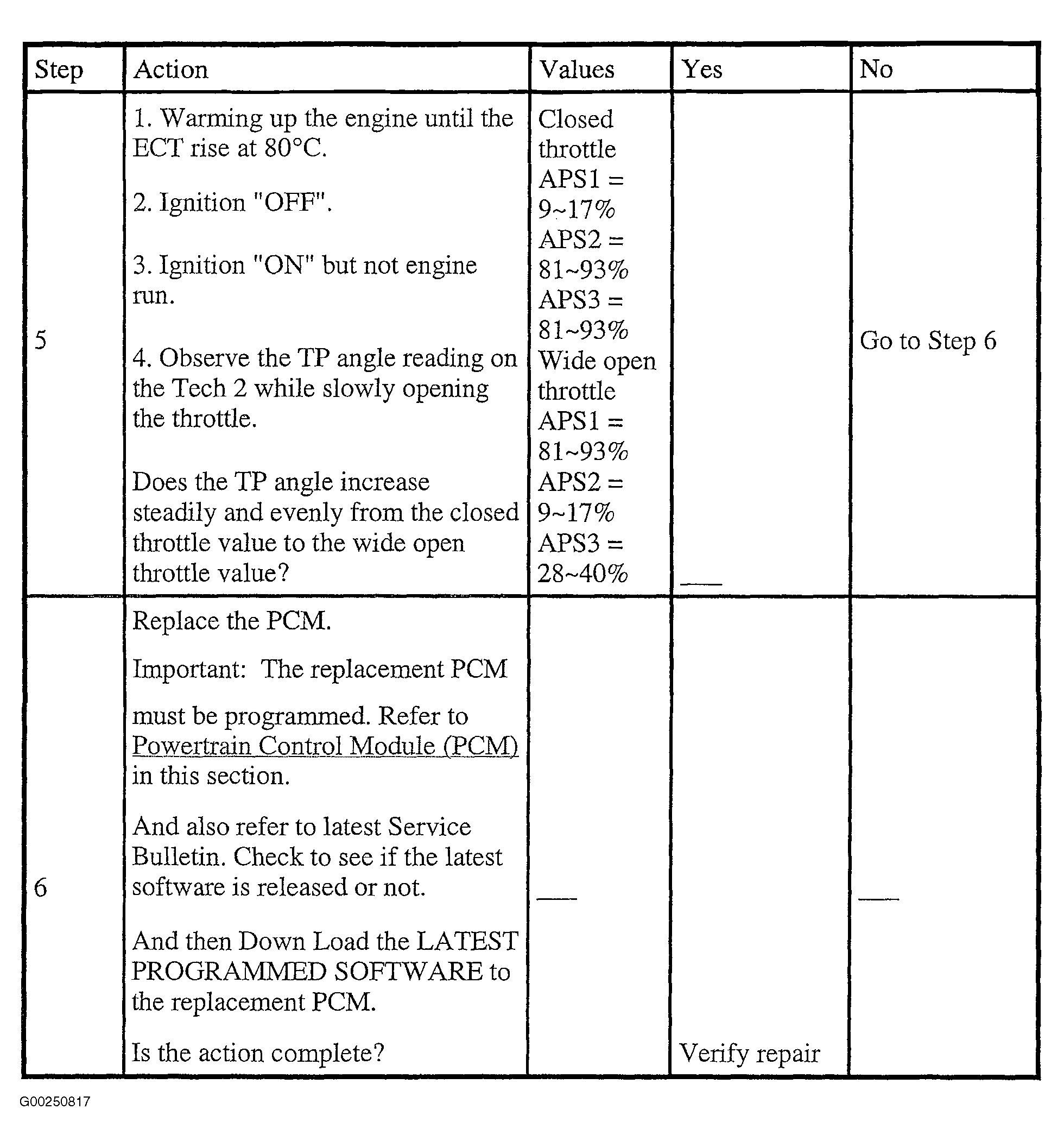

Fig 2: DTC P1290: ETC Forced Idle Mode (Steps 5 & 6)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
