Diagnostic Procedure

Fig 1: DTC P1171: Fuel System Lean During Acceleration (Steps 1-5)
G00250796Courtesy of ISUZU MOTOR CO.

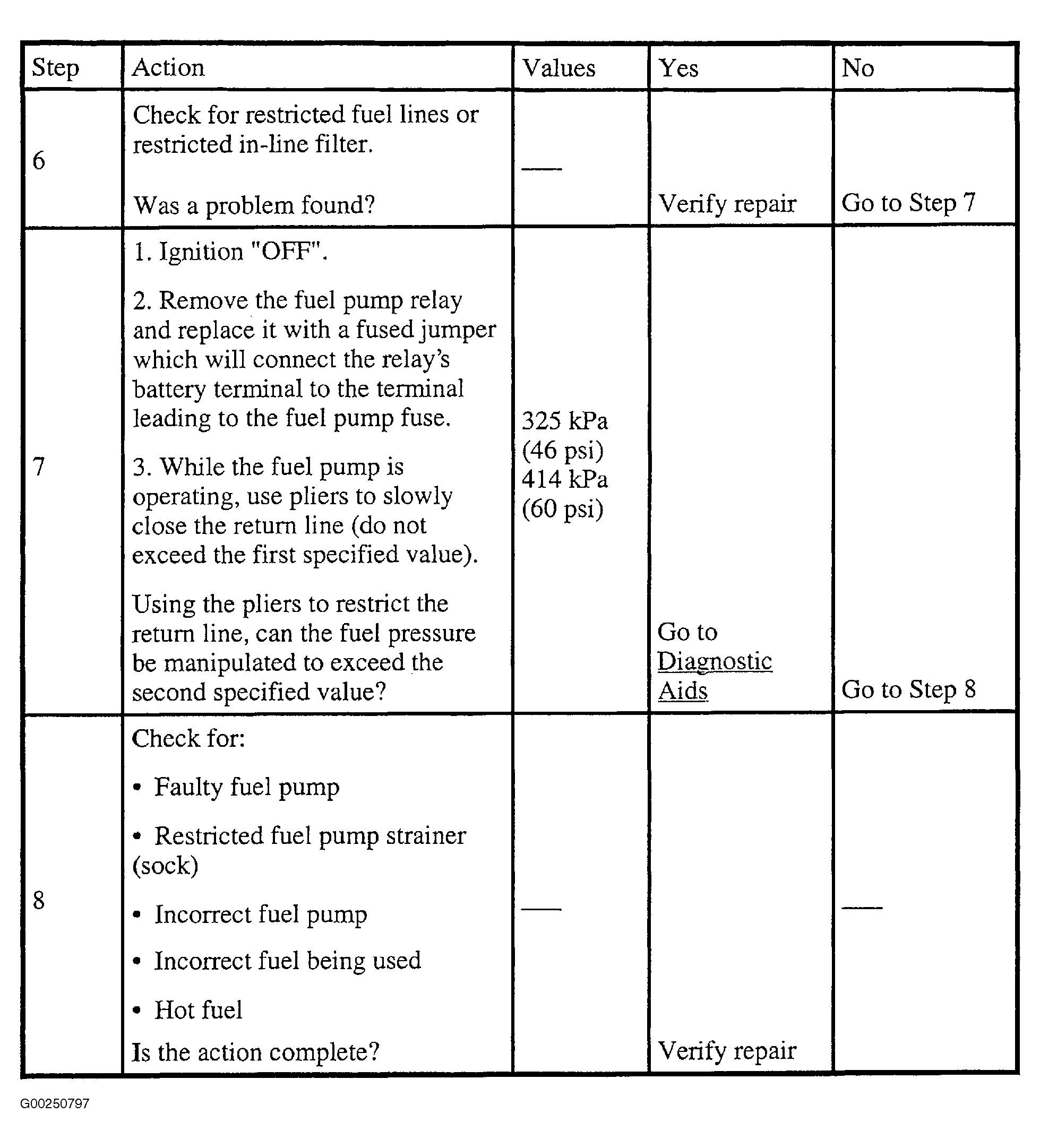

Fig 2: DTC P1171: Fuel System Lean During Acceleration (Steps 6-8)
G00250797Courtesy of ISUZU MOTOR CO.
