Diagnostic Procedure

Fig 1: DTC P1120: TPS Sensor 1 - Output Abnormal (Steps 1-6)
G00250103Courtesy of ISUZU MOTOR CO.

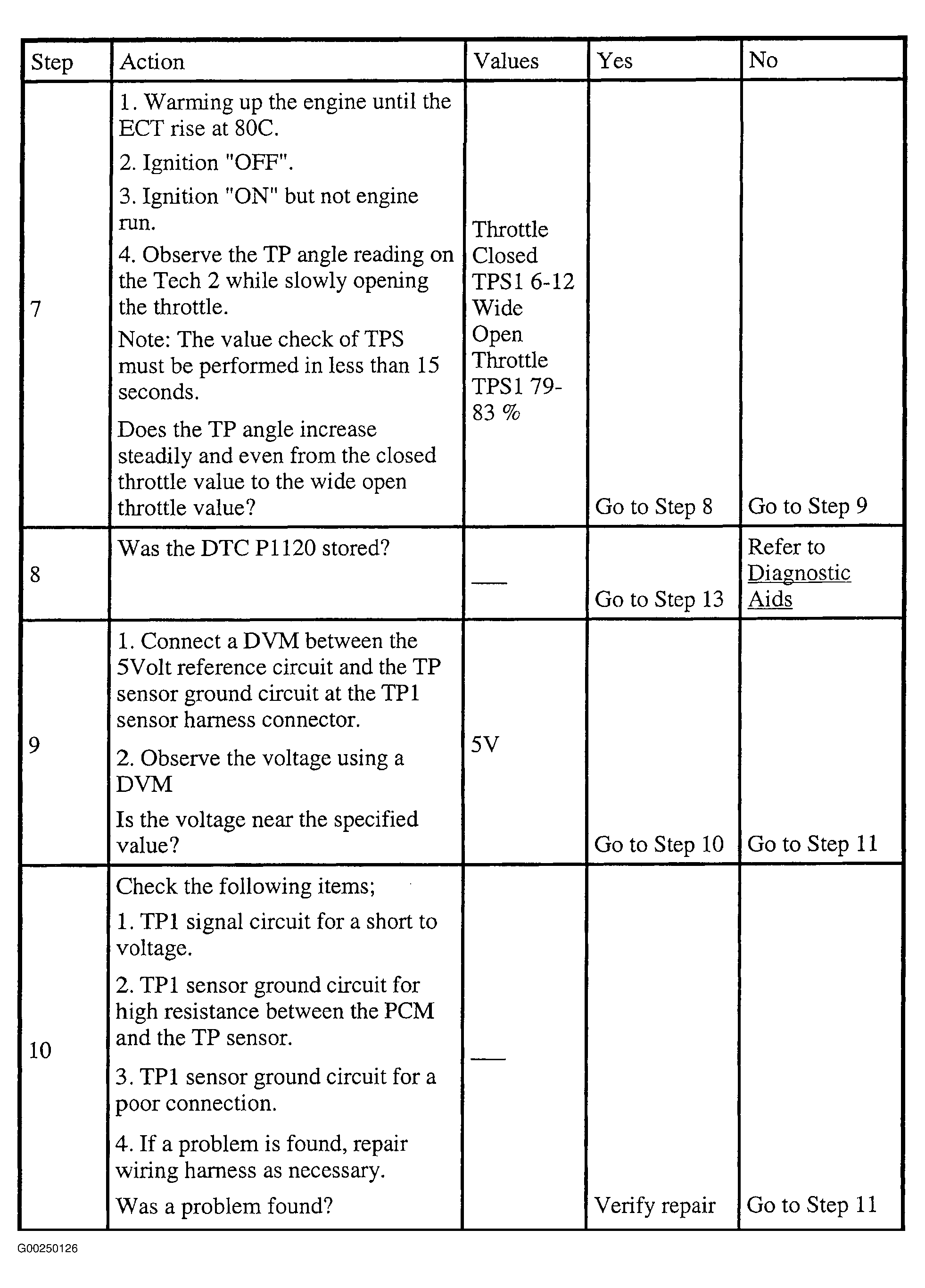

Fig 2: DTC P1120: TP Sensor 1 - Output Abnormal (Steps 7-10)
G00250126Courtesy of ISUZU MOTOR CO.

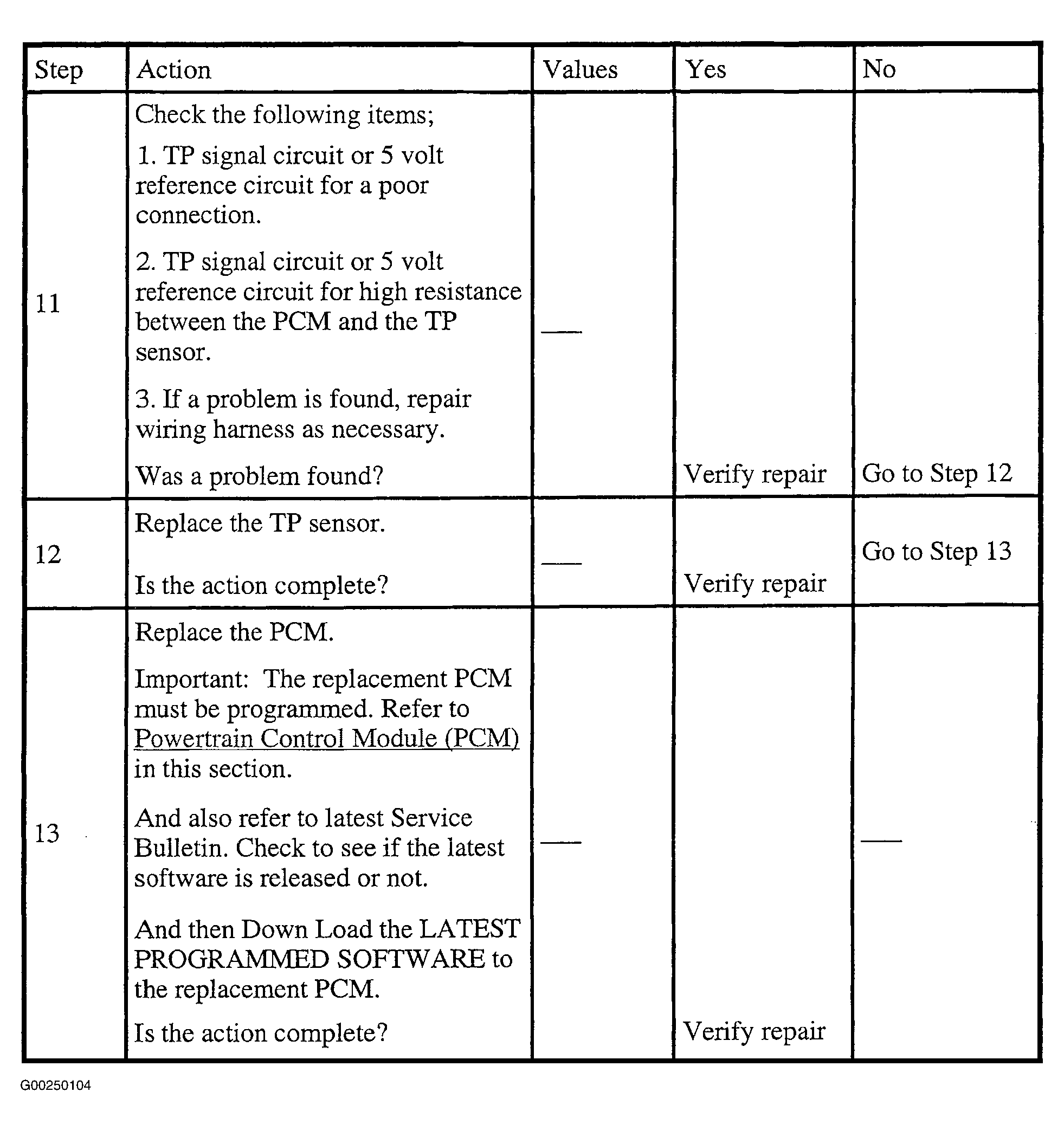

Fig 3: DTC P1120: TP Sensor 1 - Output Abnormal (Steps 11-13)
G00250104Courtesy of ISUZU MOTOR CO.
